9402 Series

Catalog

RELAY RF SPST-NO 500MA 12V

Part	Coil Resistance	Coil Voltage	Operate Time	Contact Form	Coil Current	Mounting Type	Switching Voltage [Max]	Coil Type	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Contact Rating (Current)	Must Operate Voltage	Termination Style

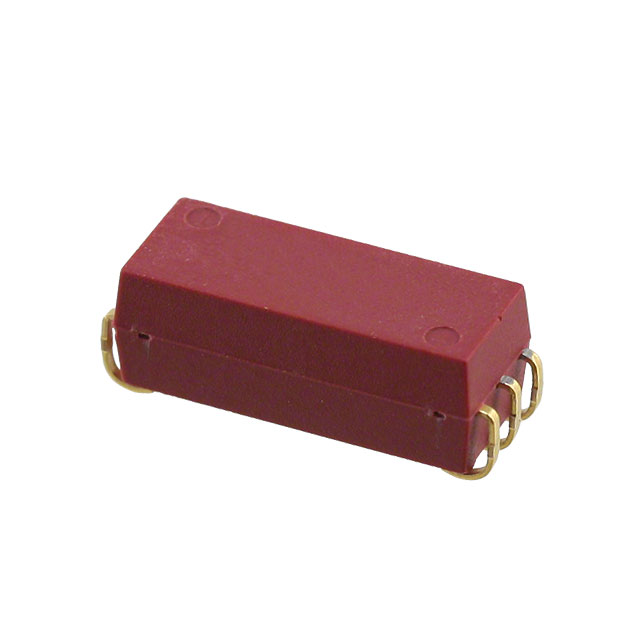

COTO TECHNOLOGY 9402-12-20TR	825 Ohms	12 VDC	0.4 ms	SPST-NO (1 Form A)	14.5 mA	Surface Mount	200 VDC 200 VAC	Non Latching	0.2 ms	85 °C	-20 ░C	1 VDC	0.5 A	9 VDC	J Lead

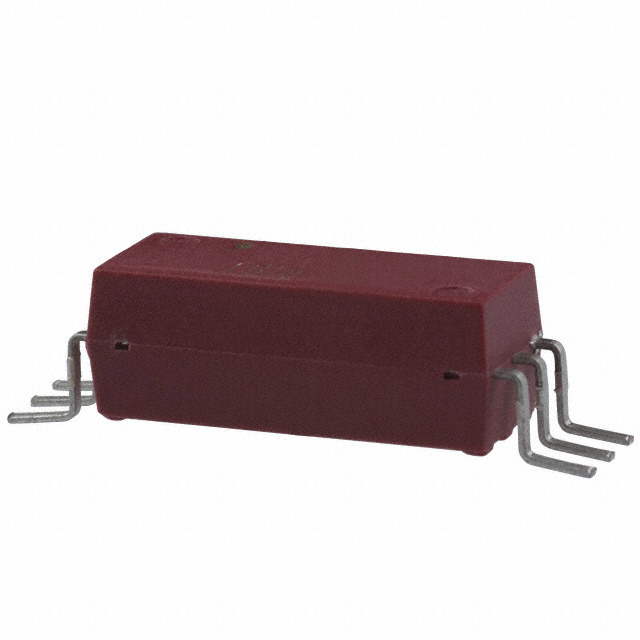

COTO TECHNOLOGY 9402-12-00	825 Ohms	12 VDC	0.4 ms	SPST-NO (1 Form A)	14.5 mA	Surface Mount	200 VDC 200 VAC	Non Latching	0.2 ms	85 °C	-20 ░C	1 VDC	0.5 A	9 VDC	Gull Wing

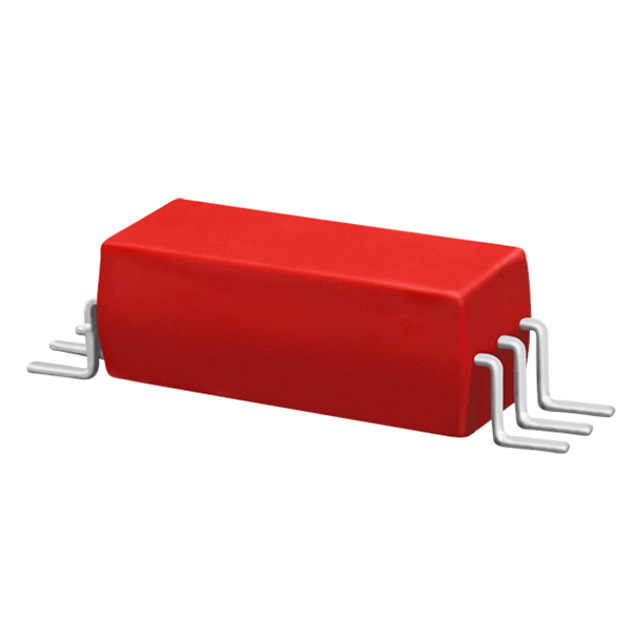

COTO TECHNOLOGY 9402-12-00TR	825 Ohms	12 VDC	0.4 ms	SPST-NO (1 Form A)	14.5 mA	Surface Mount	200 VDC 200 VAC	Non Latching	0.2 ms	85 °C	-20 ░C	1 VDC	0.5 A	9 VDC	Gull Wing
COTO TECHNOLOGY 9402-12-20	825 Ohms	12 VDC	0.4 ms	SPST-NO (1 Form A)	14.5 mA	Surface Mount	200 VDC 200 VAC	Non Latching	0.2 ms	85 °C	-20 ░C	1 VDC	0.5 A	9 VDC	J Lead
