FR02KC16 Series

Catalog

SW ROTARY DIP HEX COMP 0.1A 5V

Part	Body Material	Electrical Life	Length [x]	Length [x]	Mechanical Life	Contact Finish	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Actuator Level	Termination Style	Voltage Rating	Washable	Pitch	Pitch	Circuit	Current Rating (Amps)	Contact Material

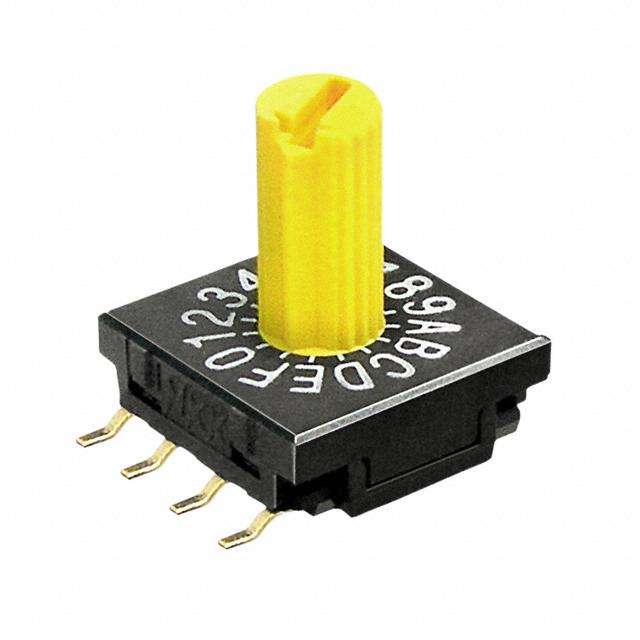

NKK Switches FR02KC16P	Polyamide (PA) Nylon Glass Filled	10000 Cycles	0.394 in	10 mm	10000 Steps	Gold	Rotary with Shaft	85 °C	-25 °C	16	Surface Mount	Raised	Gull Wing	5 V		2.54 mm	0.1 "	Hexadecimal Complement	100 mA	Copper Alloy
NKK Switches FR02KC16P-S	Polyamide (PA) Nylon Glass Filled	10000 Cycles	0.394 in	10 mm	10000 Steps	Gold	Rotary with Shaft	85 °C	-25 °C	16	Surface Mount	Raised	Gull Wing	5 V		2.54 mm	0.1 "	Hexadecimal Complement	100 mA	Copper Alloy
