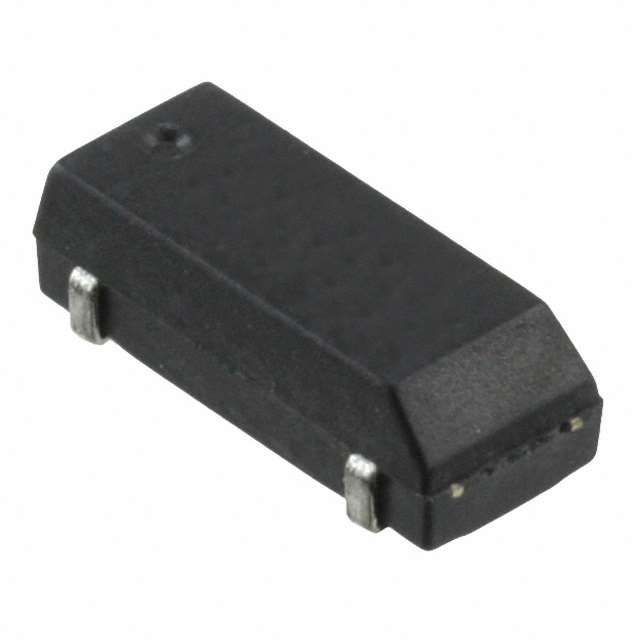

ECX-306X Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTAL 32.7680KHZ 12.5PF SMD
| Part | Type | Frequency | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Package / Case | ESR (Equivalent Series Resistance) | Operating Mode | Frequency Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Load Capacitance | Mounting Type | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | kHz Crystal (Tuning Fork) | 0.032768 MHz | 0.098 in | 2.5 mm | 4-SOJ | 5.5 mm | 50 kOhms | Fundamental | 20 ppm | 85 °C | -40 C | 12.5 pF | Surface Mount | 0.315 in 8 mm | 0.15 in 3.8 mm |
