ERNI MicroSpeed Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MSPEED 50 M SMD M9 B AB VV 137 094 * * E

Part	Connector Type	Number of Rows [custom]	Contact Finish	Number of Positions	Mated Stacking Heights	Pitch	Pitch	Features	Height Above Board [z]	Height Above Board [z]	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Height	Insulation Height	Termination	Fastening Type	Material Flammability Rating	Contact Finish - Mating	Number of Positions Loaded	Height Above Board	Height Above Board	Insulation Height [z]	Style	Insulation Material	Contact Shape	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Voltage Rating	Current Rating (Amps)

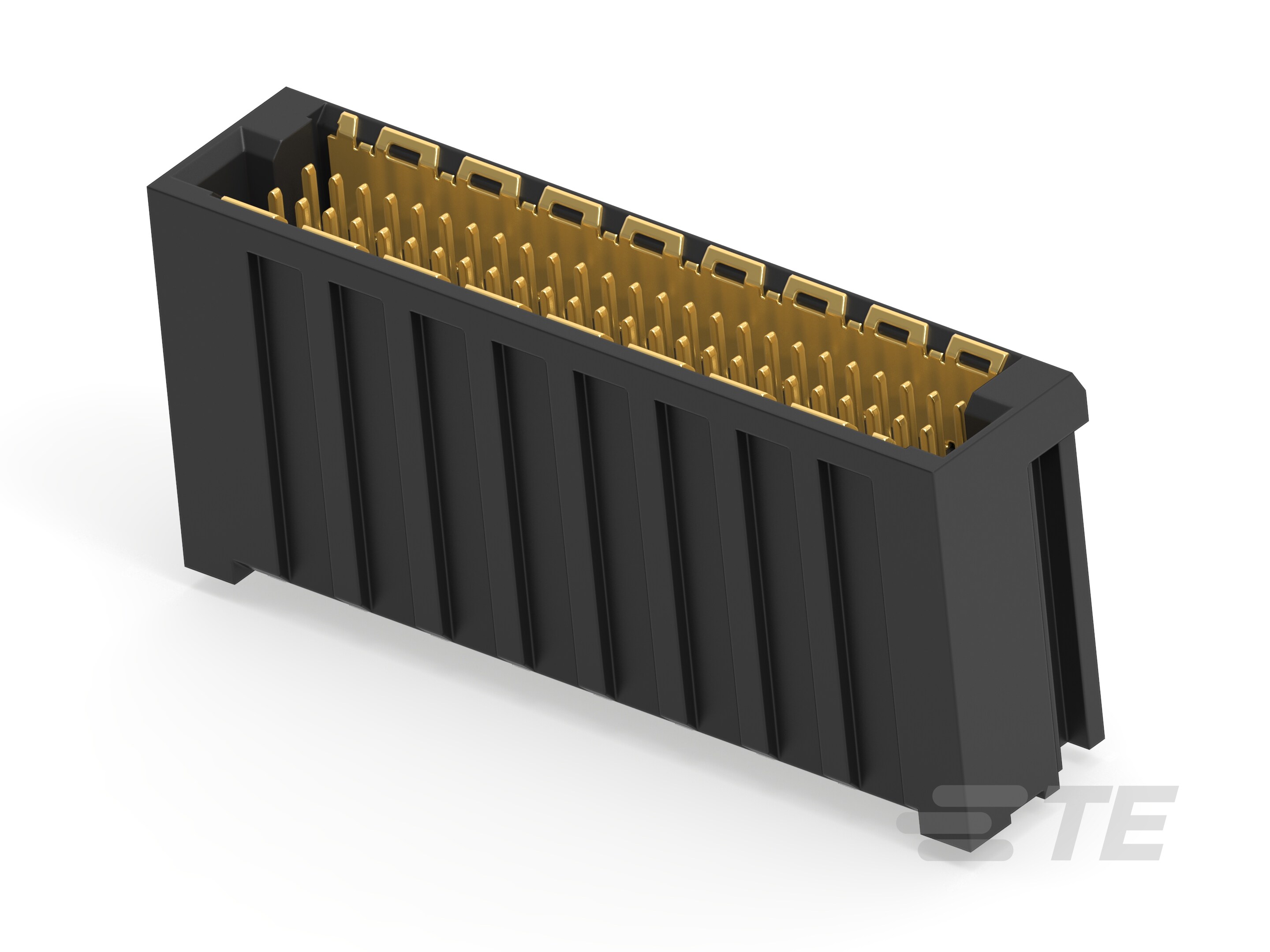

TE Connectivity AMP Connectors 354185-E	Array Male Pins	2	Gold	50	9 mm	1 mm	0.039 in	Board Guide Pick and Place Solder Retention	0.504 in	12.8 mm	Surface Mount
TE Connectivity AMP Connectors 354180-E	Receptacle	2		50				Board Guide Pick and Place			Surface Mount	Black	1 mm	0.039 in	0.059 in	1.5 mm	Tin	-55 C	125 °C	Female Socket	0.409 in	10.4 mm	Solder	Push-Pull	UL94 V-0	Gold	All
TE Connectivity AMP Connectors 224517-E	Array Female Sockets	2	Gold	50		1 mm	0.039 in	Board Guide Ground Bus (Plane) Pick and Place			Surface Mount Through Hole																	9.8 mm	0.386 in

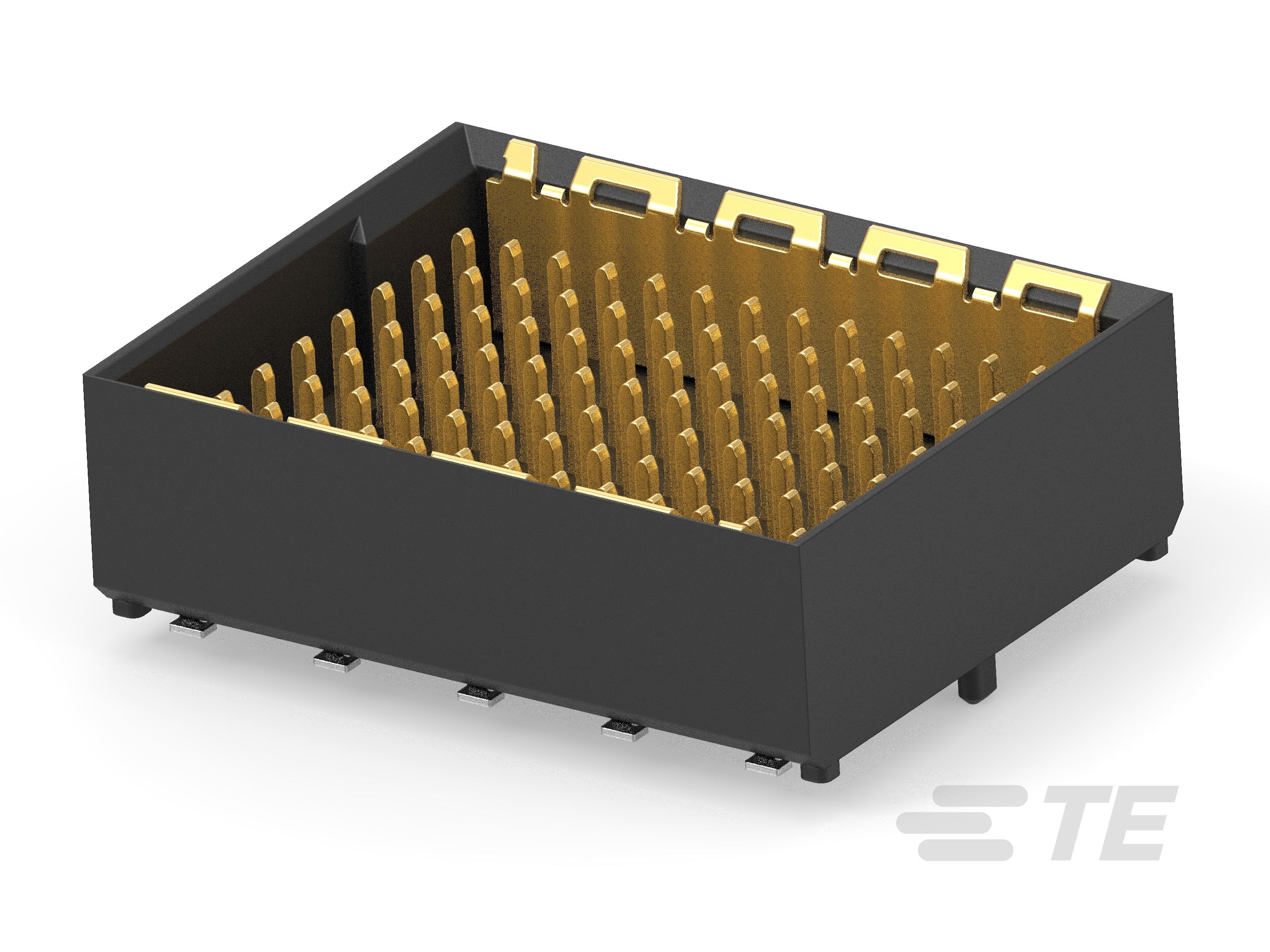

TE Connectivity AMP Connectors 224212-E	Array Male Pins	7	Gold	91		1 mm	0.039 in	Board Guide Ground Bus (Plane) Pick and Place			Surface Mount																	4.8 mm	0.189 in
TE Connectivity AMP Connectors 354178-E	Receptacle	2		50				Board Guide Pick and Place			Surface Mount	Black	1 mm	0.039 in	0.059 in	1.5 mm	Tin	-55 C	125 °C	Female Socket		8.4 mm	Solder	Push-Pull	UL94 V-0	Gold	All			0.331 in
TE Connectivity AMP Connectors 284310-E	Receptacle	2		50				Board Guide			Right Angle Surface Mount	Black	1 mm	0.039 in	0.059 in	1.5 mm	Tin	-55 C	125 °C	Female Socket	0.207 in	5.25 mm	Solder	Push-Pull	UL94 V-0	Gold	All
TE Connectivity AMP Connectors 354188-E	Header	2		50				Board Guide Pick and Place			Surface Mount Through Hole	Black	1 mm	0.039 in	0.059 in	1.5 mm	Tin	-55 C	125 °C	Male Pin	0.543 in	13.8 mm	Solder	Latch Holder	UL94 V-0	Gold	All				Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Square	Shrouded - 4 Wall	2.9 mm	0.114 in	0.047 "	1.2 mm	Copper Alloy

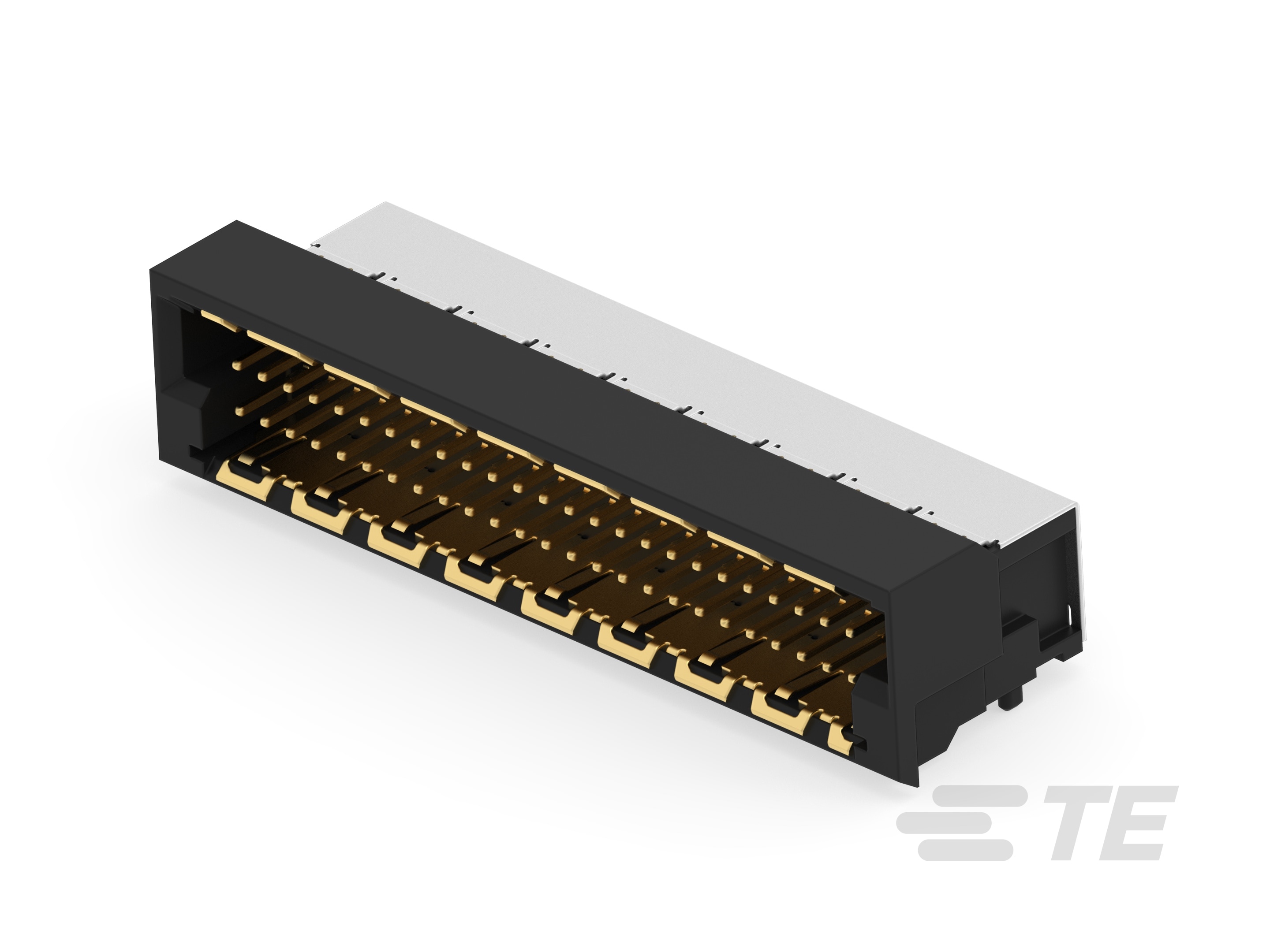

TE Connectivity AMP Connectors 284332-E	Header	2		50				Board Guide			Right Angle Surface Mount	Black	1 mm	0.039 in	0.059 in	1.5 mm	Tin	-55 C	125 °C	Male Pin	0.266 in	6.76 mm	Solder	Latch Holder	UL94 V-0	Gold	All				Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Square	Shrouded - 4 Wall	2.9 mm	0.114 in			Copper Alloy
TE Connectivity AMP Connectors 234098-E	Receptacle	7		133				Board Guide Shielded			Surface Mount	Black	1 mm	0.039 in	0.049 in	1.25 mm	Tin	-55 C	125 °C	Female Socket			Solder	Push-Pull	UL94 V-0	Gold	All													500 VAC	900 mA

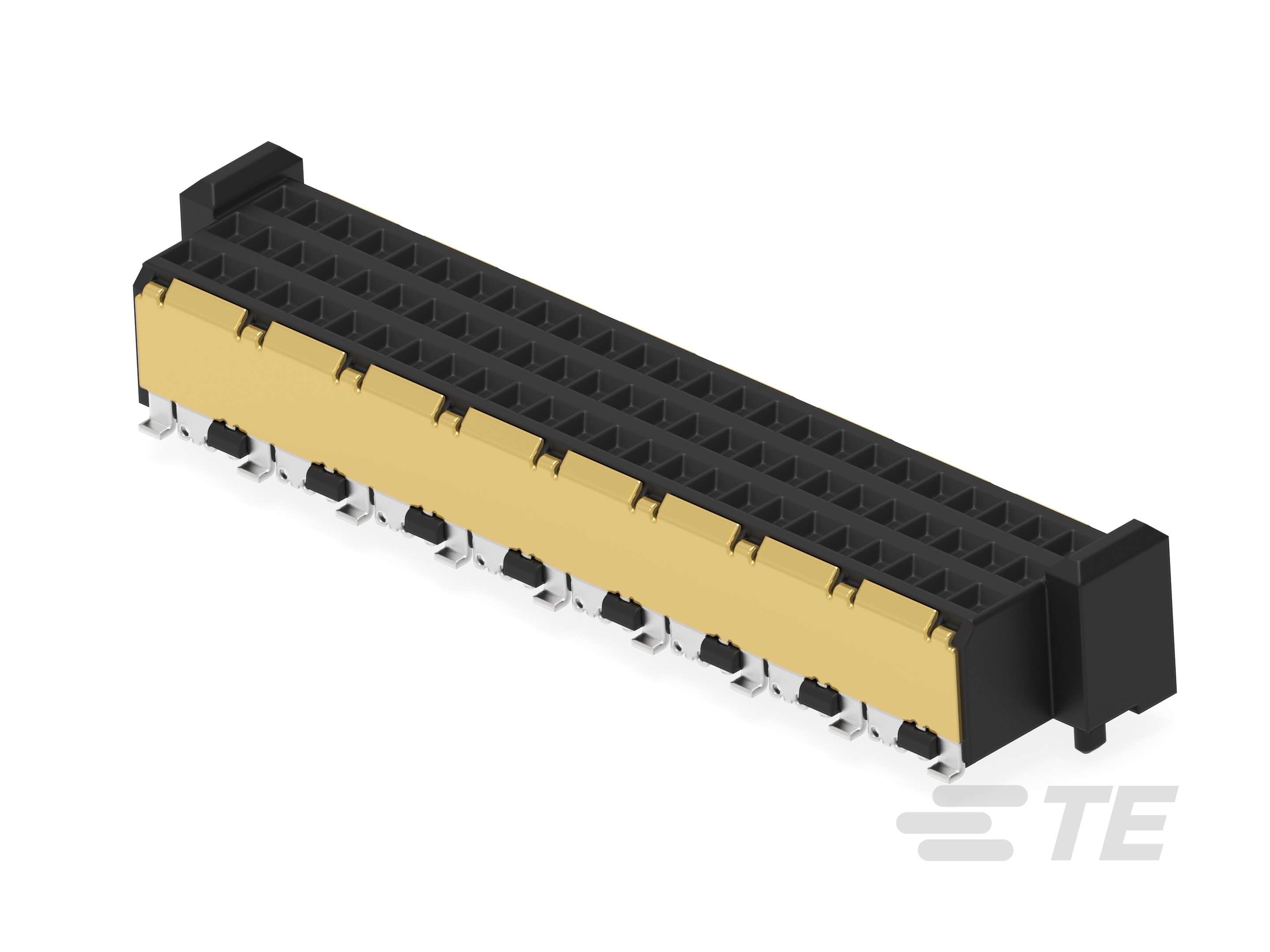

TE Connectivity AMP Connectors 474473-E
