JANTX4 Series

Catalog

HIGH RELIABILITY / JAN - OPTICALLY COUPLED ISOLATOR

Part	Input Type	Voltage - Forward (Vf) (Typ)	Voltage - Isolation	Rise / Fall Time (Typ)	Rise / Fall Time (Typ) [Max]	Output Type	Voltage - Output (Max) [Max]	Number of Channels [custom]	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Current - Output / Channel [custom]	Vce Saturation (Max) [Max]	Current Transfer Ratio (Min)	Current Transfer Ratio (Max)

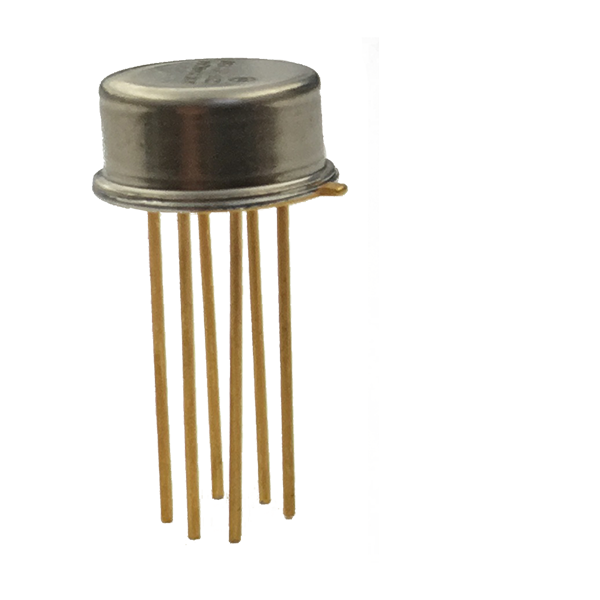

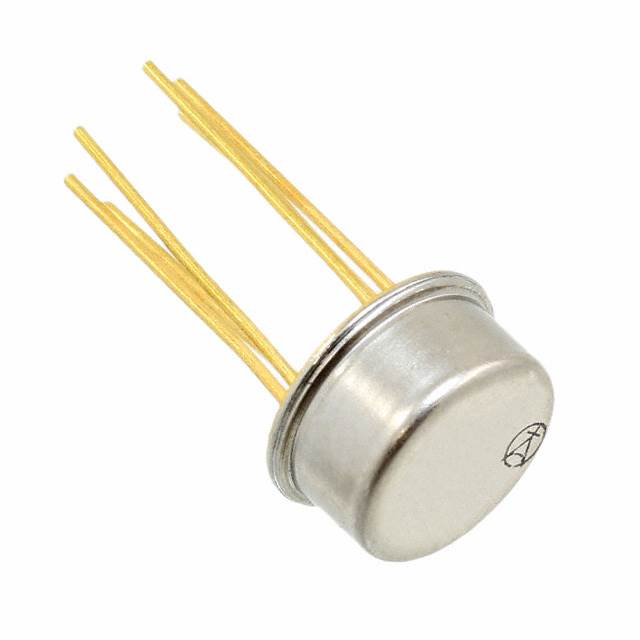

TT Electronics/BI JANTX4N24A	DC	1.5 V	1000 V	20 µs	20 µs	Transistor with Base	40 V	1	Through Hole	TO-78-6	-55 C	125 °C	TO-78-6 Metal Can	40 mA	100 %	50 mA	300 mV
TT Electronics/BI JANTX4N22A	DC	1.5 V	1000 V	20 µs	20 µs	Transistor with Base	40 V	1	Through Hole	TO-78-6	-55 C	125 °C	TO-78-6 Metal Can	40 mA		50 mA	300 mV	25 %
TT Electronics/BI JANTX4N47	DC	1.5 V	1000 V	20 µs	20 µs	Transistor with Base	40 V	1	Through Hole	TO-78-6	-55 C	125 °C	TO-78-6 Metal Can	40 mA		50 mA	300 mV	50 %
TT Electronics/BI JANTX4N49	DC	1.5 V	1000 V	20 µs	20 µs	Transistor with Base	40 V	1	Through Hole	TO-78-6	-55 C	125 °C	TO-78-6 Metal Can	40 mA	200 %	50 mA	300 mV		1000 %
TT Electronics/BI JANTX4N49A	DC	1.5 V	1000 V	20 µs	20 µs	Transistor with Base	40 V	1	Through Hole	TO-78-6	-55 C	125 °C	TO-78-6 Metal Can	40 mA	200 %	50 mA	300 mV		1000 %
TT Electronics/BI JANTX4N22	DC	1.5 V	1000 V	20 µs	20 µs	Transistor with Base	40 V	1	Through Hole	TO-78-6	-55 C	125 °C	TO-78-6 Metal Can	40 mA		50 mA	300 mV	25 %
