IMSA-13065S Series
Manufacturer: IRISO USA Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CONN RCPT HSG 24POS 2.00MM
| Part | Note | Contact Type | Insulation Material | Mounting Type | Contact Termination | Features | Row Spacing | Pitch | Number of Positions | Number of Rows | Connector Type | Operating Temperature (Max) | Operating Temperature (Min) | Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 24 pos | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |

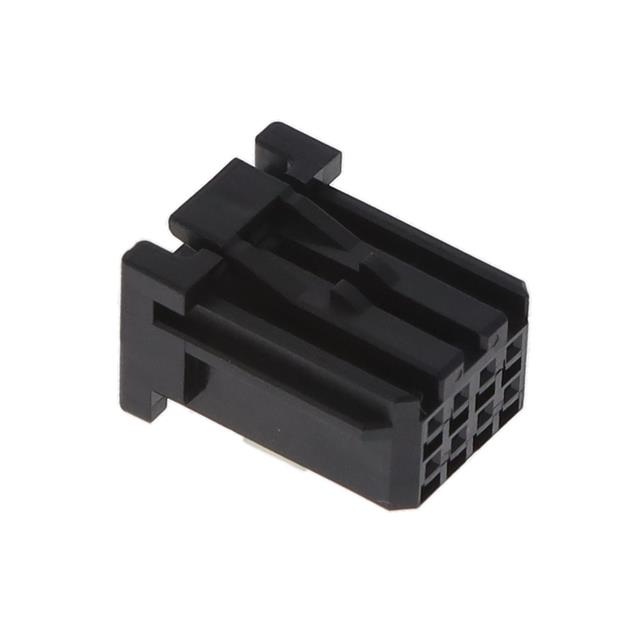

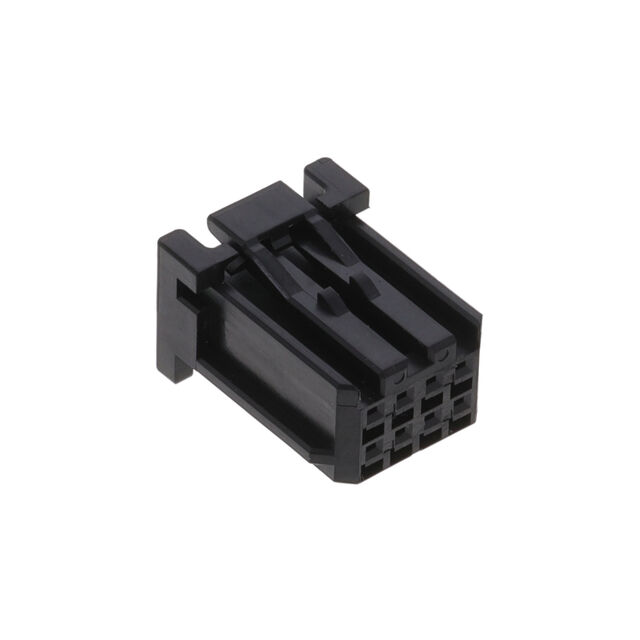

 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 8 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |
 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 20 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |

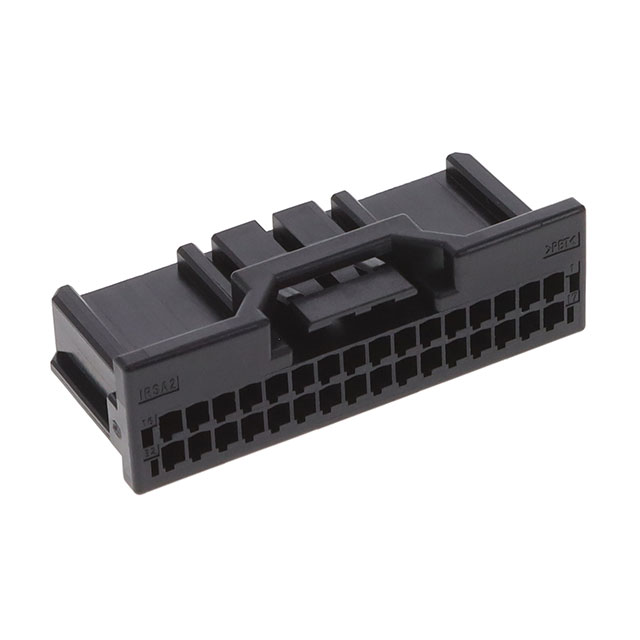

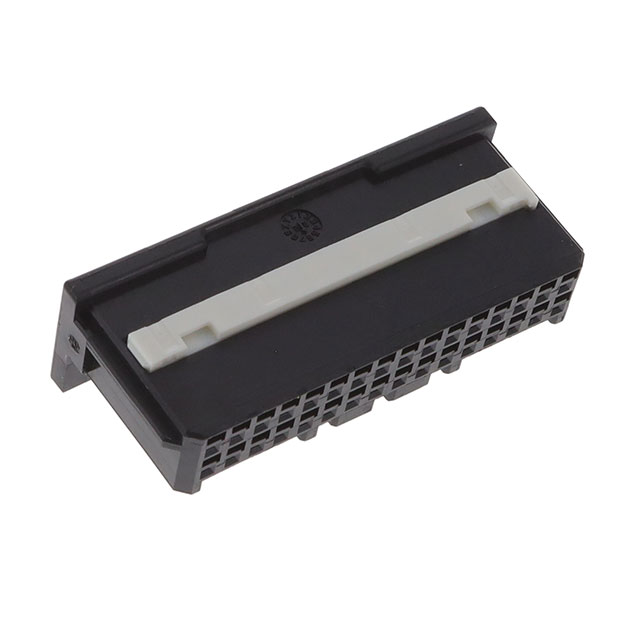

 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 32 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |
 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 32 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |

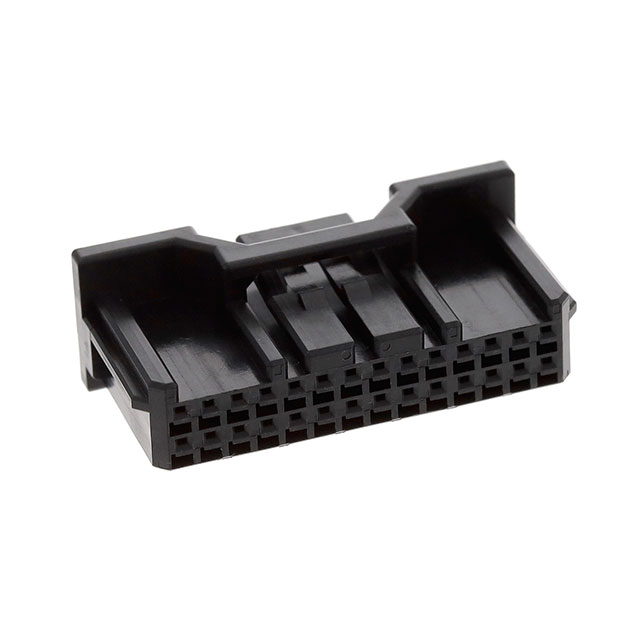

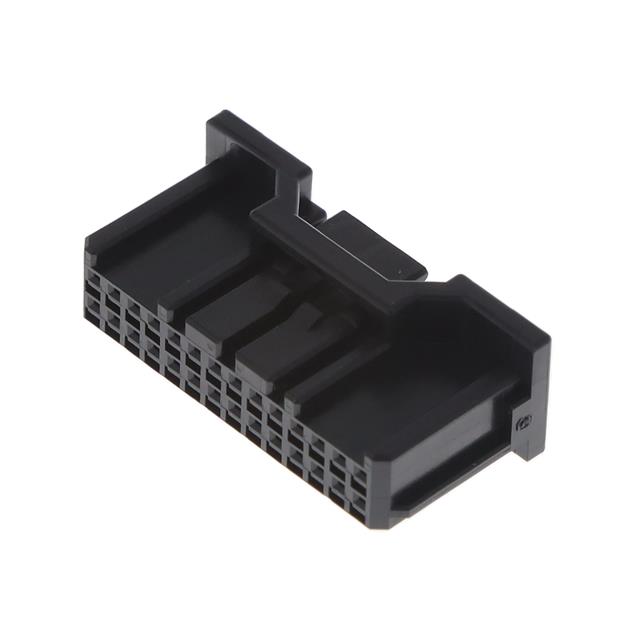

 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 28 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |

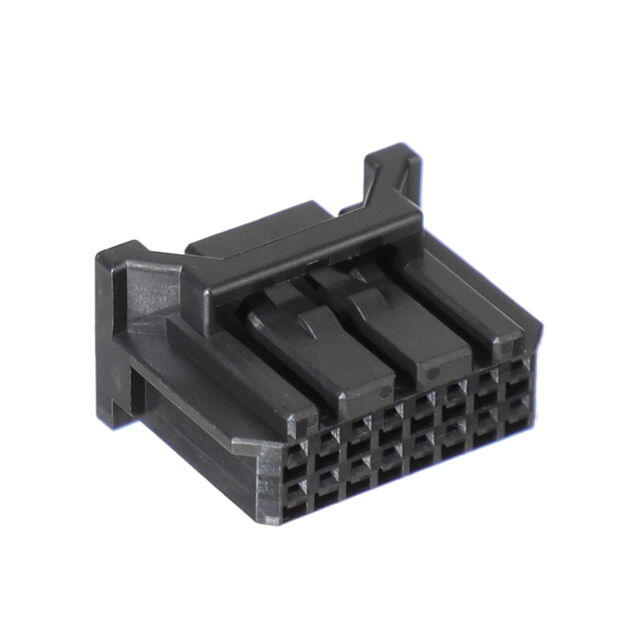

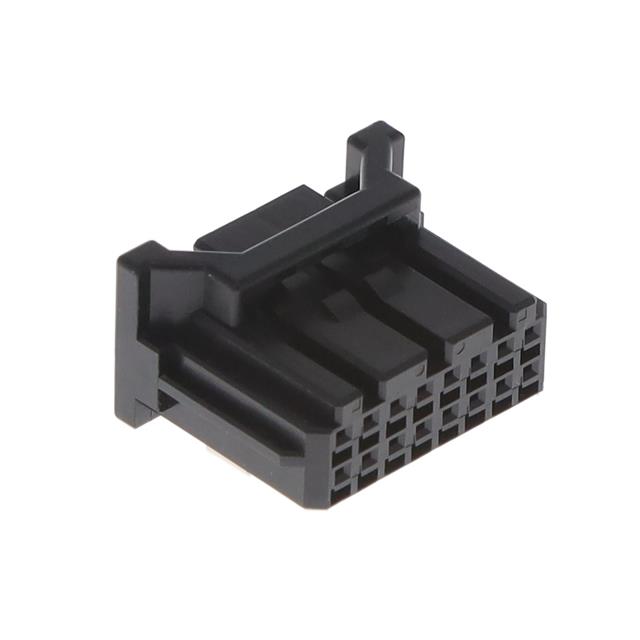

 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 16 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |
 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 16 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |
 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 16 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |
 IRISO USA Inc. | Contacts Not Included | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Crimp | Retainer | 0.098 in | 0.079 in | 28 | 2 | Receptacle | 125 °C | -40 °C | Black | Locking Ramp |
