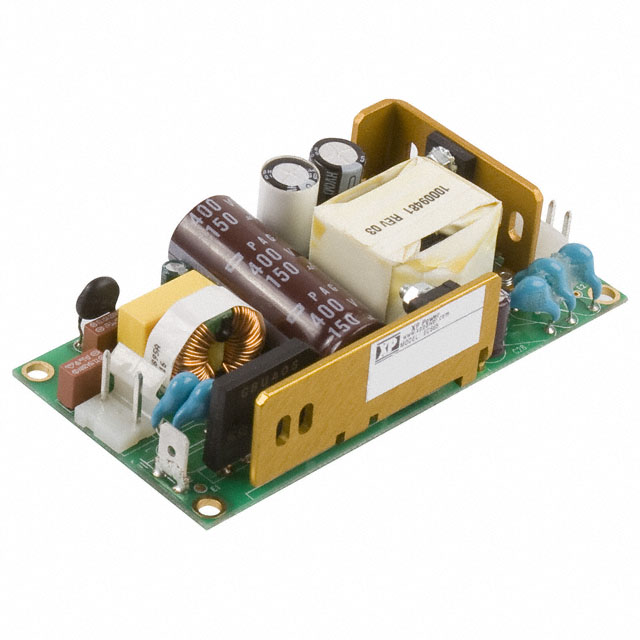

ECS65 Series
Manufacturer: XP Power
Beta
⌘K
POWER SUPPLY, AC-DC, MEDICAL, 15V, 4.3A
| Part | Minimum Load Required | Type | Voltage - Output 1 | Standard Number | Applications | Mounting Type | Features | Current - Output 1 | Number of Outputs | Efficiency | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Open Frame | 15 V | 62368-1 | ITE (Commercial) Medical | Chassis Mount | Adjustable Output DC Input Capable Universal Input | 4.3 A | 1 | 90 % | 4000 V | 70 °C | -20 °C | 80 VAC | 264 VAC | 1.05 in | 26.7 mm | 101.6 mm | 2 in | 50.8 mm | 4 " | CB | |
XP Power | Open Frame | 28 V | 62368-1 | ITE (Commercial) Medical | Chassis Mount | Adjustable Output DC Input Capable Universal Input | 2.3 A | 1 | 90 % | 4000 V | 70 °C | -20 °C | 80 VAC | 264 VAC | 1.05 in | 26.7 mm | 101.6 mm | 2 in | 50.8 mm | 4 " | CB | |
XP Power | Open Frame | 48 V | 62368-1 | ITE (Commercial) Medical | Chassis Mount | Adjustable Output DC Input Capable Universal Input | 1.4 A | 1 | 90 % | 4000 V | 70 °C | -20 °C | 80 VAC | 264 VAC | 1.05 in | 26.7 mm | 101.6 mm | 2 in | 50.8 mm | 4 " | CB |
