AD5934 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
250 KSPS, 12-BIT IMPEDANCE CONVERTER, NETWORK ANALYZER
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Package Width | Package Name | Package Length | Resolution (Bits) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Mounting Type | Master fclk | Supplied Contents | Contents | Primary Attributes | Utilized IC / Part | Embedded | Type | Function | Interconnect System | Platform |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 125 °C | -40 °C | 5.3 mm | 16-SSOP | 0.209 in | 12 b | 5.5 V | 2.7 V | Surface Mount | 16.776 MHz | |||||||||
 Analog Devices Inc./Maxim Integrated | Board(s) Cable(s) | Board Cable | 12-Bit DAC 24-Bit Tuning Word Width | AD5934 | No | Timing | Direct Digital Synthesis (DDS) | ||||||||||||

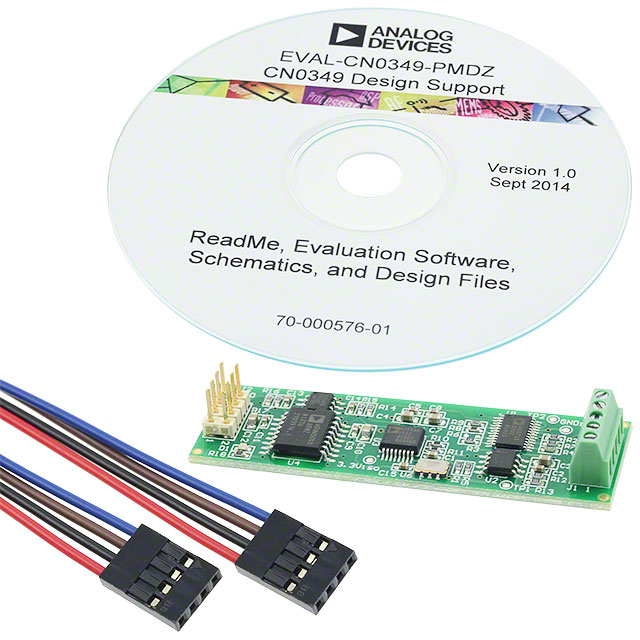

 Analog Devices Inc./Maxim Integrated | Board | AD5934 AD8606 ADG715 ADuM1250 ADuM5000 | Data Acquisition | Sensor Signal Conditioner | Pmod | Pmod™ | |||||||||||||
 Analog Devices Inc./Maxim Integrated | 125 °C | -40 °C | 5.3 mm | 16-SSOP | 0.209 in | 12 b | 5.5 V | 2.7 V | Surface Mount | 16.776 MHz |
