72RCM500 Series

Catalog

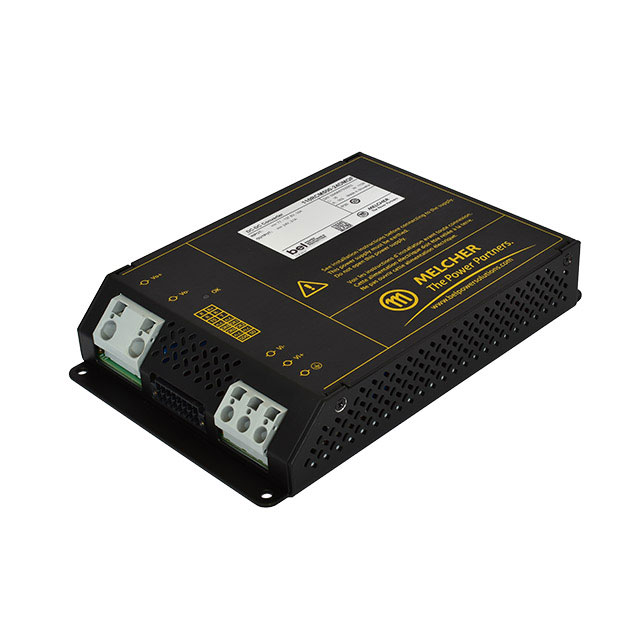

DC/DC CONVERTER 24V 504W

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Efficiency	Mounting Type	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Outputs
Bel Fuse Inc. 72RCM500-24	5.55 "	40 mm	8.23 in	141 mm	1.57 "	209 mm	4.2 kV	24 V	504 W	21 A	CE NEMKO	96 %	Chassis Mount	ITE (Commercial) Railway	90 V	50.4 V	70 °C	-40 C	Enclosed	1
Bel Fuse Inc. 72RCM500-24DMQF	5.55 "	40 mm	8.23 in	141 mm	1.57 "	209 mm	4.2 kV	24 V	504 W	21 A	CE NEMKO	96 %	Chassis Mount	ITE (Commercial) Railway	90 V	50.4 V	70 °C	-40 C	Enclosed	1
