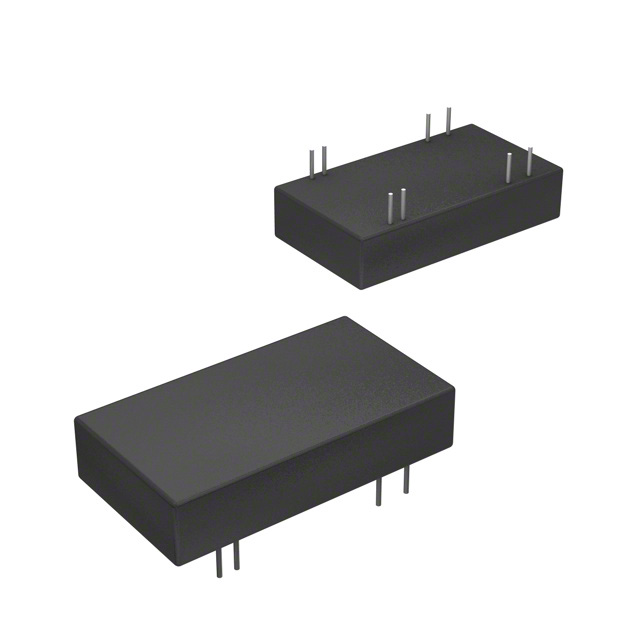

RW-D Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W DC/DC MIN 3KV REG 2:1 18-36VIN +/-9OU

Part	Voltage - Input (Max) [Max]	Features	Current - Output (Max)	Type	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Applications	Voltage - Output 2	Number of Outputs	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Output 1	Efficiency	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]

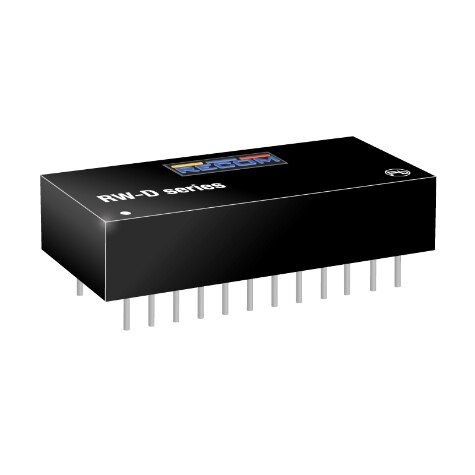

Recom Power RW-2409D	36 V	SCP	167 mA	Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	18 V	ITE (Commercial) Medical	-9 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	9 V	81 %
Recom Power RW-4809D	72 V	SCP	167 mA	Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	36 V	ITE (Commercial) Medical	-9 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	9 V
Recom Power RW-0515D	9 V	SCP		Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	4.5 V	ITE (Commercial) Medical	-15 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	15 V	75 %	100 mA	100 mA
Recom Power RW-0512D	9 V	SCP	125 mA	Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	4.5 V	ITE (Commercial) Medical	-12 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	12 V	74 %
Recom Power RW-0505D	9 V	SCP		Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	4.5 V	ITE (Commercial) Medical	-5 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	5 V	71 %			0.3 A
Recom Power RW-4812D	72 V	SCP	125 mA	Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	36 V	ITE (Commercial) Medical	-12 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	12 V	84 %
Recom Power RW-1215D	18 V	SCP		Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	9 V	ITE (Commercial) Medical	-15 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	15 V	83 %	100 mA	100 mA
Recom Power RW-2405D	36 V	SCP		Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	18 V	ITE (Commercial) Medical	-5 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	5 V	78 %			0.3 A

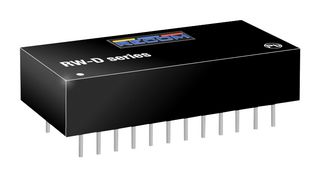

Recom Power RW-0509D	9 V	SCP	167 mA	Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	4.5 V	ITE (Commercial) Medical	-9 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	9 V	73 %
Recom Power RW-2415D	36 V	SCP		Isolated Module	Through Hole	0.69 "	17.5 mm	32 mm	1.26 in	7 mm	0.28 "	18 V	ITE (Commercial) Medical	-15 V	2	3 W	3000 V	85 °C	-40 C	24-DIP Module 8 Leads	15 V	85 %	100 mA	100 mA
