CFR Series

Manufacturer: YAGEO

Catalog

Catalog

RES CARBON FILM 100 OHM 5% 0.167W -500PPM/°C TO 350PPM/°C AXL TAPE AND BOX

...

Part	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Package / Case	Tolerance	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Resistance	Supplier Device Package	Features	Number of Terminations [custom]	Composition	Size / Dimension [y]	Temperature Coefficient	Size / Dimension [z]	Size / Dimension [z]
YAGEO CFR-12JT-52-100R	0.134 in	0.075 in	3.4 mm	1.9 mm	Axial	5 %	0.16666666666666666 W	0.167 W	155 C	-55 C	-500 ppm/°C	350 ppm/°C	100 Ohms	Axial	Automotive AEC-Q200	2	Carbon Film

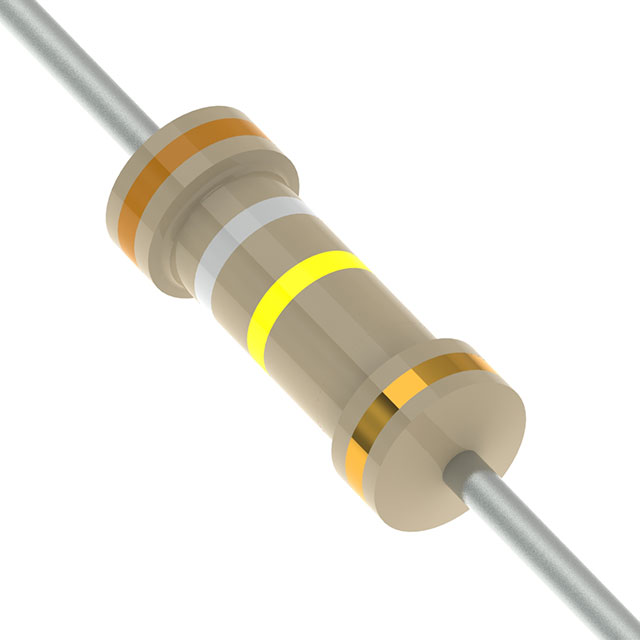

YAGEO CFR-25JB-52-390K	0.248 in	0.094 in	6.3 mm	2.4 mm	Axial	5 %	0.25 W	0.25 W	155 C	-55 C	-700 ppm/°C	0 ppm/°C	390 kOhms	Axial	Automotive AEC-Q200	2	Carbon Film
YAGEO CFR-50JB-52-1R	0.354 in	0.13 in	3.3 mm		Axial	5 %	0.5 W	0.5 W	155 C	-55 C	-500 ppm/°C	350 ppm/°C	1 Ohms	Axial	Automotive AEC-Q200	2	Carbon Film	9 mm
YAGEO CFR-25JB-52-220K	0.248 in	0.094 in	6.3 mm	2.4 mm	Axial	5 %	0.25 W	0.25 W	155 C	-55 C	-700 ppm/°C	0 ppm/°C	220000 Ohms	Axial	Automotive AEC-Q200	2	Carbon Film
YAGEO CFR-12JB-52-1M	0.134 in	0.075 in	3.4 mm	1.9 mm	Axial	5 %	0.16666666666666666 W	0.167 W	155 C	-55 C	-1500 ppm/°C	0 ppm/°C	1 MOhms	Axial	Automotive AEC-Q200	2	Carbon Film

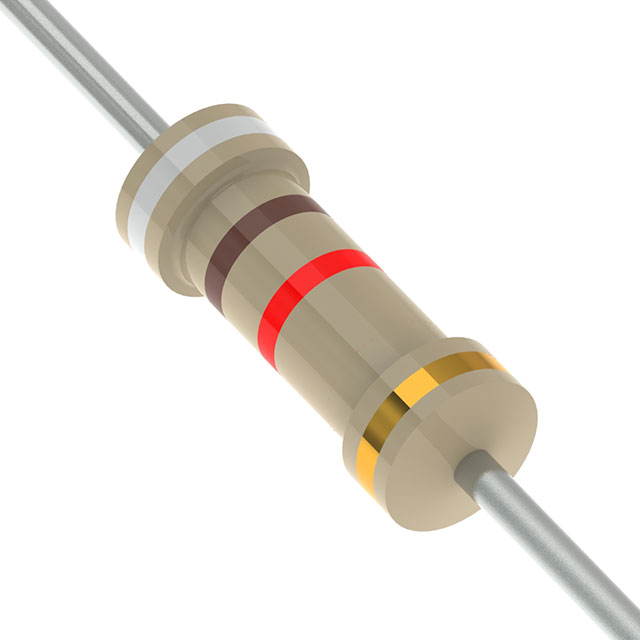

YAGEO CFR-12JT-52-9K1	0.134 in	0.075 in	3.4 mm	1.9 mm	Axial	5 %	0.16666666666666666 W	0.167 W	155 C	-55 C	-500 ppm/°C	350 ppm/°C	9.1 kOhms	Axial	Automotive AEC-Q200	2	Carbon Film
YAGEO CFR-25JT-52-2K7	0.248 in	0.094 in	6.3 mm	2.4 mm	Axial	5 %	0.25 W	0.25 W	155 C	-55 C	-500 ppm/°C	350 ppm/°C	2.7 kOhms	Axial	Automotive AEC-Q200	2	Carbon Film
YAGEO CFR-50JB-52-3K3	0.354 in	0.13 in	3.3 mm		Axial	5 %	0.5 W	0.5 W	155 C	-55 C	-500 ppm/°C	350 ppm/°C	3300 Ohms	Axial	Automotive AEC-Q200	2	Carbon Film	9 mm
YAGEO CFR-12JR-52-300R	0.134 in	0.075 in	3.4 mm	1.9 mm	Axial	5 %	0.16666666666666666 W	0.167 W	155 C	-55 C	-500 ppm/°C	350 ppm/°C	300 Ohms	Axial	Automotive AEC-Q200	2	Carbon Film

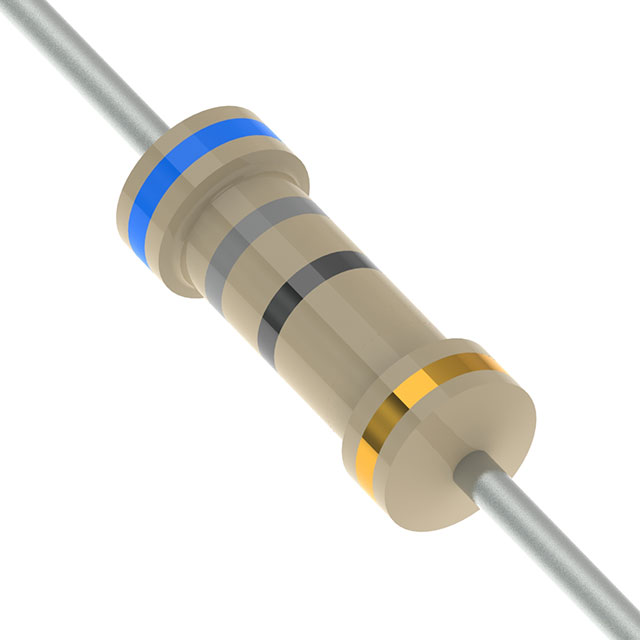

YAGEO CFR100JT-52-68R		0.177 "		4.5 mm	Axial	5 %		1 W	155 C	-55 C			68 Ohms	Axial	Automotive AEC-Q200	2	Carbon Film		350 ppm/°C	11.5 mm	0.453 "
