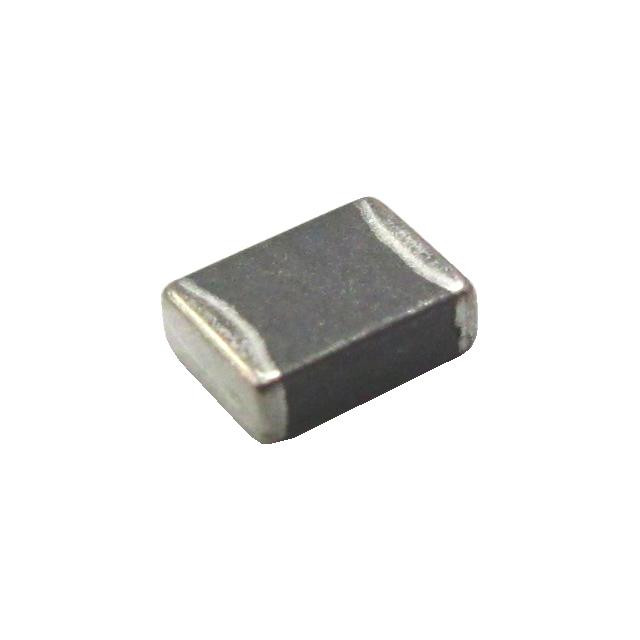

AKPE Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPE MULTILAYER
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Current - Saturation (Isat) | Current Rating (Amps) | Shielding | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Supplier Device Package | DC Resistance (DCR) | Tolerance | Package / Case | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Material - Core | Mounting Type | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 3 MHz | 1.4 A | 1.8 A | Shielded | Multilayer | 0.039 in | 1 mm | 0805 | 100 mOhm | 30 % | 0805 | 1 µH | 125 °C | -40 C | Ferrite | Surface Mount | AEC-Q200 |
