1478769 Series

Catalog

CONNECTOR ACCESSORIES GLAND STRAIGHT

Part	Ingress Protection	Material	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
TE Connectivity AMP Connectors 1478769-2	IP68 - Dust Tight Waterproof	Polyamide (PA) Nylon	Black	Cable Gland Anti-Vibration	0.197 in	5 mm	16 mm	0.63 in	Locknut	10 mm	0.394 in	0.394 in	10 mm

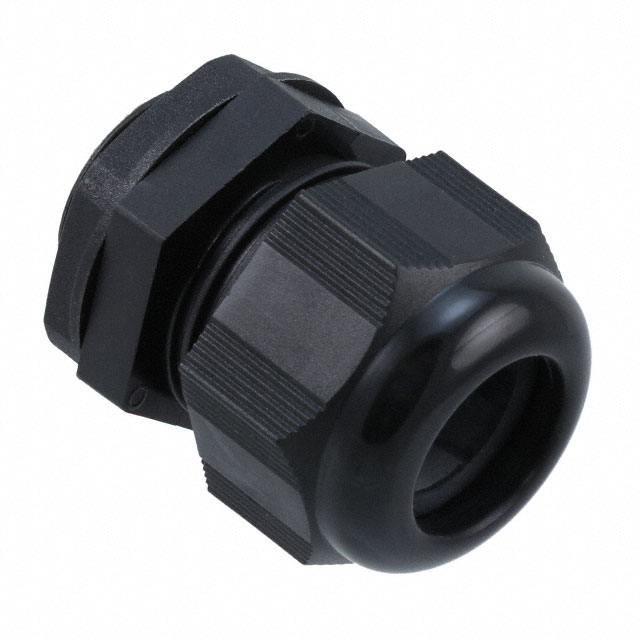

TE Connectivity AMP Connectors 1478769-5	IP68 - Dust Tight Waterproof	Polyamide (PA) Nylon	Black	Cable Gland Anti-Vibration			25 mm	0.984 in	Locknut	18.01 mm	0.709 in	0.394 in	10 mm	13 mm	0.512 in

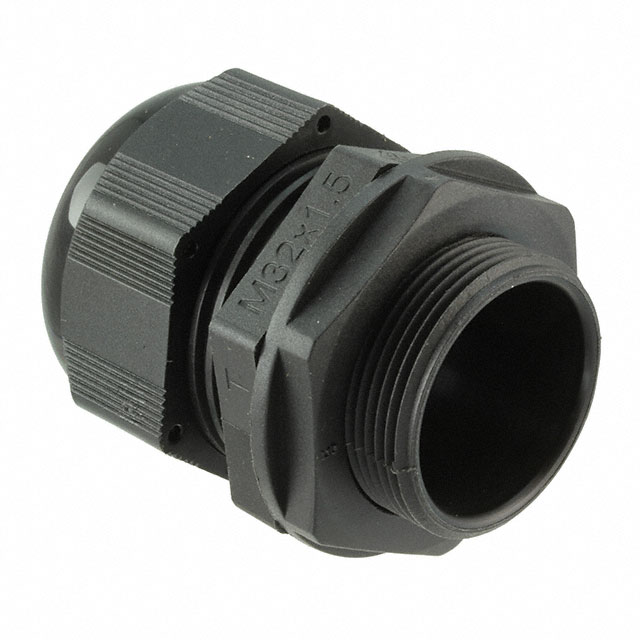

TE Connectivity AMP Connectors 1478769-6	IP68 - Dust Tight Waterproof	Polyamide (PA) Nylon	Black	Cable Gland Anti-Vibration			32 mm	1.26 in	Locknut	25 mm	0.984 in	0.709 in	18.01 mm	18.01 mm	0.709 "
