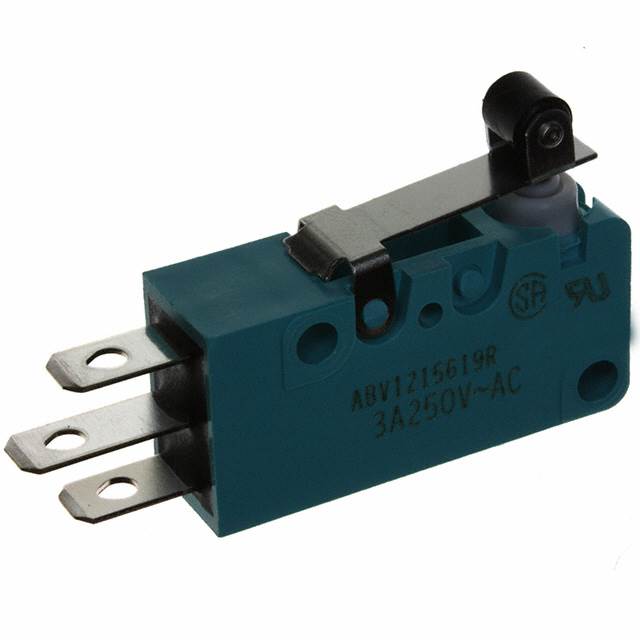

ABV1215619 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SWITCH SNAP ACTION SPDT 3A 250V
| Part | Switch Function | Operating Position | Operating Position | Current Rating (Amps) | Ingress Protection | Pretravel | Pretravel | Mechanical Life | Actuator Type | Circuit | Voltage Rating - AC | Overtravel [custom] | Overtravel [custom] | Differential Travel | Differential Travel | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Termination Style | Termination Style | Mounting Type | Release Force | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | On-Mom | 20.7 mm | 0.815 in | 3 A | IP50 - Dust Protected | 0.063 in | 1.6 mm | 5000000 Cycles | Lever Roller | SPDT | 250 V | 0.03 " | 0.76 mm | 0.5 mm | 0.02 in | 100000 Cycles | 85 °C | -40 C | 4.7 mm | 0.187 in | Solder Quick Connect | Chassis Mount | 60 gf | 320 gf |
