1415542 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

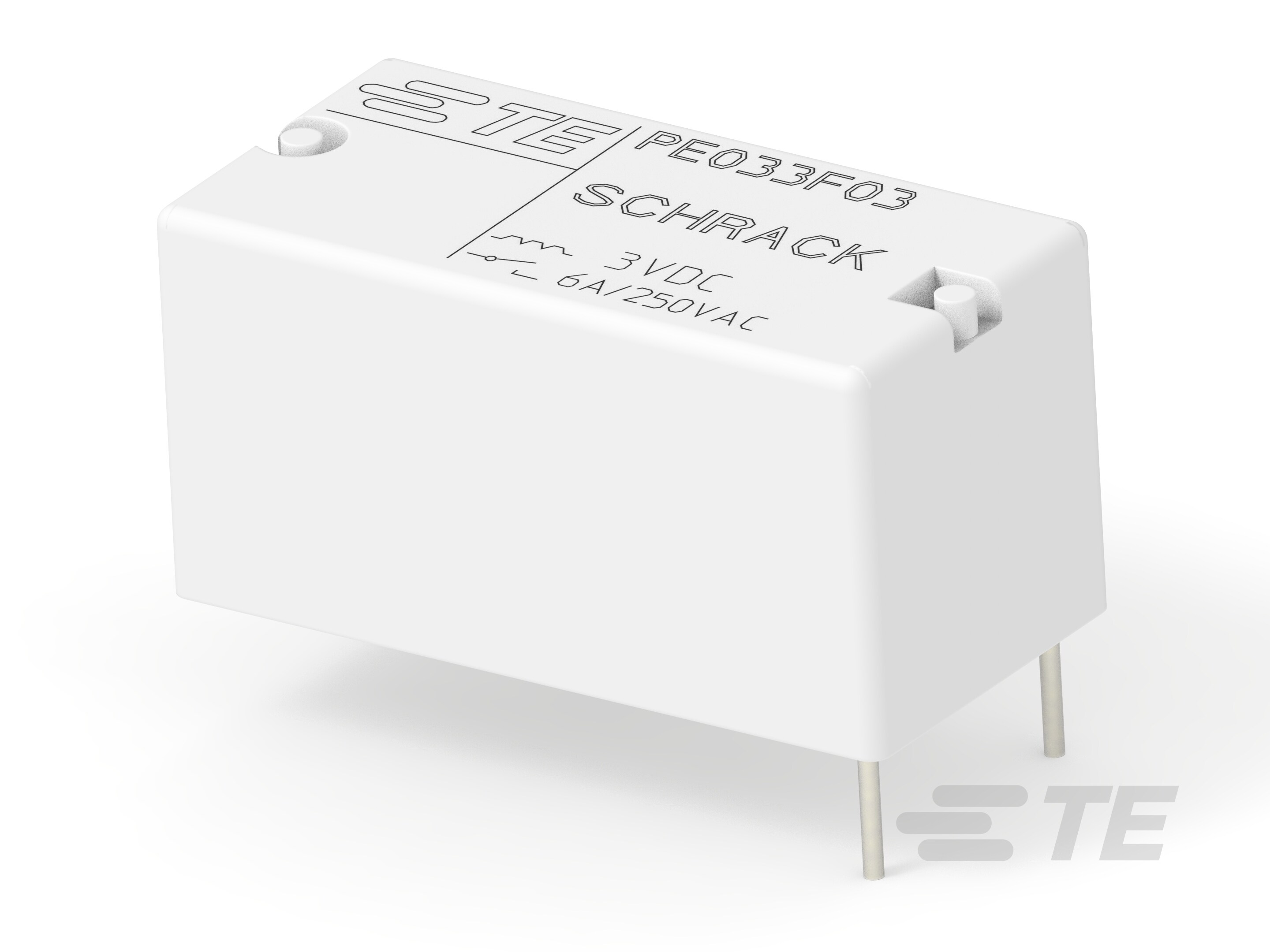

PE033F03
| Part | Coil Resistance | Load - Max Switching [Max] | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Coil Current | Contact Rating (Current) | Relay Type | Release Time | Coil Type | Termination Style | Must Operate Voltage | Operate Time | Mounting Type | Contact Material | Approval Agency | Seal Rating | Coil Insulation | Must Release Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 45 Ohms | 2000 VA | SPST-NO (1 Form A) | 85 °C | -40 C | 400 VAC | 66.7 mA | 5 A | General Purpose | 8 ms | Non Latching | PC Pin | 2.25 VDC | 8 ms | Through Hole | Silver Tin Oxide (AgSnO) | cURus VDE | ||||
 TE Connectivity AMP Connectors | 4000 VA | SPDT (1 Form C) | 85 °C | -40 C | 400 VAC | 10 A | General Purpose | 8 ms | Non Latching | PC Pin | 13.5 VDC | 10 ms | Through Hole | Gold (Au) Silver Nickel (AgNi) | CQC CSA cURus VDE | Sealed - Flux Protection | Class F | 1.8 VDC | 18 VDC | ||
TE Connectivity AMP Connectors | 110 Ohms | 7040 VA | DPDT (2 Form C) | 440 VAC | 109 mA | 16 A | General Purpose | 10 ms | Non Latching | Quick Connect - 0.250" (6.3mm) | 15 ms | Socketable | Silver Nickel (AgNi) | cURus VDE | 12 VDC |
