3010-16 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER R/A 16POS 2.54MM

Part	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post	Contact Type	Insulation Height [z]	Insulation Height	Style	Fastening Type	Material Flammability Rating	Mounting Type	Features	Number of Positions	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Material	Shrouding	Number of Rows [custom]	Termination	Number of Positions Loaded	Insulation Material	Connector Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Insulation Height	Contact Finish Thickness - Mating	Row Spacing	Row Spacing	Contact Finish	Pitch	Pitch	Cable Termination	Contact Finish Thickness
CNC Tech 3010-16-002-12-99	Square	-40 C	105 ░C	0.134 "	3.4 mm	Male Pin	0.327 "	8.3 mm	Board to Cable/Wire	Latch Lock/Eject Hooks	UL94 V-0	Right Angle Through Hole	Keying Slot	16	2.03 µm	80 µin	Brass	Shrouded - 4 Wall	2	Solder	All	Polybutylene Terephthalate (PBT)	Header	0.1 "	2.54 mm	0.1 in	2.54 mm

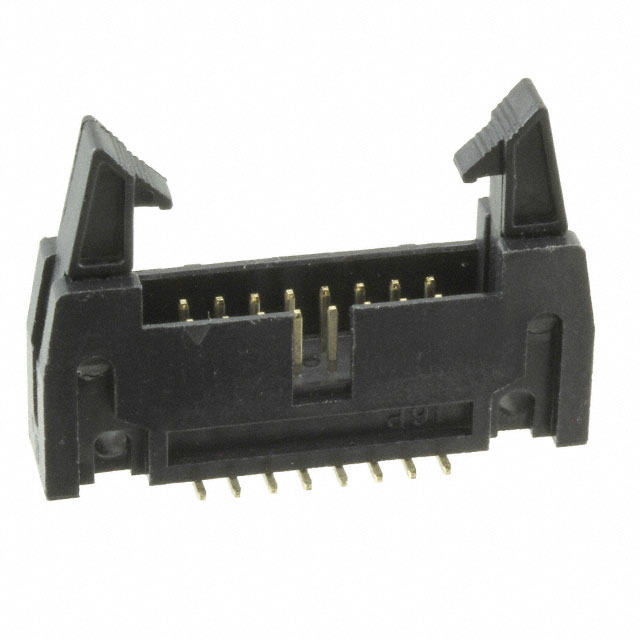

CNC Tech 3010-16-001-13-00	Square	-40 C	105 ░C	0.134 "	3.4 mm	Male Pin		17 mm	Board to Cable/Wire	Latch Lock/Eject Hooks Long	UL94 V-0	Through Hole	Keying Slot	16			Brass	Shrouded - 4 Wall	2	Solder	All	Polybutylene Terephthalate (PBT)	Header	0.1 "	2.54 mm	0.1 in	2.54 mm	Gold	250 VAC	3 A	0.669 in	Flash
CNC Tech 3010-16-002-11-99	Square	-40 C	105 ░C	0.134 "	3.4 mm	Male Pin		8.2 mm	Board to Cable/Wire	Push-Pull	UL94 V-0	Right Angle Through Hole	Keying Slot	16	2.03 µm	80 µin	Brass	Shrouded - 4 Wall	2	Solder	All	Polybutylene Terephthalate (PBT)	Header	0.1 "	2.54 mm	0.1 in	2.54 mm				0.323 in
CNC Tech 3010-16-002-12-00	Square	-40 C	105 ░C	0.134 "	3.4 mm	Male Pin	0.327 "	8.3 mm	Board to Cable/Wire	Latch Lock/Eject Hooks	UL94 V-0	Right Angle Through Hole	Keying Slot	16			Brass	Shrouded - 4 Wall	2	Solder	All	Polybutylene Terephthalate (PBT)	Header	0.1 "	2.54 mm	0.1 in	2.54 mm	Gold	250 VAC	3 A		Flash

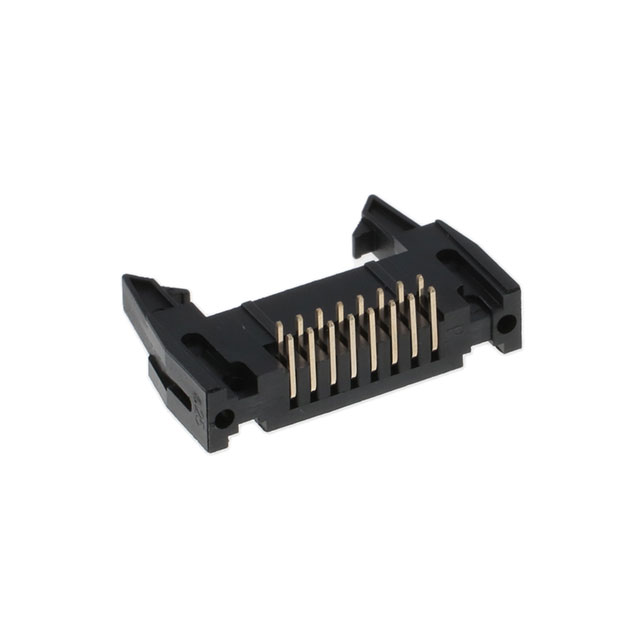

CNC Tech 3010-16-002-13-00	Square	-40 C	105 ░C	0.134 "	3.4 mm	Male Pin	0.327 "	8.3 mm	Board to Cable/Wire	Latch Lock/Eject Hooks Long	UL94 V-0	Right Angle Through Hole	Keying Slot	16			Brass	Shrouded - 4 Wall	2	Solder	All	Polybutylene Terephthalate (PBT)	Header	0.1 "	2.54 mm	0.1 in	2.54 mm	Gold	250 VAC	3 A		Flash
CNC Tech 3010-16-003-13-00	Square	-40 C	105 ░C			Male Pin		17 mm	Board to Cable/Wire	Latch Lock/Eject Hooks Long	UL94 V-0	Surface Mount	Keying Slot	16			Brass	Shrouded - 4 Wall	2	Solder	All	Nylon 9T Polyamide (PA9T)	Header	0.1 "	2.54 mm	0.1 in	2.54 mm	Gold	250 VAC	3 A	0.669 in	Flash

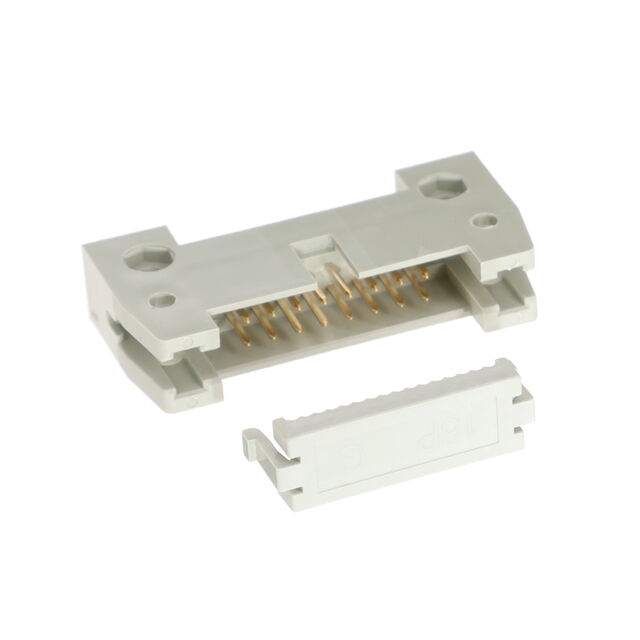

CNC Tech 3010-16-041-11-00						Male Pin				Push-Pull		Free Hanging (In-Line)	Polarizing Key	16					2				Header										2.54 mm	0.1 "	Gold	0.1 "	2.54 mm	IDC	Flash
CNC Tech 3010-16-002-13-99	Square	-40 C	105 ░C	0.134 "	3.4 mm	Male Pin	0.327 "	8.3 mm	Board to Cable/Wire	Latch Lock/Eject Hooks Long	UL94 V-0	Right Angle Through Hole	Keying Slot	16	2.03 µm	80 µin	Brass	Shrouded - 4 Wall	2	Solder	All	Polybutylene Terephthalate (PBT)	Header	0.1 "	2.54 mm	0.1 in	2.54 mm
