REF100 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

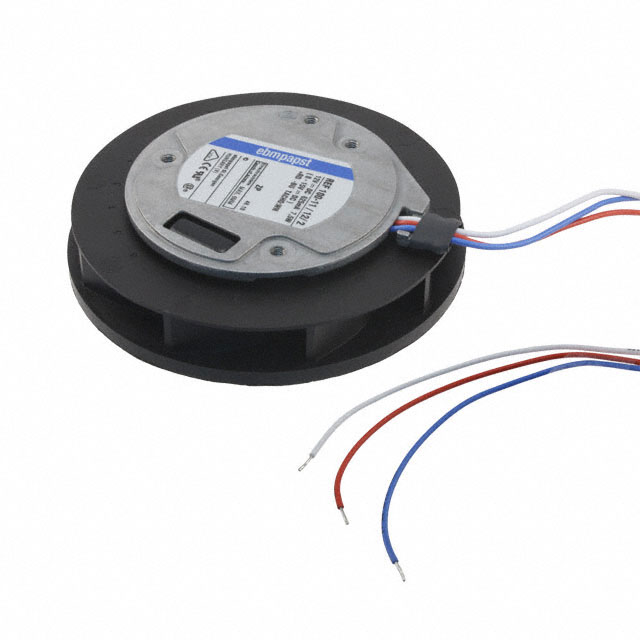

FAN IMP MTRZD 100X25MM 12VDC
| Part | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Air Flow | Air Flow | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] | Features | RPM | Size / Dimension | Size / Dimension [diameter] | Width [y] | Fan Type | Power (Watts) | Termination | Weight | Weight | Voltage - Rated | Bearing Type | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Glass Filled Plastic | 15 V | 8 V | Fiberglass Reinforced Plastic | 1.42 m³/min | 50.6 CFM | 80000 Hrs | -4 °F | 167 °F | Speed Sensor (Tach) | 5400 RPM | Round | 100 mm | 25 mm | Motorized Impellers | 7.5 W | 3 Wire Leads | 0.35 lb | 158.76 g | 12 VDC | Ball | |
 ebm-papst Inc. | Fiberglass Reinforced Plastic | 30 V | 16 VDC | Fiberglass Reinforced Plastic | 1.42 m³/min | 50.6 CFM | 80000 Hrs | -4 °F | 167 °F | Speed Sensor (Tach) | 5400 RPM | Round | 104 mm | Motorized Impellers | 7.5 W | 3 Wire Leads | 24 VDC | Ball | 24.9 mm |
