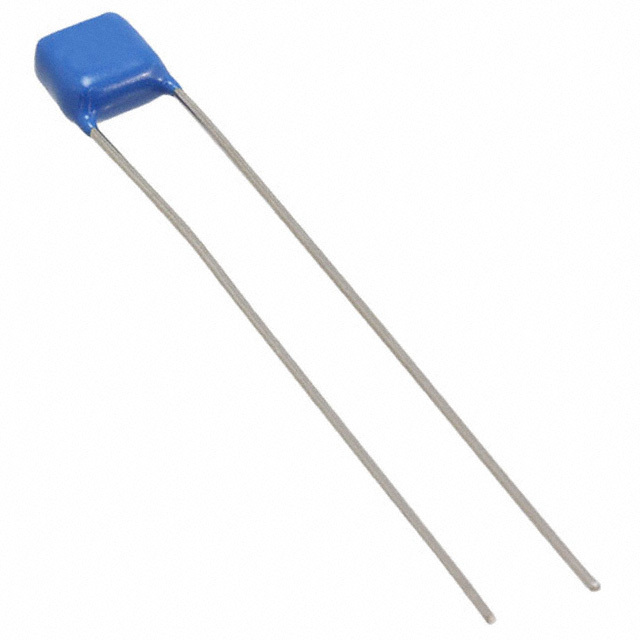

20HV21B Series

Manufacturer: KEMET

Catalog

CAP CER 4700PF 2KV X7R RADIAL

Part	Features	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Capacitance	Lead Style	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Lead Spacing [x]	Lead Spacing [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Height - Seated (Max)	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing
KEMET 20HV21B472KC	High Voltage	SMPS Filtering	8.13 mm	0.32 "	6.35 mm	0.25 in	0.0047 µF	Straight	7.11 mm	0.28 in	5.59 mm	0.22 in	Through Hole	-55 C	125 °C	10 %	Radial	X7R	2000 V	2 kV
KEMET 20HV21B103KC	High Voltage	SMPS Filtering	6.35 mm	0.25 in	5.08 mm	0.2 in	10000 pF	Straight					Through Hole	-55 C	125 °C	10 %	Radial	X7R	2000 V	2 kV	5.59 mm	0.22 in	0.17 in	4.32 mm
