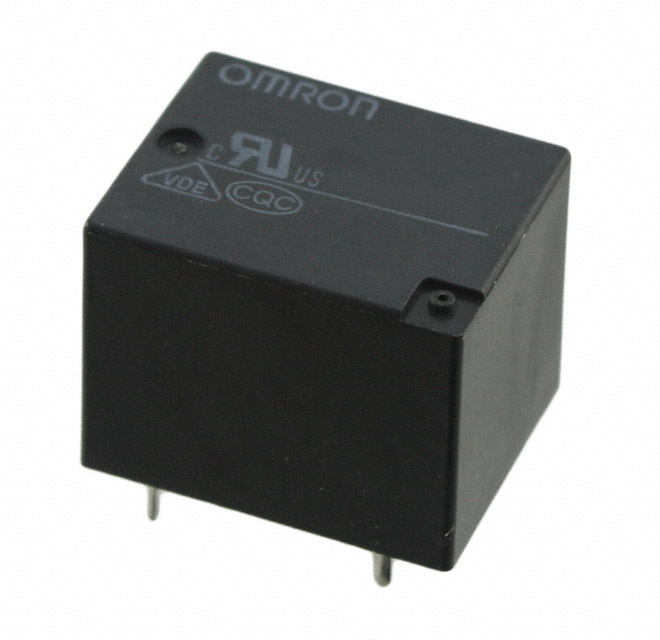

G5LA-1-E Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 5A 12V
| Part | Coil Type | Release Time | Mounting Type | Termination Style | Load - Max Switching | Contact Material | Relay Type | Contact Rating (Current) | Approval Agency | Switching Voltage | Coil Resistance | Operate Time | Coil Current | Must Operate Voltage | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Seal Rating | Must Release Voltage | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 5 ms | Through Hole | PC Pin | 120 W 1250 VA | Silver Tin Oxide (AgSnO) | General Purpose | 5 A | CSA | 24 VDC 250 VAC | 400 Ohms | 10 ms | 30 mA | 9 VDC | 12 VDC | 85 °C | -40 °C | Sealed - Flux Protection | 1.2 VDC | SPDT (1 Form C) |
