750338 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

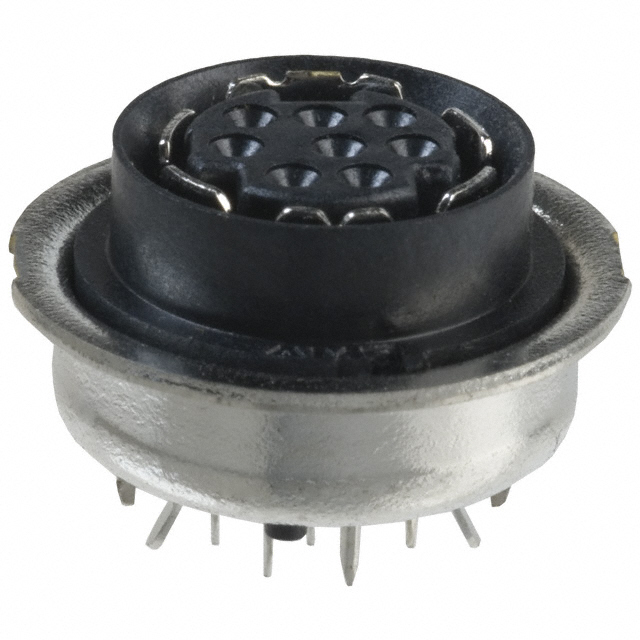

CONN RCPT FMALE MINI DIN 8P SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Shielding | Mounting Type | Mounting Feature | Voltage Rating | Shell Material | Contact Finish - Mating | Connector Type | Shell Size - Insert | Fastening Type | Orientation | Contact Material | Termination | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Audio Video | 0.38 µm | 15 µin | Plastic | Shielded | Panel Mount Through Hole | Flange | 30 VDC | Polyester | Gold | Receptacle Female Sockets | Mini DIN | Push-Pull | Keyed | Copper Alloy | Solder | 8 | UL94 V-0 |
