560020 Series
Manufacturer: Molex
Beta
⌘K

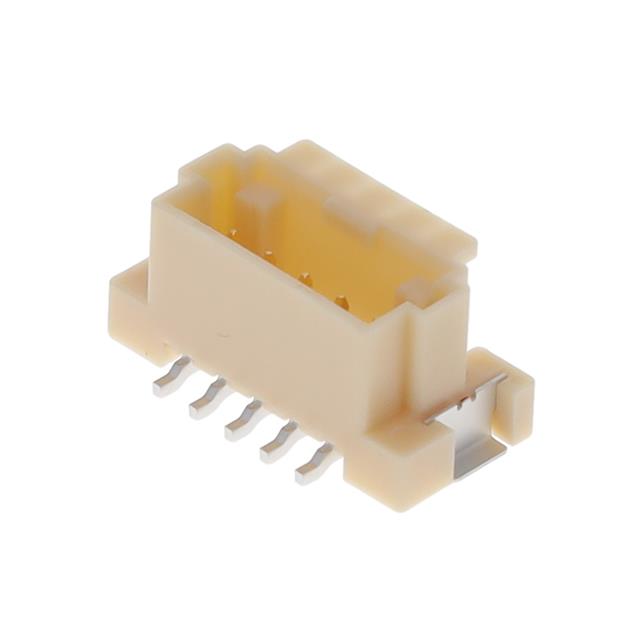

DURACLIK WIRE-TO-BOARD HEADER, SINGLE ROW, VERTICAL, 5 CIRCUITS, GOLD (AU) OVER NICKEL, NATURAL
| Part | Mated Stacking Heights | Applications | Number of Rows | Contact Shape | Insulation Color | Number of Positions Loaded | Connector Type | Insulation Height [custom] | Insulation Height [custom] | Termination | Fastening Type | Material Flammability Rating | Mounting Type | Contact Type | Style | Features | Number of Positions | Contact Finish - Mating | Insulation Material | Shrouding | Pitch - Mating | Pitch - Mating | Contact Material | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Insulation Height | Insulation Height | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 9.3 mm | Automotive Industrial | 1 | Square | Natural | All | Header | 0.236 " | 6 mm | Solder | Latch Lock | UL94 V-0 | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | 5 | Gold | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | ||||||||
 Molex | 1 | Square | Black | All | Header | Solder | Latch Lock | UL94 V-0 | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | 4 | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | Tin | 125 °C | -40 C | 3 A | 8 mm | 0.315 in | 125 VAC | ||||||
 Molex | 9.3 mm | Automotive Industrial | 1 | Square | Natural | All | Header | 0.236 " | 6 mm | Solder | Latch Lock | UL94 V-0 | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | 10 | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | |||||||||
 Molex | 9.3 mm | Automotive Industrial | 1 | Square | Natural | All | Header | 0.236 " | 6 mm | Solder | Latch Lock | UL94 V-0 | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | 4 | Gold | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | ||||||||
 Molex | 9.3 mm | Automotive Industrial | 1 | Square | Natural | All | Header | 0.236 " | 6 mm | Solder | Latch Lock | UL94 V-0 | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | 12 | Gold | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | ||||||||
 Molex | 9.3 mm | Automotive Industrial | 1 | Square | Natural | All | Header | Solder | Latch Lock | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | 5 | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | Tin | 8 mm | 0.315 in | |||||||||
 Molex | 9.3 mm | Automotive Industrial | 1 | Square | Natural | All | Header | Solder | Latch Lock | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | 5 | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | Tin | 8 mm | 0.315 in | |||||||||
 Molex | 9.3 mm | Automotive Industrial | 1 | Square | Natural | All | Header | 0.236 " | 6 mm | Solder | Latch Lock | UL94 V-0 | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | 14 | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | |||||||||
 Molex | 9.3 mm | Automotive Industrial | 1 | Square | Natural | All | Header | Solder | Latch Lock | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | Tin | 8 mm | 0.315 in | ||||||||||
 Molex | Automotive Industrial | 1 | Square | Black | All | Header | Solder | Latch Lock | UL94 V-0 | Surface Mount | Male Pin | Board to Cable/Wire | Solder Retention | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.079 " | 2 mm | Copper Alloy | Tin | 105 ░C | -40 C | 8 mm | 0.315 in | 150 VAC | Varies by Wire Gauge |
