138-0414 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K

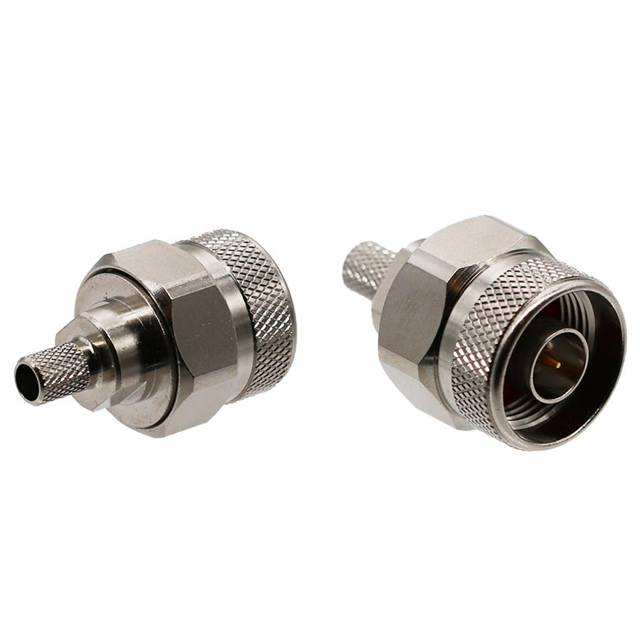

N STRAIGHT CRIMP PLUG, LMR-240,
| Part | Body Finish | Voltage Rating | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Fastening Type | Connector Style | Connector Type | Contact Termination | Center Contact Material | Impedance | Mounting Type | Number of Ports | Frequency - Max [Max] | Cable Group | Shield Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Johnson | Nickel | 550 VDC | Gold | 500 | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 0.1 dB | Threaded | N Type | Plug Male Pin | Crimp | Phosphor Bronze | 50 Ohms | Free Hanging (In-Line) | 1 | 3 GHz | LMR-240 | Crimp | Silver |
