IL 611 Series

Manufacturer: NVE Corp/Isolation Products

Catalog

DGTL ISO 2500VRMS 2CH GP 8SOIC

Part	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Mounting Type	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels	Channel Type	Type	Pulse Width Distortion (Max) [Max]	Supplier Device Package	Data Rate	Voltage - Isolation	Common Mode Transient Immunity (Min) [Min]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Inputs - Side 1/Side 2 [custom]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ) [Max]	Package / Case
NVE Corp/Isolation Products IL 611-3ETR7	0.154 in	8-SOIC	3.9 mm	85 °C	-40 C	15 ns	15 ns	Surface Mount	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	General Purpose	5 ns	8-SOIC	100 Mbps	2500 Vrms	15 kV/µs	2 ns	2 ns	2
NVE Corp/Isolation Products IL 611-2		8-DIP (0.300" 7.62mm)		125 °C	-55 C	25 ns	25 ns	Through Hole	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	General Purpose	10 ns	8-PDIP	40 Mbps	2500 Vrms	15 kV/µs	2 ns	2 ns	2
NVE Corp/Isolation Products IL 611A-3E	0.154 in	8-SOIC	3.9 mm	85 °C	-40 C	25 ns	75 ns	Surface Mount	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	General Purpose		8-SOIC	10 Mbps	2500 Vrms	15 kV/µs			2	10 µs	10 µs

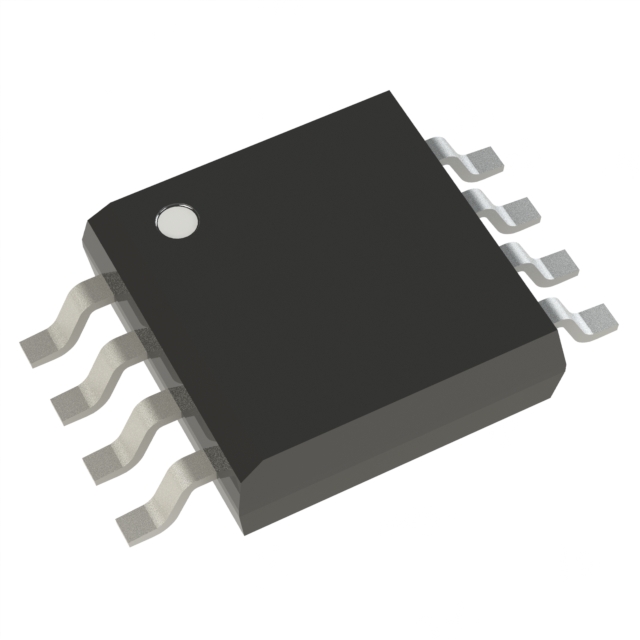

NVE Corp/Isolation Products IL 611-1ETR7		8-MSOP 8-TSSOP		85 °C	-40 C	25 ns	25 ns	Surface Mount	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	CAN I2C RS232 RS422 RS485 SPI	10 ns	8-MSOP	40 Mbps	2500 Vrms	15 kV/µs	2 ns	2 ns	2			0.118 in 3 mm Width
NVE Corp/Isolation Products IL 611A-1E		8-MSOP 8-TSSOP		85 °C	-40 C	25 ns	75 ns	Surface Mount	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	General Purpose		8-MSOP	10 Mbps	2500 Vrms	15 kV/µs			2	10 µs	10 µs	0.118 in 3 mm Width
NVE Corp/Isolation Products IL 611A-2		8-DIP (0.300" 7.62mm)		125 °C	-55 C	25 ns	75 ns	Through Hole	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	General Purpose		8-PDIP	10 Mbps	2500 Vrms	15 kV/µs			2
NVE Corp/Isolation Products IL 611-1		8-MSOP 8-TSSOP		125 °C	-55 C	25 ns	25 ns	Surface Mount	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	General Purpose	10 ns	8-MSOP	40 Mbps	2500 Vrms	15 kV/µs	2 ns	2 ns	2			0.118 in 3 mm Width
NVE Corp/Isolation Products IL 611A-3	0.154 in	8-SOIC	3.9 mm	125 °C	-55 C	25 ns	75 ns	Surface Mount	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	General Purpose		8-SOIC	10 Mbps	2500 Vrms	15 kV/µs			2
NVE Corp/Isolation Products IL 611A-1		8-MSOP 8-TSSOP		125 °C	-55 C	25 ns	75 ns	Surface Mount	GMR (Giant Magnetoresistive)	5.5 V	3 V	2	Unidirectional	General Purpose		8-MSOP	10 Mbps	2500 Vrms	15 kV/µs			2			0.118 in 3 mm Width
