PS24V Series

Catalog

AC/DC DESKTOP ADAPTER 24V 90W

Part	Output Connector	Output Connector [diameter]	Output Connector [z]	No Load Power Consumption	Form	Cord Length	Cord Length	Approval Agency	Efficiency	Applications	Polarization	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Input Connector	Cord Length	Region Utilized

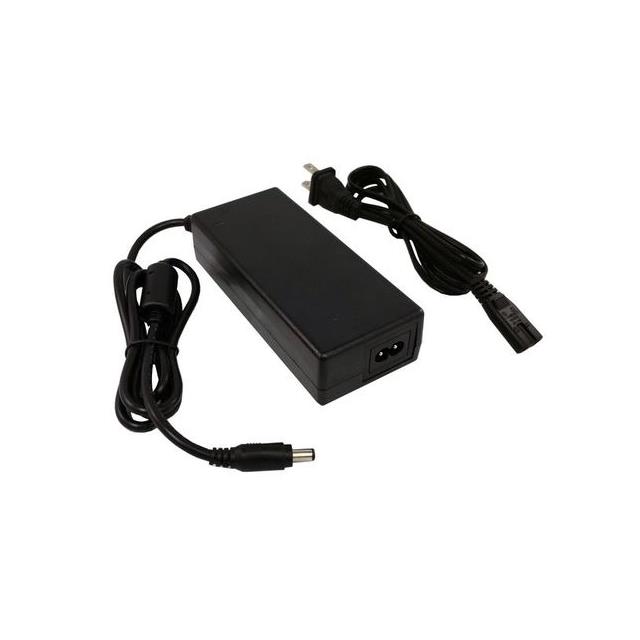

Tycon Systems Inc. PS24V-3.75	Barrel Plug	2.1 mm 5.5 mm	11 mm	500 mW	Desktop (Class II)	1.2 m	1.2 m 47.2 in	CE FCC UL	80 %	ITE (Commercial)	Positive Center	2.36 "	2.4 " 60 mm 61 mm	1.3 " 33 mm 34 mm	139.7 mm 140 mm	1.34 in	5.51 "	90 W	3.75 A	24 V	-20 C	60 °C	90 VAC	264 VAC	Cord	IEC 320-C8	47 "	International
