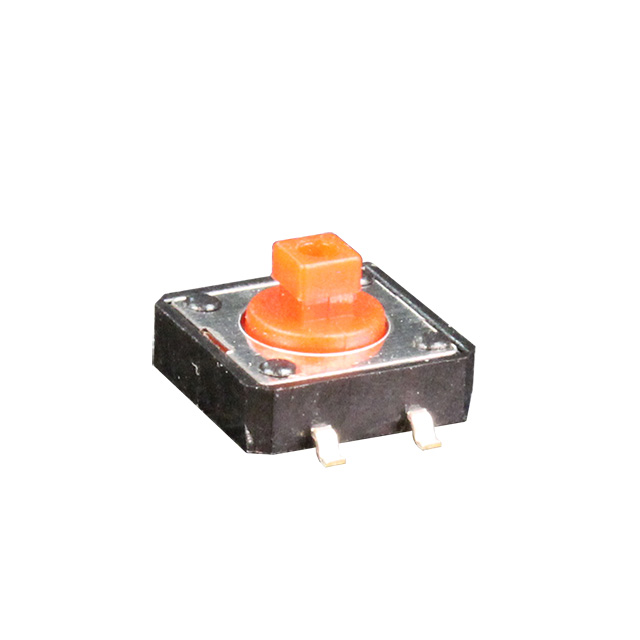

CS1103GF Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Actuator Material | Switch Travel | Actuator Height off PCB, Vertical | Termination Style | Actuator Type | Actuator Orientation | Operating Force | Mounting Type | Outline [y] | Outline [x] | Switch Function | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Polyamide (PA6T) Nylon 6T | 0.3 mm | 7.5 mm | Gull Wing | Plunger for Cap | Top Actuated | 180 gf | Surface Mount | 12 mm | 12 mm | Off-Mom | Non-Illuminated | 85 °C | -40 C | 0.05 A 48 VDC | SPST-NO |
CIT Relay and Switch | Polyamide (PA6T) Nylon 6T | 0.3 mm | 7.5 mm | Gull Wing | Plunger for Cap | Top Actuated | 260 gf | Surface Mount | 12 mm | 12 mm | Off-Mom | Non-Illuminated | 85 °C | -40 C | 0.05 A 48 VDC | SPST-NO |
