11_SMA-50 Series

Catalog

CONN SMA 0HZ TO 26.5GHZ 50OHM SOLDER ST CABLE MOUNT PL BULK

Part	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Cable Group	Housing Color	Number of Ports	Shield Termination	Frequency - Max [Max]	Impedance	Connector Style	Contact Termination	Fastening Type	Mounting Type	Connector Type	Dielectric Material	Center Contact Plating	Center Contact Material	Cable Group
Huber+Suhner, Inc. 11_SMA-50-3-16/-11_NH	Beryllium Copper	Gold	-65 ░C	165 °C	500	RG-141	Gold	1	Solder	26.5 GHz	50 Ohms	SMA	Crimp	Threaded	Free Hanging (In-Line)	Plug Male Pin

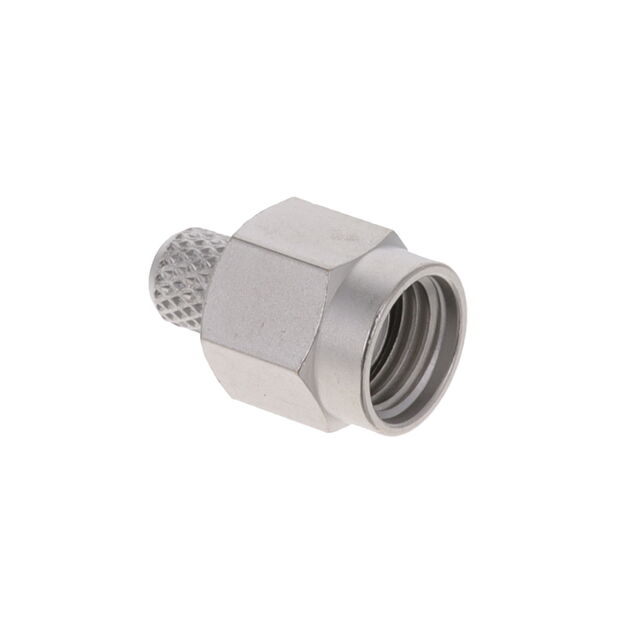

Huber+Suhner, Inc. 11_SMA-50-3-236/133_NP	Brass	White Bronze	-65 ░C	165 °C	500	RG-400	Silver	1	Crimp	18 GHz	50 Ohms	SMA	Solder	Threaded	Free Hanging (In-Line)	Plug Male Pin	Polytetrafluoroethylene (PTFE)	Gold	Brass
Huber+Suhner, Inc. 11_SMA-50-2-112/133_NE	Brass	White Bronze	-65 ░C	165 °C	500	RD-316	Silver	1	Crimp	18 GHz	50 Ohms	SMA	Solder	Threaded	Free Hanging (In-Line)	Plug Male Pin	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Brass
Huber+Suhner, Inc. 11_SMA-50-3-73/-99_NE							Silver	1	Crimp	18 GHz	50 Ohms	SMA	Solder	Threaded	Free Hanging (In-Line)	Plug Male Pin
Huber+Suhner, Inc. 11_SMA-50-3-7/111_NE	Beryllium Copper	Gold	-65 ░C	165 °C	500	RG-58	Gold	1	Clamp	18 GHz	50 Ohms	SMA	Solder	Threaded	Free Hanging (In-Line)	Plug Male Pin	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper

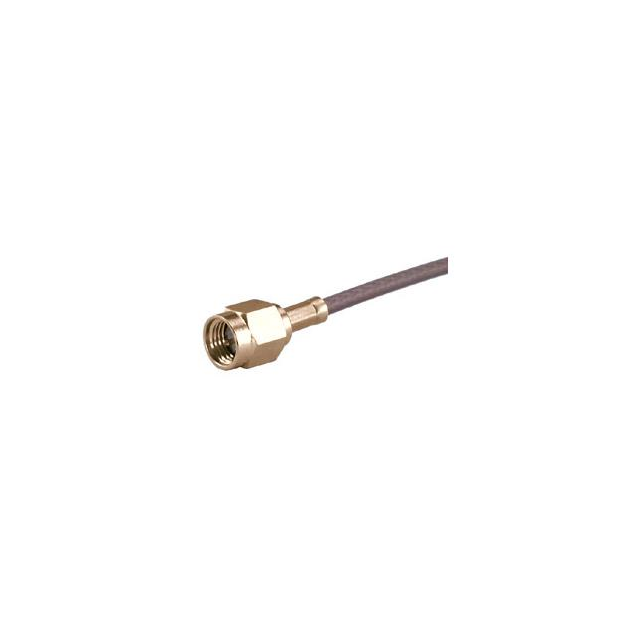

Huber+Suhner, Inc. 11_SMA-50-1-4/111_NE	Beryllium Copper	Gold	-65 ░C	165 °C	500	RG-178	Gold	1	Crimp	18 GHz	50 Ohms	SMA	Solder	Threaded	Free Hanging (In-Line)	Plug Male Pin	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	196

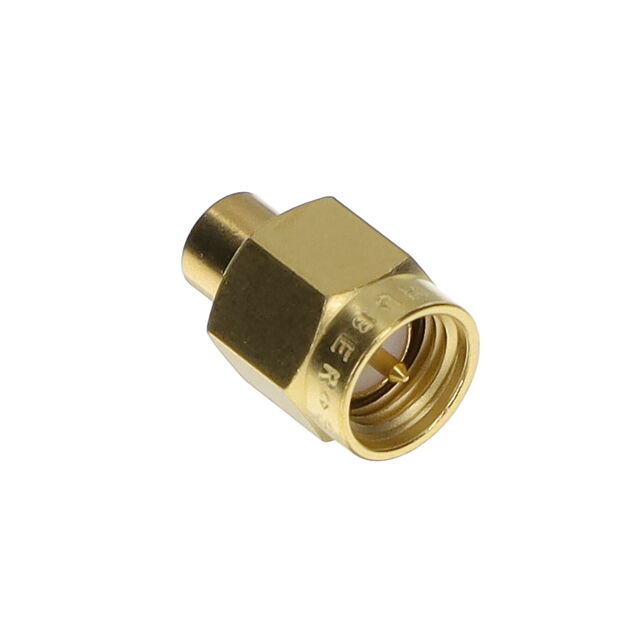

Huber+Suhner, Inc. 11_SMA-50-3-39/111_YH	Brass	Gold	-65 ░C	165 °C	500	RG-141	Gold	1	Solder	18 GHz	50 Ohms	SMA	Crimp	Threaded	Free Hanging (In-Line)	Plug Male Pin	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Bronze
Huber+Suhner, Inc. 11_SMA-50-7-1/133_NE	Brass	White Bronze	-65 ░C	165 °C	500	LMR-400	Silver	1	Clamp	18 GHz	50 Ohms	SMA	Crimp	Threaded	Free Hanging (In-Line)	Plug Male Pin	Polytetrafluoroethylene (PTFE)	Gold	Bronze
Huber+Suhner, Inc. 11_SMA-50-3-236/133_NE	Brass	White Bronze	-65 ░C	165 °C	500	RG-400	Silver	1	Crimp	18 GHz	50 Ohms	SMA	Solder	Threaded	Free Hanging (In-Line)	Plug Male Pin	Polytetrafluoroethylene (PTFE)	Gold	Brass
Huber+Suhner, Inc. 11_SMA-50-3-14/-11_NH	Beryllium Copper	Gold	-65 ░C	165 °C	500	RG-141	Gold	1	Solder	26.5 GHz	50 Ohms	SMA	Crimp	Threaded	Free Hanging (In-Line)	Plug Male Pin	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
