325221 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 1CIRCUIT
| Part | Mounting Type | Material - Insulation | Operating Temperature | Material Flammability Rating | Terminal Block Type | Bottom Termination | Current Rating (Amps) | Features | Barrier Type | Number of Circuits | Voltage Rating | Number of Wire Entries | Top Termination | Number of Rows | Wire Gauge [Min] | Wire Gauge [Max] | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 1 | 300 VDC | 1 | Screws | 1 | 14 AWG | 22 AWG | ||
Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 18 | 300 VDC | 18 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |
Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 20 | 300 VDC | 20 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |

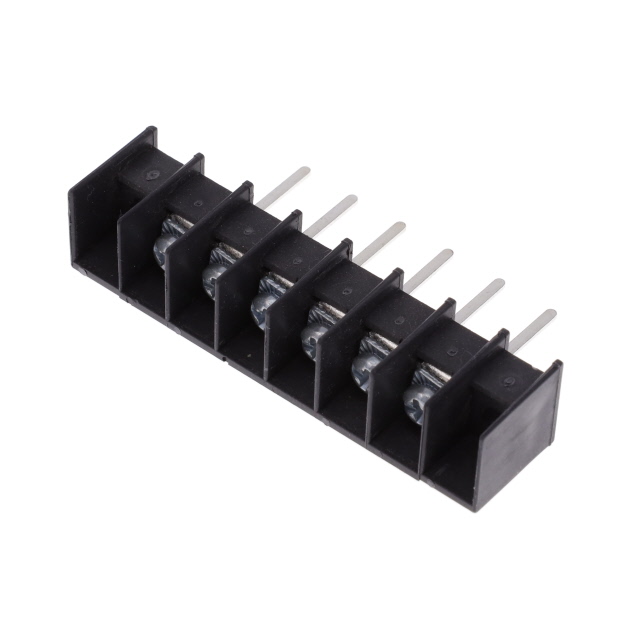

 Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 6 | 300 VDC | 6 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |
Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 21 | 300 VDC | 21 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |

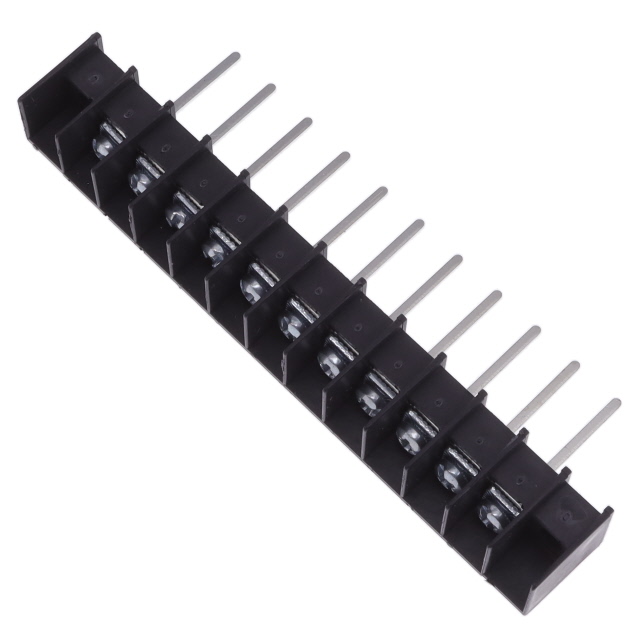

 Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 11 | 300 VDC | 11 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |

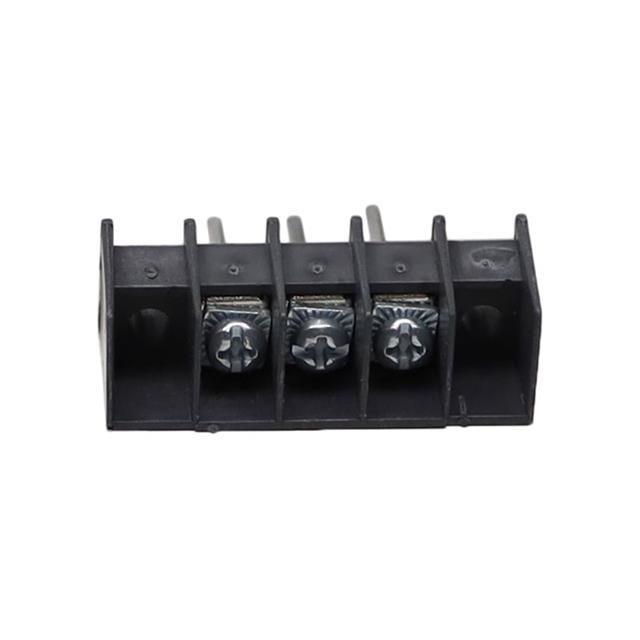

 Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 3 | 300 VDC | 3 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |

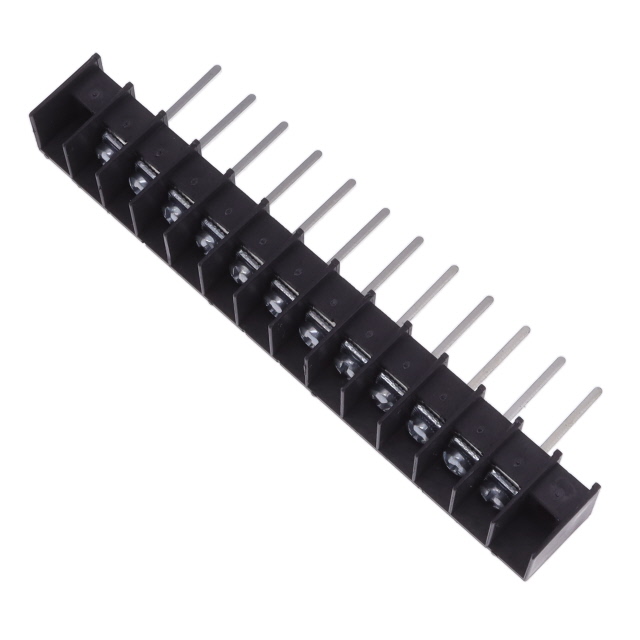

 Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 12 | 300 VDC | 12 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |
Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 13 | 300 VDC | 13 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |

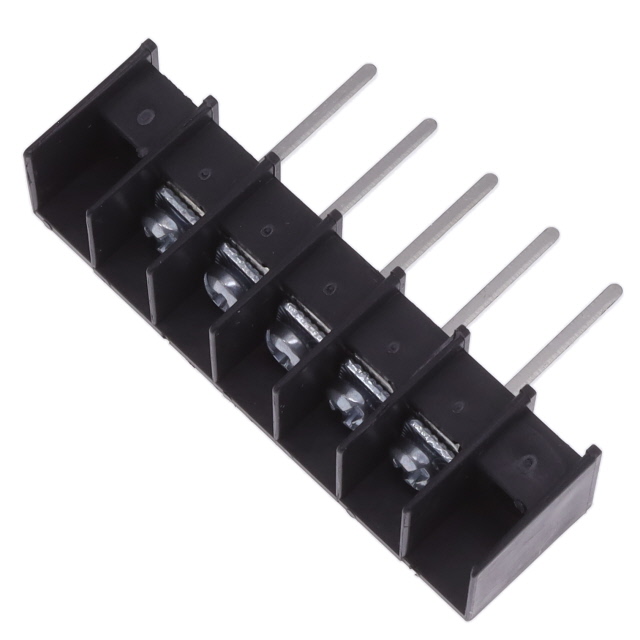

 Curtis Industries | Chassis Panel Through Hole | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | Wire Wrap | 15 A | Flange | 3 Wall (Tri) | 5 | 300 VDC | 5 | Screws | 1 | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |
