55101 Series

Catalog

CONN HEADER R/A 18POS 2.54MM

Part	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Material	Number of Rows	Shrouding	Insulation Color	Contact Type	Connector Type	Insulation Height	Insulation Height	Number of Positions	Mounting Type	Contact Shape	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Voltage Rating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating
Amphenol ICC (FCI) 55101-T17-18	0.23 in	5.84 mm	UL94 V-0	All	2.54 çm	100 çin	Push-Pull	0.12 in	3.05 mm	0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	18	Through Hole Right Angle	Square	Solder

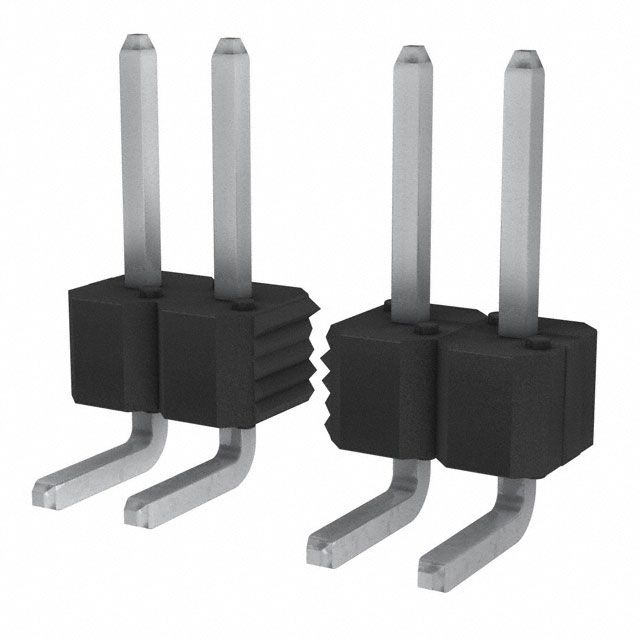

Amphenol ICC (FCI) 55101-T1106LF	0.23 in	5.84 mm	UL94 V-0	All	2.54 çm	100 çin	Push-Pull			0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	6	Through Hole Right Angle	Square	Solder	2.54 µm	100 µin	5 A	Tin	110 VDC	0.09 "	2.29 mm

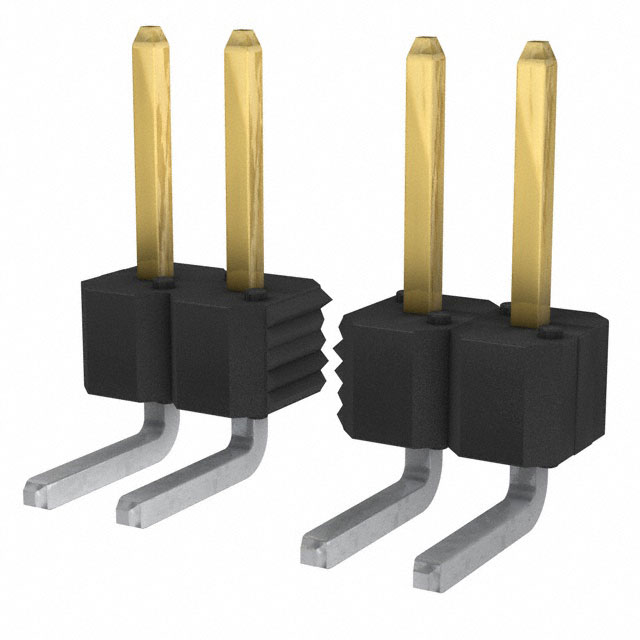

Amphenol ICC (FCI) 55101-S17-07	0.23 in	5.84 mm	UL94 V-0	All	0.38 µm	15 µin	Push-Pull	0.12 in	3.05 mm	0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	7	Through Hole Right Angle	Square	Solder								Gold GXT™
Amphenol ICC (FCI) 55101-S11-20	0.23 in	5.84 mm	UL94 V-0	All	0.76 Ám	30 Áin	Push-Pull			0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	20	Through Hole Right Angle	Square	Solder						0.09 "	2.29 mm	Gold GXT™
Amphenol ICC (FCI) 55101-S17-36	0.23 in	5.84 mm	UL94 V-0	All	0.38 µm	15 µin	Push-Pull	0.12 in	3.05 mm	0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	36	Through Hole Right Angle	Square	Solder								Gold GXT™
Amphenol ICC (FCI) 55101-G17-03	0.23 in	5.84 mm	UL94 V-0	All	0.76 Ám	30 Áin	Push-Pull	0.12 in	3.05 mm	0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in		Through Hole Right Angle	Square	Solder								Gold GXT™
Amphenol ICC (FCI) 55101-T1109LF	0.23 in	5.84 mm	UL94 V-0	All	2.54 çm	100 çin	Push-Pull			0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	9	Through Hole Right Angle	Square	Solder	2.54 µm	100 µin	5 A	Tin	110 VDC	0.09 "	2.29 mm

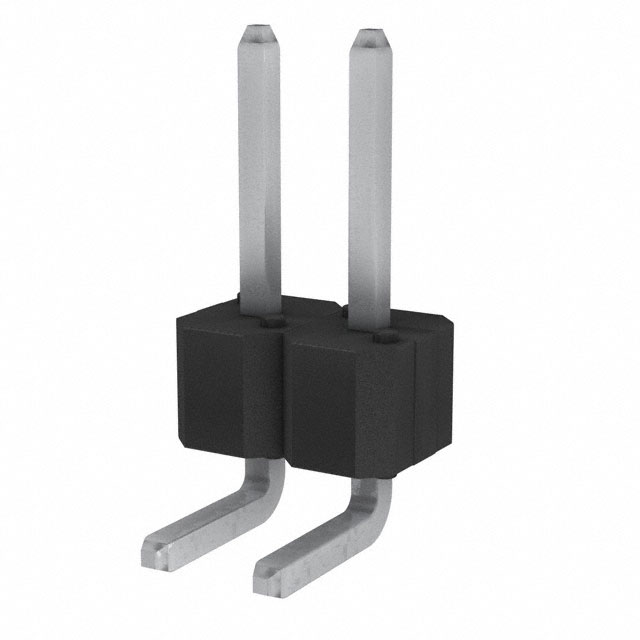

Amphenol ICC (FCI) 55101-T1102LF	0.23 in	5.84 mm	UL94 V-0	All	2.54 çm	100 çin	Push-Pull			0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	2	Through Hole Right Angle	Square	Solder	2.54 µm	100 µin	5 A	Tin	110 VDC	0.09 "	2.29 mm
Amphenol ICC (FCI) 55101-G17-36	0.23 in	5.84 mm	UL94 V-0	All	0.76 Ám	30 Áin	Push-Pull	0.12 in	3.05 mm	0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	36	Through Hole Right Angle	Square	Solder			5 A		110 VDC			Gold GXT™
Amphenol ICC (FCI) 55101-G11-36	0.23 in	5.84 mm	UL94 V-0	All	0.76 Ám	30 Áin	Push-Pull			0.1 in	2.54 mm	Phosphor Bronze	1	Unshrouded	Black	Male Pin	Header	3.56 mm	0.14 in	36	Through Hole Right Angle	Square	Solder						0.09 "	2.29 mm	Gold GXT™
