MX34012N Series
Manufacturer: JAE Electronics
Beta
⌘K

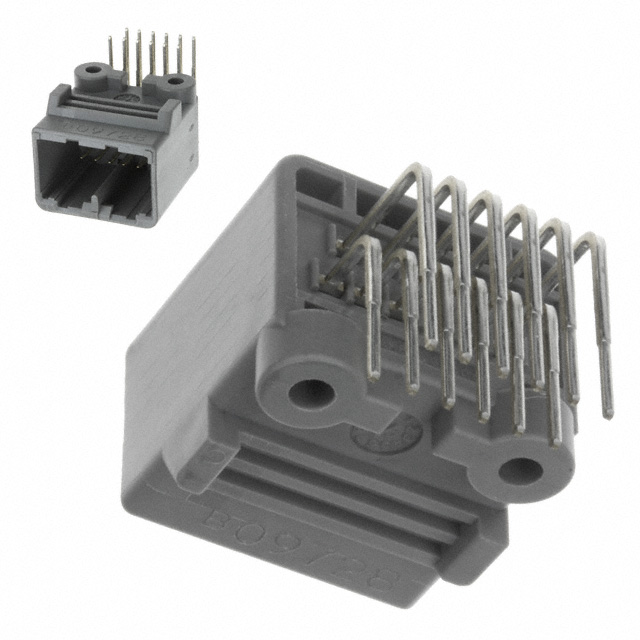

CONN HEADER R/A 12POS 2.2MM
| Part | Applications | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Insulation Color | Style | Number of Positions | Contact Shape | Termination | Fastening Type | Contact Material | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Length - Mating | Contact Length - Mating | Contact Type | Features | Shrouding | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | 0.087 in | 2.2 mm | Tin | Right Angle Through Hole | 0.118 in | 3 mm | 0.626 in | 15.9 mm | Gray | Board to Cable/Wire | 12 | Square | Solder | Locking Ramp | Brass | 2 | 85 °C | -40 C | Header | 0.303 in | 7.7 mm | Male Pin | Board Lock | Shrouded - 4 Wall | All | 0.126 " | 3.2 mm | Glass Filled Syndiotactic Polystyrene (SPS) | 3 A |
