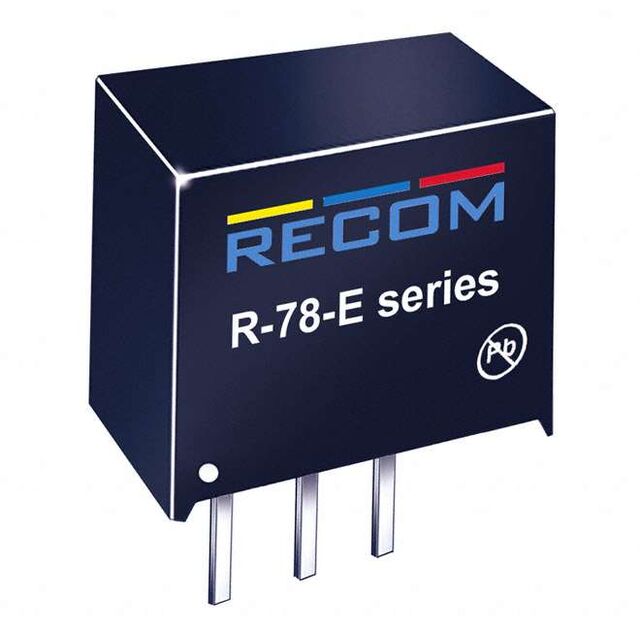

R-78E Series

Catalog

DC/DC CONVERTER, ITE, 1 OUTPUT, 6 W, 12 V, 500 MA, R-78E SERIES

Part	Features	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Min) [Min]	Applications	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Package / Case	Voltage - Output 1	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]

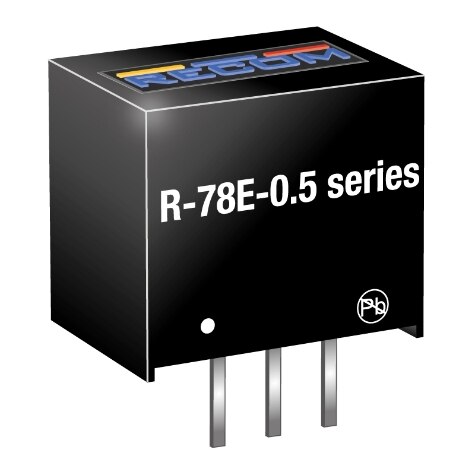

Recom Power R-78E12-0.5	SCP	Through Hole	1	85 °C	-40 C	95 %	15 V	ITE (Commercial)	6 W	8.5 mm	0.46 in	10.4 mm	11.6 mm	0.33 "	0.41 in	Linear Regulator Replacement	3-SIP Module	12 V	28 V	500 mA
Recom Power R-78E3.3-1.0	SCP	Through Hole	1	85 °C	-40 C	91 %	7 V	ITE (Commercial)	3 W	8.5 mm	0.46 in	10.4 mm	11.6 mm	0.33 "	0.41 in	Linear Regulator Replacement	3-SIP Module	3.3 V	28 V	1 A
Recom Power R-78E5.0-0.5	SCP	Through Hole	1	85 °C	-40 C	92 %	7 V	ITE (Commercial)	3 W	8.5 mm	0.46 in	10.4 mm	11.6 mm	0.33 "	0.41 in	Linear Regulator Replacement	3-SIP Module	5 V	28 V	500 mA
Recom Power R-78E3.3-0.5	SCP	Through Hole	1	85 °C	-40 C	88 %	6 V	ITE (Commercial)	2 W	8.5 mm	0.46 in	10.4 mm	11.6 mm	0.33 "	0.41 in	Linear Regulator Replacement	3-SIP Module	3.3 V	28 V	500 mA
Recom Power R-78E15-0.5	SCP	Through Hole	1	85 °C	-40 C	95 %	18 V	ITE (Commercial)	8 W	8.5 mm	0.46 in	10.4 mm	11.6 mm	0.33 "	0.41 in	Linear Regulator Replacement	3-SIP Module	15 V	28 V	500 mA
Recom Power R-78E5.0-1.0	SCP	Through Hole	1	85 °C	-40 C	91 %	8 V	ITE (Commercial)	5 W	8.5 mm	0.46 in	10.4 mm	11.6 mm	0.33 "	0.41 in	Linear Regulator Replacement	3-SIP Module	5 V	28 V	1 A
Recom Power R-78E9.0-0.5	SCP	Through Hole	1	85 °C	-40 C	94 %	12 V	ITE (Commercial)	5 W	8.5 mm	0.46 in	10.4 mm	11.6 mm	0.33 "	0.41 in	Linear Regulator Replacement	3-SIP Module	9 V	28 V	500 mA
