Micro-Con-X Series

Catalog

MICRO-CON-X PANEL, 4-PIN #22, FEMALE, PC TAIL (0.187 IN), BULK

Part	Contact Finish - Mating	Contact Material	Applications	Material Flammability Rating	Orientation	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Color	Termination	Current Rating (Amps)	Connector Type	Mounting Type	Primary Material	Shielding	Ingress Protection	Voltage Rating	Fastening Type	Features	Insert Material	Backshell Material, Plating	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	2nd Connector Type	1st Connector Orientation	Usage	Cable Material	Length	Length	1st Connector Gender	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Cable Type	1st Connector Number of Positions	Assembly Configuration	1st Connector Type
SWITCHCRAFT/CONXALL 17883-4SG-300	Gold	Copper Alloy	Data Industrial Instrumentation Medical	UL94 HB	Keyed	4	85 °C	-40 C	Bulkhead - Front Side Nut	Black	Solder	6 A	Receptacle Female Sockets	Panel Mount Through Hole	Plastic	Unshielded	IP67 - Dust Tight Waterproof	600 VAC	Bayonet Lock

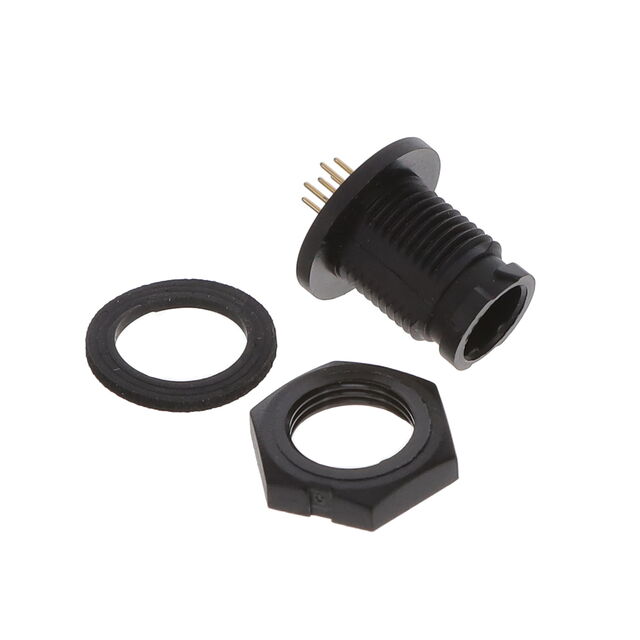

SWITCHCRAFT/CONXALL W17984-7PG-P-3ES	Gold	Copper Alloy	Data Industrial Instrumentation Medical		A	7	80 °C	-40 C	Bulkhead - Front Side Nut	Black	Solder	7.5 A	Receptacle Male Pins	Panel Mount Through Hole	Plastic	Unshielded	IP67 - Dust Tight Waterproof	600 VAC	Bayonet Lock	UV Resistant	Thermoplastic
SWITCHCRAFT/CONXALL 18880-4SG-522	Gold	Copper Alloy	Data Industrial Instrumentation Medical	UL94 HB	Keyed	4	85 °C	-40 C		Black	Crimp	6 A	Receptacle Female Sockets	Free Hanging (In-Line)	Plastic	Unshielded	IP67 - Dust Tight Waterproof	600 VAC	Bayonet Lock	Backshell		Thermoplastic	5.59 mm	5.84 mm	0.23 in	0.22 in

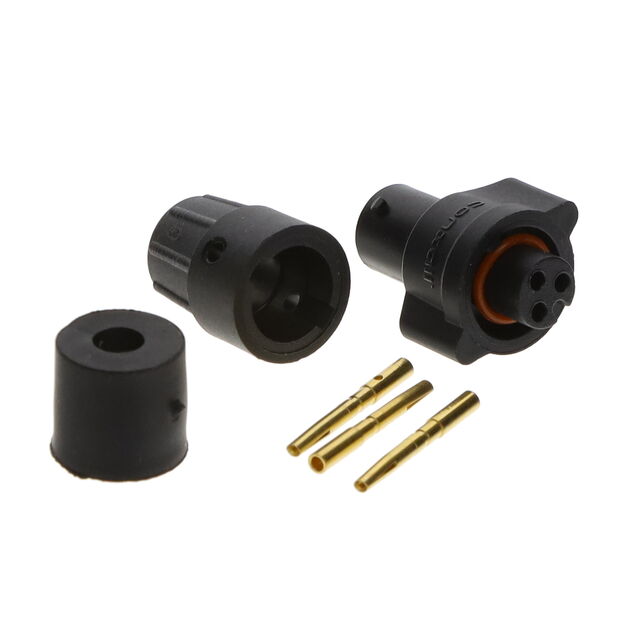

SWITCHCRAFT/CONXALL W16280-3SG-P-318	Gold	Copper Alloy	Data Industrial Instrumentation Medical		Keyed		80 °C	-40 C		Black	Crimp	7.5 A	Plug Female Sockets	Free Hanging (In-Line)	Plastic	Unshielded		600 VAC	Bayonet Lock	Backshell UV Resistant	Thermoplastic	Thermoplastic	4.57 mm	5.08 mm	0.2 "	0.18 "
SWITCHCRAFT/CONXALL W17982-7SG-P-300	Gold	Copper Alloy	Data Industrial Instrumentation Medical		A	7	80 °C	-40 C	Bulkhead - Front Side Nut	Black		7.5 A	Receptacle Female Sockets	Panel Mount	Plastic	Unshielded		600 VAC	Bayonet Lock	UV Resistant	Thermoplastic
SWITCHCRAFT/CONXALL 17291-3SG-300	Gold	Copper Alloy	Data Industrial Instrumentation Medical	UL94 HB	Keyed		85 °C	-40 C	Bulkhead - Front Side Nut	Black	Solder	7.5 A	Receptacle Female Sockets	Panel Mount Through Hole	Plastic	Unshielded	IP67 - Dust Tight Waterproof	600 VAC	Bayonet Lock
SWITCHCRAFT/CONXALL CA162803P07990										Black						Unshielded	IP67 - Dust Tight Waterproof										Wire Leads	Keyed	Industrial Environments	Polyvinyl Chloride (PVC)	2.01 m	6.58 ft	Male Pins	All	Free Hanging (In-Line)	Round	3	Standard	Plug
SWITCHCRAFT/CONXALL 18282-2PG-318	Gold	Copper Alloy	Data Industrial Instrumentation Medical	UL94 HB	Keyed	2	85 °C	-40 C		Black		7.5 A	Receptacle Male Pins	Free Hanging (In-Line)	Plastic	Unshielded	IP67 - Dust Tight Waterproof	600 VAC	Bayonet Lock	Backshell		Thermoplastic	4.57 mm	5.08 mm	0.2 "	0.18 "
SWITCHCRAFT/CONXALL 18280-2SG-318	Gold	Copper Alloy	Data Industrial Instrumentation Medical	UL94 HB	Keyed	2	85 °C	-40 C		Black	Crimp	7.5 A	Receptacle Female Sockets	Free Hanging (In-Line)	Plastic	Unshielded	IP67 - Dust Tight Waterproof	600 VAC	Bayonet Lock	Backshell		Thermoplastic	4.57 mm	5.08 mm	0.2 "	0.18 "
SWITCHCRAFT/CONXALL W16982-7PG-P-518	Gold	Copper Alloy			A	7				Black			Plug Male Pins	Free Hanging (In-Line)	Plastic	Unshielded			Bayonet Lock	Backshell Coupling Nut UV Resistant	Thermoplastic	Thermoplastic	4.57 mm	5.08 mm	0.2 "	0.18 "
