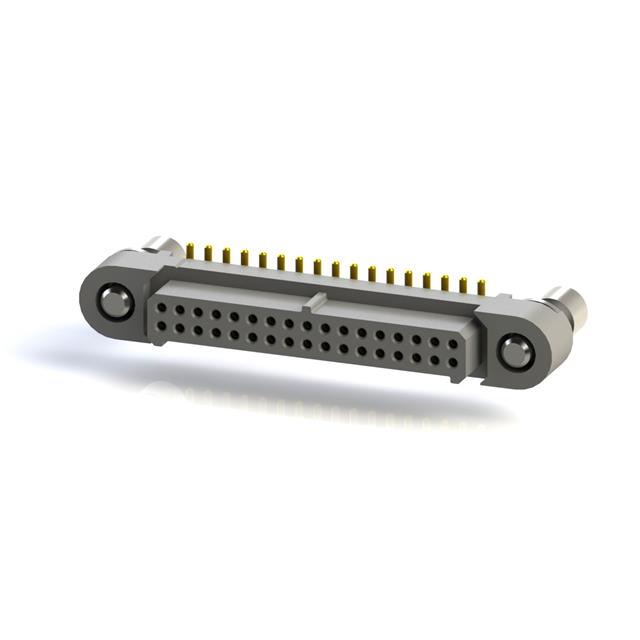

A222T34V Series
Manufacturer: Nicomatic
Beta
⌘K
FEM. 34POS STRAIGHT SMT 1MM
| Part | Contact Shape | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Number of Positions [custom] | Connector Type | Fastening Type | Features | Contact Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Finish - Mating | Termination | Pitch - Mating | Pitch - Mating | Mounting Type | Voltage Rating | Number of Rows [custom] | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | Circular | Liquid Crystal Polymer (LCP) | 0.15 µm | 5.9 µin | Copper Alloy | 2.5 A | 4 mm | 0.157 in | 34 | Receptacle | Push-Pull | Jackscrews Mating Flange Mounting Flange Polarizing Key | Female Socket | UL94 V-0 | -65 ░C | 200 °C | 5.9 µin | 0.15 µm | Gold | Solder | 1 mm | 0.039 in | Surface Mount | 600 VAC | 2 | Gold | 0.039 in | 1 mm | Black | All |
