71607 Series

Catalog

CONN RCPT 22POS 0.1 GOLD SMD R/A

Part	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height	Insulation Height	Number of Rows	Applications	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Mounting Type	Fastening Type	Termination	Material Flammability Rating	Contact Type	Insulation Color	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Features
Amphenol ICC (FCI) 71607-322LF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray	Gold	30 Áin	0.76 Ám	22 positions	Square
Amphenol ICC (FCI) 71607-404LF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray		78.7 µin	2 µm	4	Square
Amphenol ICC (FCI) 71607-436LF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray		78.7 µin	2 µm	36	Square
Amphenol ICC (FCI) 71607-308ALF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray	Gold	30 Áin	0.76 Ám	8	Square	Pick and Place
Amphenol ICC (FCI) 71607-439LF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray		78.7 µin	2 µm	39	Square
Amphenol ICC (FCI) 71607-413LF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray		78.7 µin	2 µm	13	Square

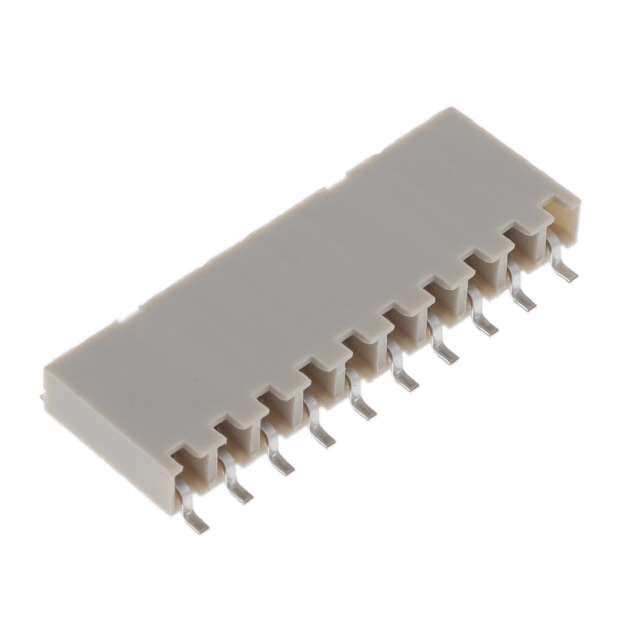

Amphenol ICC (FCI) 71607-310LF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray	Gold	30 Áin	0.76 Ám	10	Square
Amphenol ICC (FCI) 71607-307ALF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray	Gold	30 Áin	0.76 Ám	7	Square	Pick and Place
Amphenol ICC (FCI) 71607-320	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray	Gold	30 Áin	0.76 Ám	20	Square
Amphenol ICC (FCI) 71607-433LF	All	0.1 in	2.54 mm	Phosphor Bronze	0.129 in	3.28 mm	1	Automotive General Purpose Industrial Telecommunications	Receptacle	2 çm	78.7 çin	Tin	Surface Mount Right Angle	Push-Pull	Solder	UL94 V-0	Female Socket	Gray		78.7 µin	2 µm	33	Square
