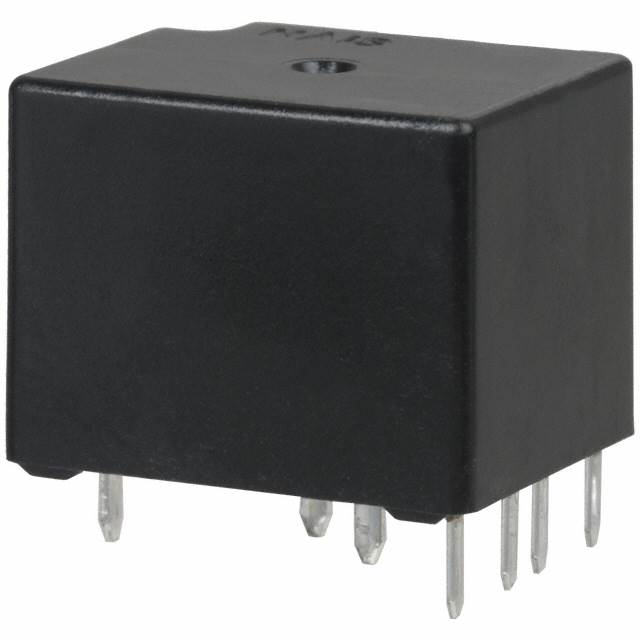

ACT21 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
AUTOMOTIVE RELAY, SPDT, 12VDC, 20A, THT ROHS COMPLIANT: YES
| Part | Coil Power | Coil Resistance | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Contact Form | Coil Voltage | Switching Voltage | Coil Current | Termination Style | Must Release Voltage | Operate Time | Coil Type | Release Time | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 800 mW | 180 Ohms | Silver Alloy Cadmium Free | Through Hole | 85 °C | -40 C | 7.2 VDC | SPDT (1 Form C) x 2 | 12 VDC | 14 VDC | 66.7 mA | PC Pin | 1 VDC | 10 ms | Non Latching | 10 ms | 20 A |
