TPSM828512 Series

Catalog

POWER MANAGEMENT IC DEVELOPMENT TOOLS TPSM828512 EVALUATIO N BOARD 2.7-V TO 6-V

Part	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Current - Output	Main Purpose	Regulator Topology	Contents	Utilized IC / Part	Number of Outputs	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Control Features	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Mounting Type	Type

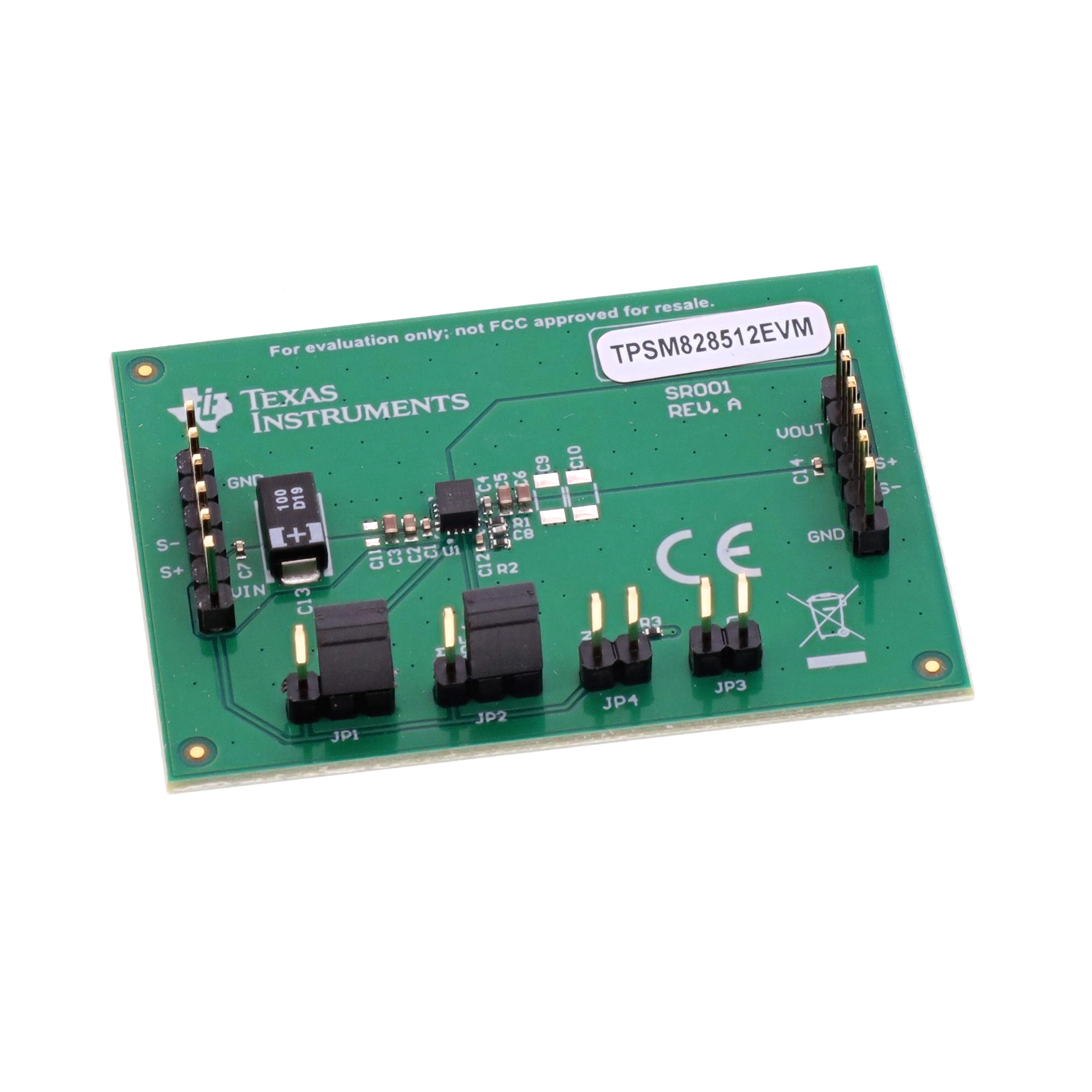

Texas Instruments TPSM828512EVM	1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	2.25 MHz	6 V	2.7 V	0.6 V	5.5 V	2 A	DC/DC Step Down	Buck	Board(s)	TPSM828512
Texas Instruments TPSM828512RDYR															1	0.6 V	5.5 V	9-PowerFQFN Module	125 °C	-40 C	11 W	Active Low Enable	2 A	2.8 mm	2 mm	0.08 "	0.11 "	3 mm	0.12 inches	3	9-QFN-FCMOD	2.7	Adjustable Output Remote On/Off	ITE (Commercial)	2.7 V	6 V	Surface Mount	Non-Isolated PoL Module
