HFW6R Series

Catalog

CONN FFC FPC TOP 6POS 1MM R/A

Part	Housing Color	Contact Finish Thickness	Mating Cycles	FFC, FCB Thickness	Contact Material	Mounting Type	Voltage Rating	Number of Positions	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector/Contact Type	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Contact Finish	Cable End Type	Material Flammability Rating	Flat Flex Type	Housing Material	Features	Current Rating (Amps)
Amphenol ICC (FCI) HFW6R-2STBE1H1LF	Black	Flash	30	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	100 V	6	Solder	-55 C	105 ░C	Contacts Top	1 mm	0.039 in	1.9 mm	0.075 in	Gold	Straight or Tapered	UL94 V-0	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free
Amphenol ICC (FCI) HFW6R-1STE9LF	Black		30	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	100 V	6	Solder	-55 C	105 ░C	Contacts Bottom	1 mm	0.039 in	1.9 mm	0.075 in	Tin	Straight or Tapered	UL94 V-0	FFC FPC	Glass Filled Nylon 6T Polyamide (PA6T)
Amphenol ICC (FCI) HFW6R-6STE1H1LF	Black		30	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	100 V	6	Solder	-55 C	105 ░C	Contacts Top	1 mm	0.039 in	1.9 mm	0.075 in	Tin	Tapered	UL94 V-0	CIC	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention
Amphenol ICC (FCI) HFW6R-2STAHE1LF						Right Angle Surface Mount		6					1 mm	0.039 in
Amphenol ICC (FCI) HFW6R-1STBE1H1LF	Black	Flash	30	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	100 V	6	Solder	-55 C	105 ░C	Contacts Bottom	1 mm	0.039 in	1.9 mm	0.075 in	Gold	Straight or Tapered	UL94 V-0	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free
Amphenol ICC (FCI) HFW6R-2STE1MTLF	Black		30	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	50 V	6	Solder	-55 C	105 ░C	Contacts Top	1 mm	0.039 in	3.1 mm	0.122 in	Tin	Straight or Tapered	UL94 V-0	FFC FPC	Glass Filled Thermoplastic	Solder Retention	0.5 A
Amphenol ICC (FCI) HFW6R-1STBE1LF	Black			0.3 mm	Phosphor Bronze	Right Angle Surface Mount	100 V	6	Solder	-55 C	105 ░C	Contacts Bottom	1 mm	0.039 in	1.9 mm	0.075 in	Gold	Tapered	UL94 V-0		Glass Filled Nylon 6T Polyamide (PA6T)
Amphenol ICC (FCI) HFW6R-2STE1HLF	Black		30	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	100 V	6	Solder	-55 C	105 ░C	Contacts Top	1 mm	0.039 in	1.9 mm	0.075 in	Tin	Straight or Tapered	UL94 V-0	FFC FPC	Glass Filled Halogen Free Nylon 6T Polyamide (PA6T)
Amphenol ICC (FCI) HFW6R-2STAE1LF	Black		30	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	100 V	6	Solder	-55 C	105 ░C	Contacts Top	1 mm	0.039 in	1.9 mm	0.075 in	Gold	Tapered	UL94 V-0	FPC	Glass Filled Nylon 6T Polyamide (PA6T)	Solder Retention

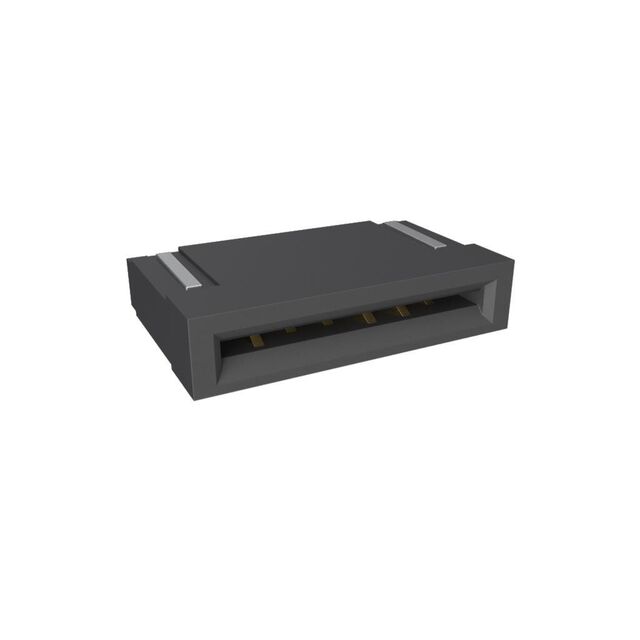

Amphenol ICC (FCI) HFW6R-1STAE1H1LF	Black		30	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	100 V	6	Solder	-55 C	105 ░C	Contacts Bottom	1 mm	0.039 in	1.9 mm	0.075 in	Gold	Tapered	UL94 V-0	FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention
