SX1508 Series
Manufacturer: Semtech Corporation
Beta
⌘K
I2C INTERFACE 3.6V 20-PIN QFN-UT EP T/R
| Part | Current - Output Source/Sink | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Output Type | Number of I/O | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Interface | Clock Frequency | Interrupt Output | Features | Supplied Contents | Function | Secondary Attributes | Primary Attributes | Utilized IC / Part | Type | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | 8 mA 15 mA | 20-QFN-UT (3x3) | 3.6 V | 1.425 V | 20-UFQFN Exposed Pad | Open Drain Push-Pull | 8 | 85 °C | -40 C | Surface Mount | I2C | 400 kHz | |||||||||
 Semtech Corporation | 20-QFN-UT (3x3) | 3.6 V | 1.2 V | 20-UFQFN Exposed Pad | Open Drain Push-Pull | 8 | 85 °C | -40 C | Surface Mount | I2C | 400 kHz | POR | |||||||||

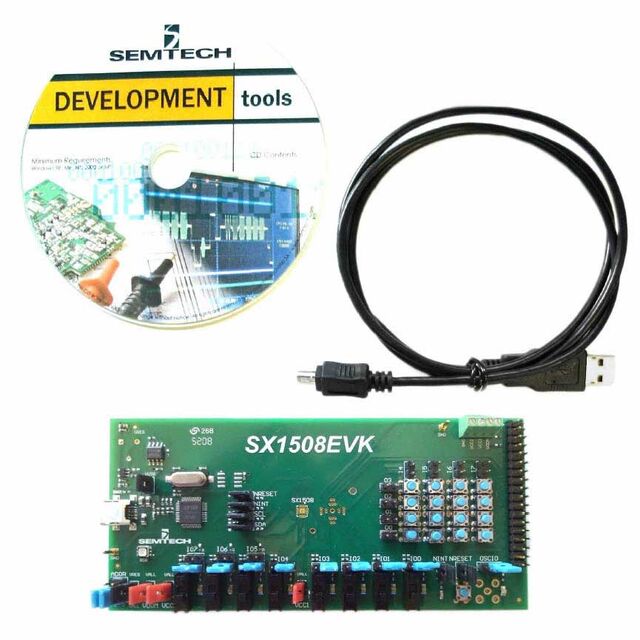

 Semtech Corporation | Board(s) Cable(s) | GPIO Expander | On-Board LEDs | Level Shifter | SX1508 | Interface | Board Cable |
