LPH92 Series

Catalog

EC FAN AXIAL 92 X 92 X 38MM W/PA

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Ingress Protection	Power (Watts)	Bearing Type	Voltage - Rated [Max]	Voltage - Rated [Min]	Termination	Air Flow	Air Flow	RPM	Width [y]	Noise	Weight	Weight	Fan Type	Features	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Lifetime @ Temp.

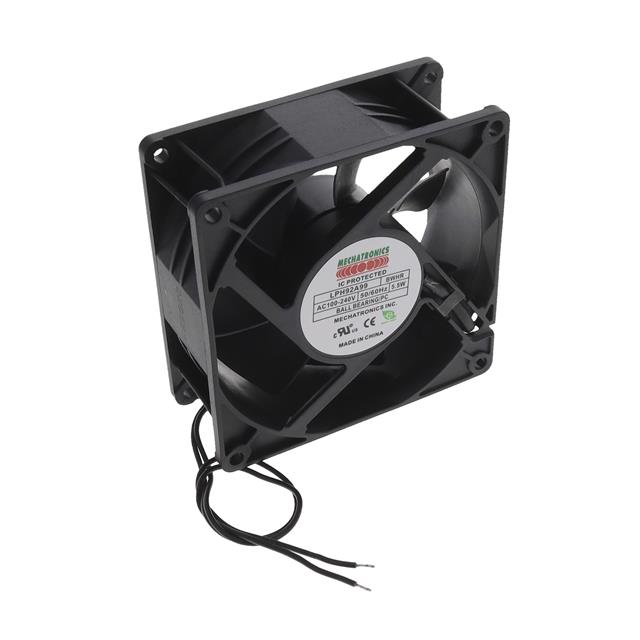

Mechatronics Fan Group LPH92A99-BWHR-PC	110 mA	Plastic	Plastic	90 VAC	264 VAC	IP55 - Dust Protected Water Resistant	5.5 W	Ball	240 VAC	100 VAC	2 Wire Leads	1.9 m³/min	68 CFM	3500 RPM	38 mm	42 dB	174.18 g	0.384 lb	Tubeaxial	Auto Restart Electronic Commutation (EC) Parylene Coating	92 mm	92 mm	72.2 Pa	0.29 in H2O

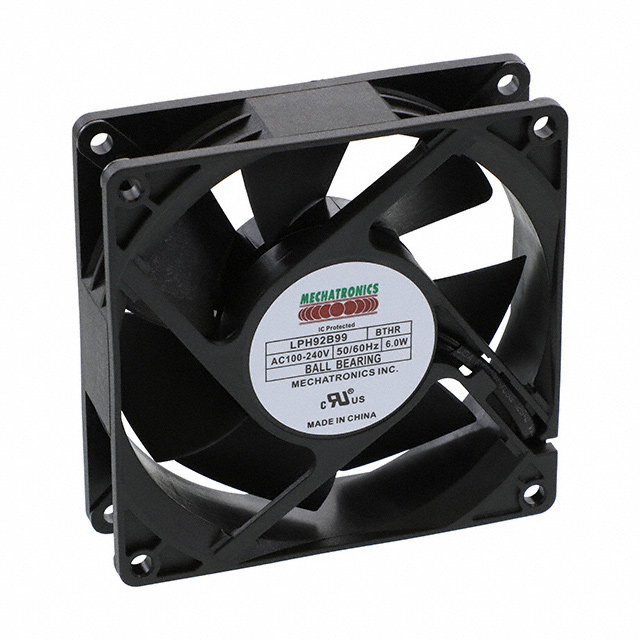

Mechatronics Fan Group LPH92B99-BTHR	60 mA	Plastic	Plastic				6.3 W	Ball	240 VAC	100 VAC		1.57 m³/min	56 CFM	3500 RPM	25.5 mm	44 dB(A)	106.14 g	0.234 lb	Tubeaxial	Auto Restart Electronic Commutation (EC)	92 mm	92 mm	67.3 Pa	0.27 in H2O	CE cUL TUV UL	-40 C	70 °C	70 °C	-40 °C	2

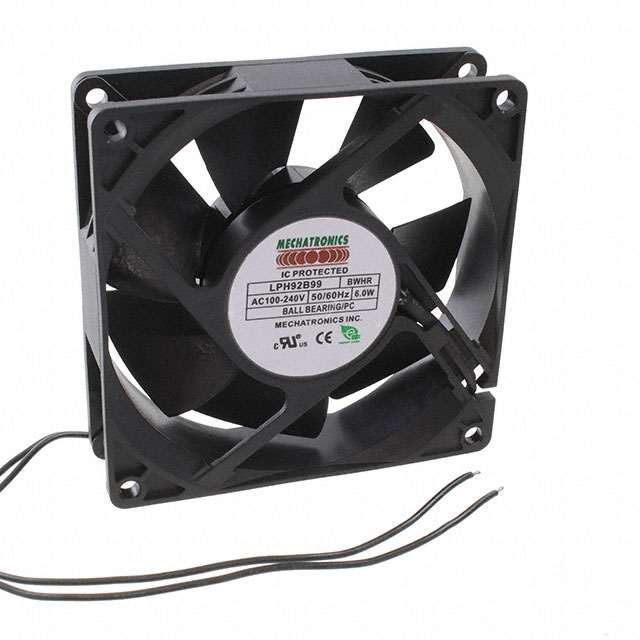

Mechatronics Fan Group LPH92B99-BWHR-PC	60 mA	Plastic	Plastic	90 VAC	264 VAC	IP55 - Dust Protected Water Resistant	6.3 W	Ball	240 VAC	100 VAC	2 Wire Leads	1.57 m³/min	56 CFM	3500 RPM	25.5 mm	44 dB(A)	106.14 g	0.234 lb	Tubeaxial	Auto Restart Electronic Commutation (EC) Parylene Coating	92 mm	92 mm	67.3 Pa	0.27 in H2O
Mechatronics Fan Group LPH92B99-BTMR	50 mA	Plastic	Plastic	90 VAC	264 VAC		3.7 W	Ball	240 VAC	100 VAC		1.29 m³/min	46 CFM	3000 RPM	25.5 mm	38 dB(A)			Tubeaxial	Auto Restart Electronic Commutation (EC)	92 mm	92 mm	44.8 Pa	0.18 in H2O	CE cUL TUV UL	-40 C	70 °C	70 °C	-40 °C	2	50000 Hrs
