317-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

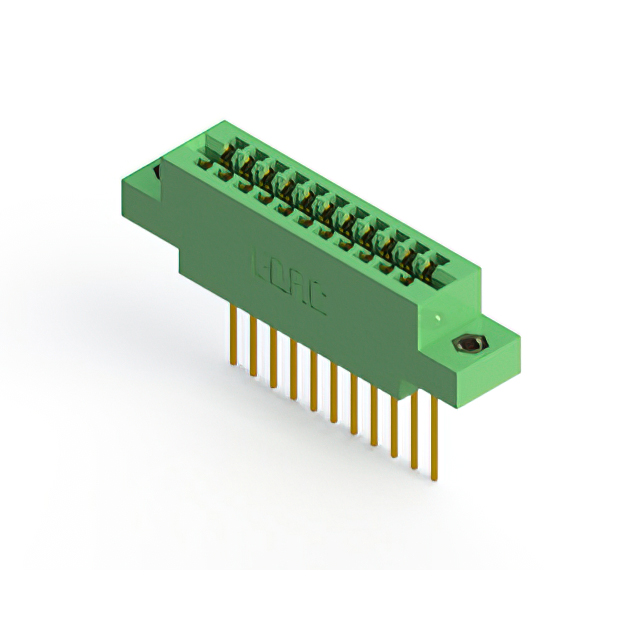

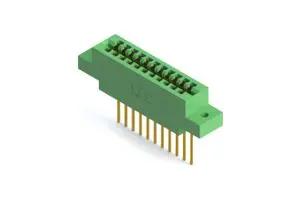

CONN EDGE DUAL FMALE 22POS 0.156
| Part | Material - Insulation | Contact Finish | Read Out | Contact Material | Number of Rows [custom] | Card Type | Contact Type | Number of Positions | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Termination | Flange Feature | Pitch | Pitch | Mounting Type | Number of Positions/Bay/Row | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Single | Copper Alloy | 2 | Non Specified - Dual Edge | Cantilever | 22 | Female | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Wire Wrap | M3 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Through Hole | 11 | Green |
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Single | Copper Alloy | 2 | Non Specified - Dual Edge | Cantilever | 22 | Female | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Wire Wrap | 3.96 mm | 0.156 in | Through Hole | 11 | Green |
