18280-3P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

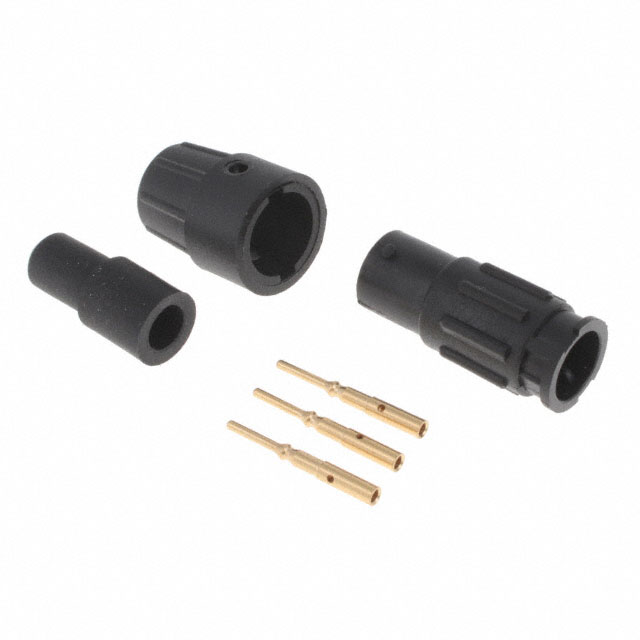

MICRO-CON-X CONNECTOR, CABLE-TO-CABLE, # 20 CRIMP
| Part | Fastening Type | Contact Finish - Mating | Shielding | Voltage Rating | Contact Material | Mounting Type | Material Flammability Rating | Features | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Color | Orientation | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Ingress Protection | Termination | Applications | Backshell Material, Plating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Bayonet Lock | Gold | Unshielded | 600 VAC | Copper Alloy | Free Hanging (In-Line) | UL94 HB | Backshell | 3.81 mm | 0.15 " | 4.32 mm | 0.17 in | Black | Keyed | Receptacle Male Pins | 85 °C | -40 C | 7.5 A | IP67 - Dust Tight Waterproof | Crimp | Data Industrial Instrumentation Medical | Thermoplastic | Plastic |
 SWITCHCRAFT/CONXALL | Bayonet Lock | Gold | Unshielded | 600 VAC | Copper Alloy | Free Hanging (In-Line) | UL94 HB | Backshell | 4.57 mm | 0.18 " | 5.08 mm | 0.2 " | Black | Keyed | Receptacle Male Pins | 85 °C | -40 C | 7.5 A | IP67 - Dust Tight Waterproof | Crimp | Data Industrial Instrumentation Medical | Thermoplastic | Plastic |
