R22308 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

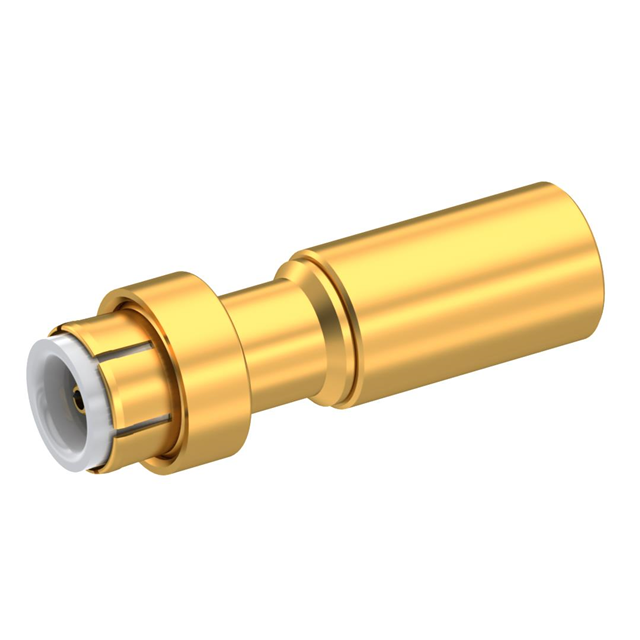

MMBX / STRAIGHT PLUG CRIMP TYPE
| Part | Center Contact Plating | Center Contact Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Voltage Rating | Connector Type | Frequency - Max [Max] | Number of Ports | Contact Termination | Mounting Type | Connector Style | Cable Group | Shield Termination | Fastening Type | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Beryllium Copper Brass | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Brass | Gold | 250 V | Plug Male Pin | 12.4 GHz | 1 | Crimp | Free Hanging (In-Line) | MMBX | RG-316 | Crimp | Snap-On | 50 Ohms | Gold |
