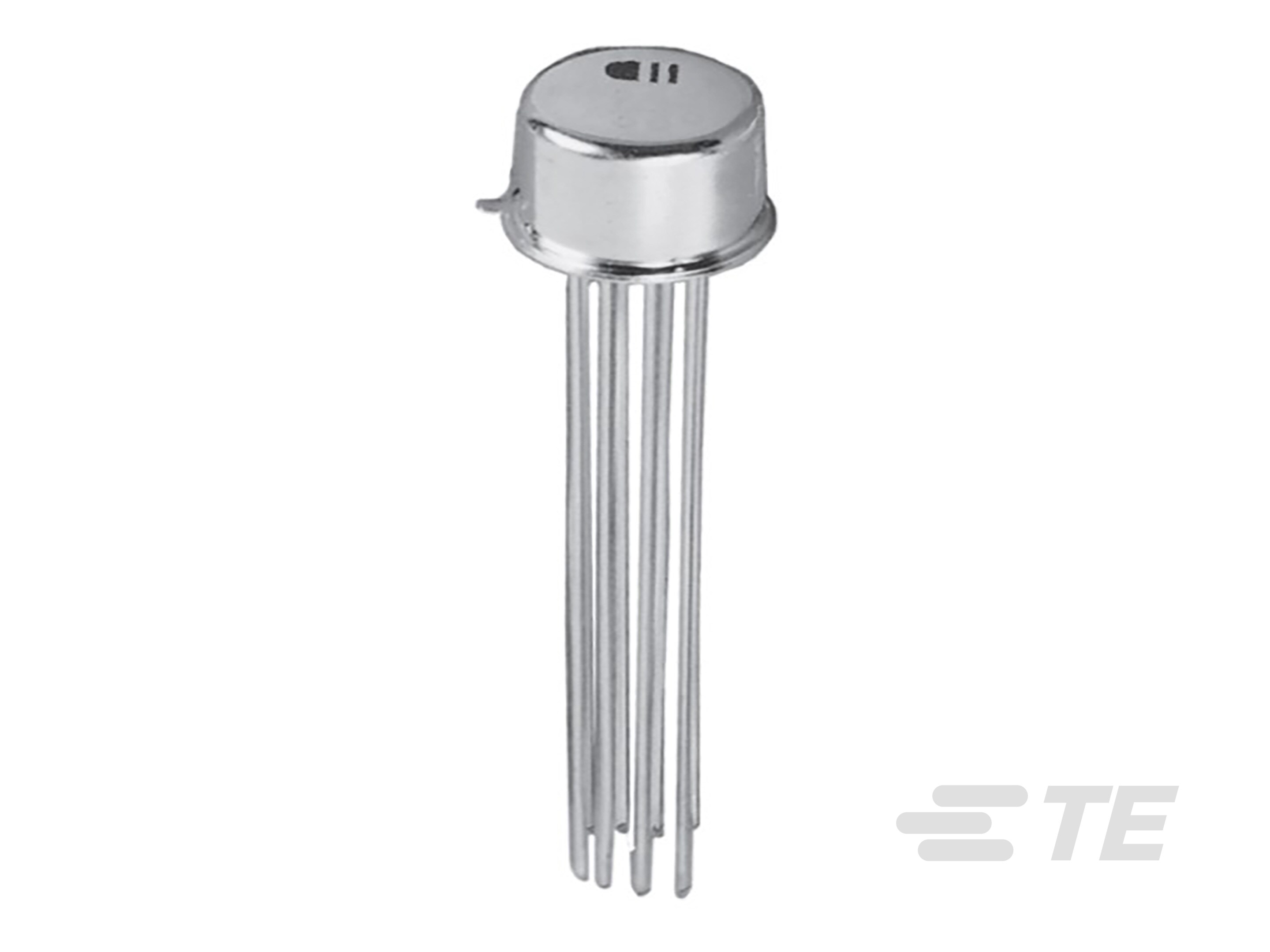

CII HSD Relay Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 5V
| Part | Coil Current | Operate Time | Contact Form | Release Time | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination Style | Seal Rating | Coil Voltage | Contact Rating (Current) | Relay Type | Coil Type | Contact Material | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50 mA | 6 ms | DPDT (2 Form C) | 7.5 ms | 3.5 VDC | -55 C | 85 °C | Through Hole | PC Pin | Sealed - Hermetically | 5 VDC | 1 A | General Purpose | Non Latching | Gold (Au) Silver Palladium (AgPd) | |
TE Connectivity AMP Connectors | 14.1 mA | 6 ms | DPDT (2 Form C) | 7.5 ms | 9 VDC | -55 C | 85 °C | Through Hole | PC Pin | Sealed - Hermetically | 12 VDC | 1 A | General Purpose | Non Latching | Gold (Au) Silver Palladium (AgPd) | 850 Ohms |
