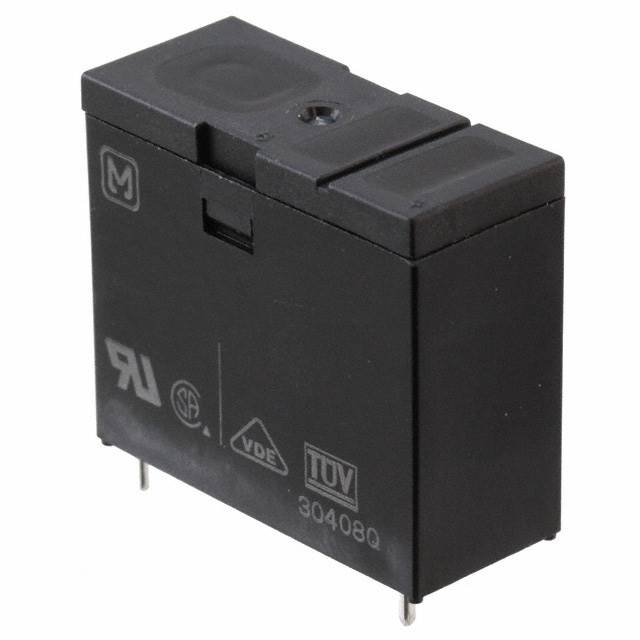

ALE75B Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 48V
| Part | Coil Resistance | Must Release Voltage | Mounting Type | Coil Voltage | Coil Type | Termination Style | Relay Type | Must Operate Voltage | Contact Material | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Load - Max Switching | Operate Time | Coil Insulation | Approval Agency | Switching Voltage [Max] | Contact Rating (Current) | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 11.52 kOhms | 2.4 VDC | Through Hole | 48 VDC | Non Latching | PC Pin | General Purpose | 36 VDC | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 25 ms | 4432 VA | 20 ms | Class B | CSA TUV UR VDE | 277 VAC | 16 A | 4.2 mA |
Panasonic Electronic Components | 180 Ohms | 0.3 VDC | Through Hole | Non Latching | PC Pin | General Purpose | 4.5 VDC | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 25 ms | 4432 VA | 20 ms | Class B | CSA TUV UR VDE | 277 VAC | 16 A | 33.3 mA | |
 Panasonic Electronic Components | ||||||||||||||||||||
Panasonic Electronic Components | 125 Ohms | 0.25 VDC | Through Hole | 5 VDC | Non Latching | PC Pin | General Purpose | 3.75 VDC | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 25 ms | 4432 VA | 20 ms | Class B | CSA TUV UR VDE | 277 VAC | 16 A | 40 mA |
