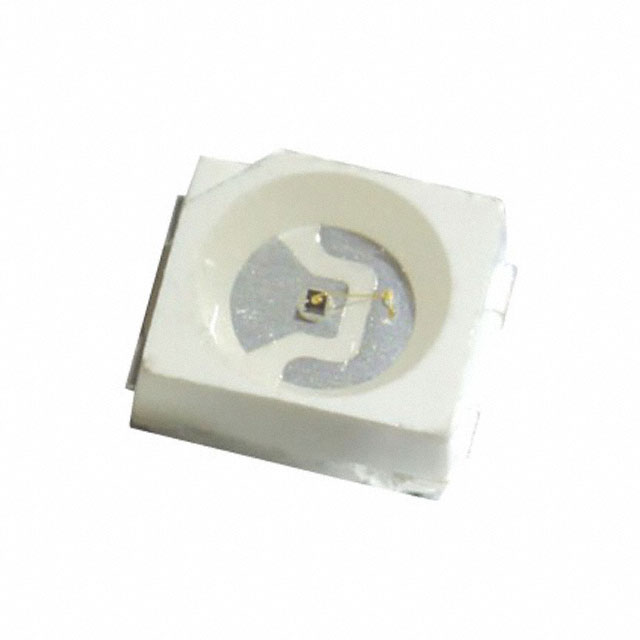

QBLP670 Series

Catalog

LED WARM WHITE CLEAR 2PLCC SMD

Part	Lens Color	Configuration	Lens Transparency	Lens Style	Viewing Angle	Mounting Type	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Wavelength - Dominant	Lens Size [diameter]	Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Height (Max) [Max] [z]	Package / Case	Height (Max) [z]
QT Brightek (QTB) QBLP670D-IW-WW-2897	Colorless	Standard	Clear	Round with Domed Top	30 °	Surface Mount	2.8 V	2-PLCC	3000 K	2.4 mm Dia	20 mA	Warm White	2.8 mm	3.2 mm	7500 mcd	3.8 mm	2-PLCC
QT Brightek (QTB) QBLP670D-IW-CW-2897	Colorless	Standard	Clear	Round with Domed Top	30 °	Surface Mount	2.8 V	2-PLCC	6500 K	2.4 mm Dia	20 mA	Cool White	2.8 mm	3.2 mm	8000 mcd	3.8 mm	2-PLCC

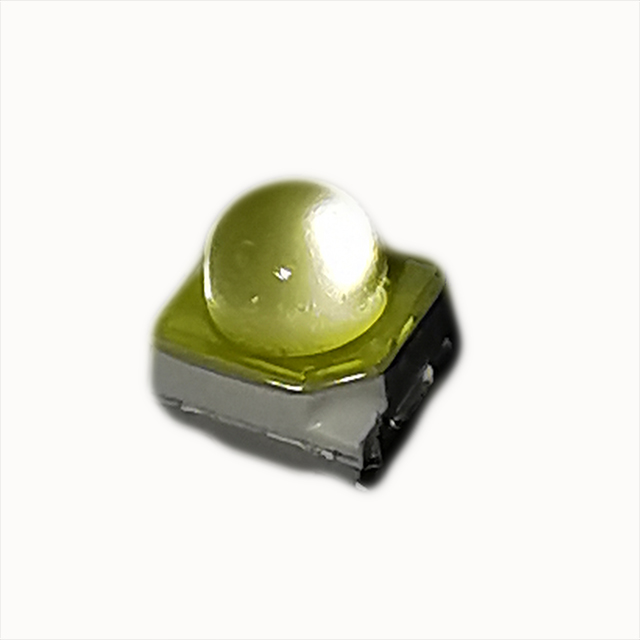

QT Brightek (QTB) QBLP670D-IW-CW	Colorless	Standard	Clear	Round with Domed Top	30 °	Surface Mount	3.1 V	2-PLCC	9000 K	2.4 mm Dia	20 mA	Cool White	2.8 mm	3.2 mm	2600 mcd	3.8 mm	2-PLCC
QT Brightek (QTB) QBLP670-Y	Colorless	Standard	Clear	Round with Flat Top	120 °	Surface Mount	2 V	2-PLCC	590 nm	2.4 mm Dia	20 mA	Yellow	2.8 mm	3.2 mm	210 mcd		2-PLCC	2.1 mm

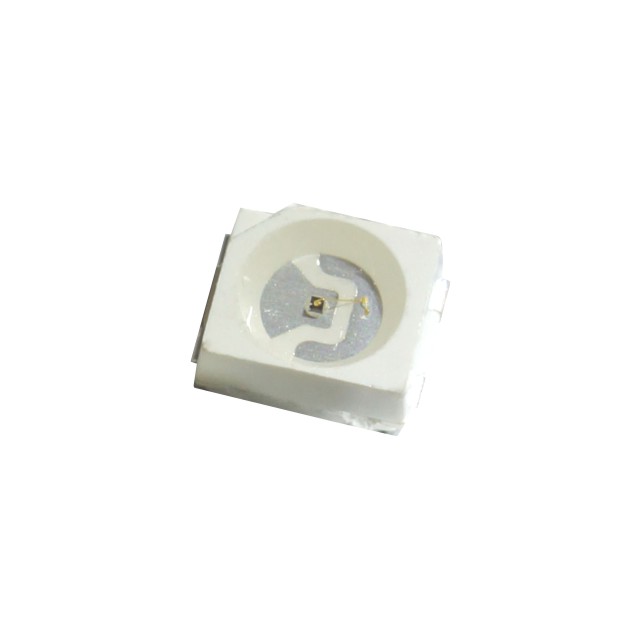

QT Brightek (QTB) QBLP670-IB-2897	Colorless	Standard	Clear	Round with Flat Top	120 °	Surface Mount	3.1 V	2-PLCC	470 nm	2.4 mm Dia	20 mA	Blue	2.8 mm	3.2 mm	300 mcd		2-PLCC	2.1 mm
QT Brightek (QTB) QBLP670-YG1	Colorless	Standard	Clear	Round with Flat Top	120 °	Surface Mount	2.1 V	2-PLCC	570 nm	2.4 mm Dia	20 mA	Green	2.8 mm	3.2 mm	28 mcd		2-PLCC	2.1 mm
QT Brightek (QTB) QBLP670-R-2897	Colorless	Standard	Clear	Round with Flat Top	120 °	Surface Mount	2 V	2-PLCC	620 nm	2.4 mm Dia	20 mA	Red	2.8 mm	3.2 mm	690 mcd		2-PLCC	2.1 mm
QT Brightek (QTB) QBLP670-Y-2897	Colorless	Standard	Clear	Round with Flat Top	120 °	Surface Mount	2 V	2-PLCC	590 nm	2.4 mm Dia	20 mA	Yellow	2.8 mm	3.2 mm	740 mcd		2-PLCC	2.1 mm
QT Brightek (QTB) QBLP670-AG1	Colorless	Standard	Clear	Round with Flat Top	120 °	Surface Mount	2 V	2-PLCC	569 nm	2.4 mm Dia	20 mA	Green	2.8 mm	3.2 mm	85 mcd		2-PLCC	2.1 mm
QT Brightek (QTB) QBLP670-IG-2897	Colorless	Standard	Clear	Round with Flat Top	120 °	Surface Mount	3.3 V	2-PLCC	525 nm	2.4 mm Dia	20 mA	Green	2.8 mm	3.2 mm	1400 mcd		2-PLCC	2.1 mm
