1534798 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

STANDARD CARD EDGE CONNECTORS AMP DUOPLUG MK2 CONN ECTOR 5P SELECTIVE

Part	Connector Type	Number of Rows	Contact Type	Features	Wire Type	Contact Finish	Mounting Type	Number of Positions	Color	Wire Gauge [Max]	Wire Gauge [Min]	Pitch	Pitch	Cable Termination

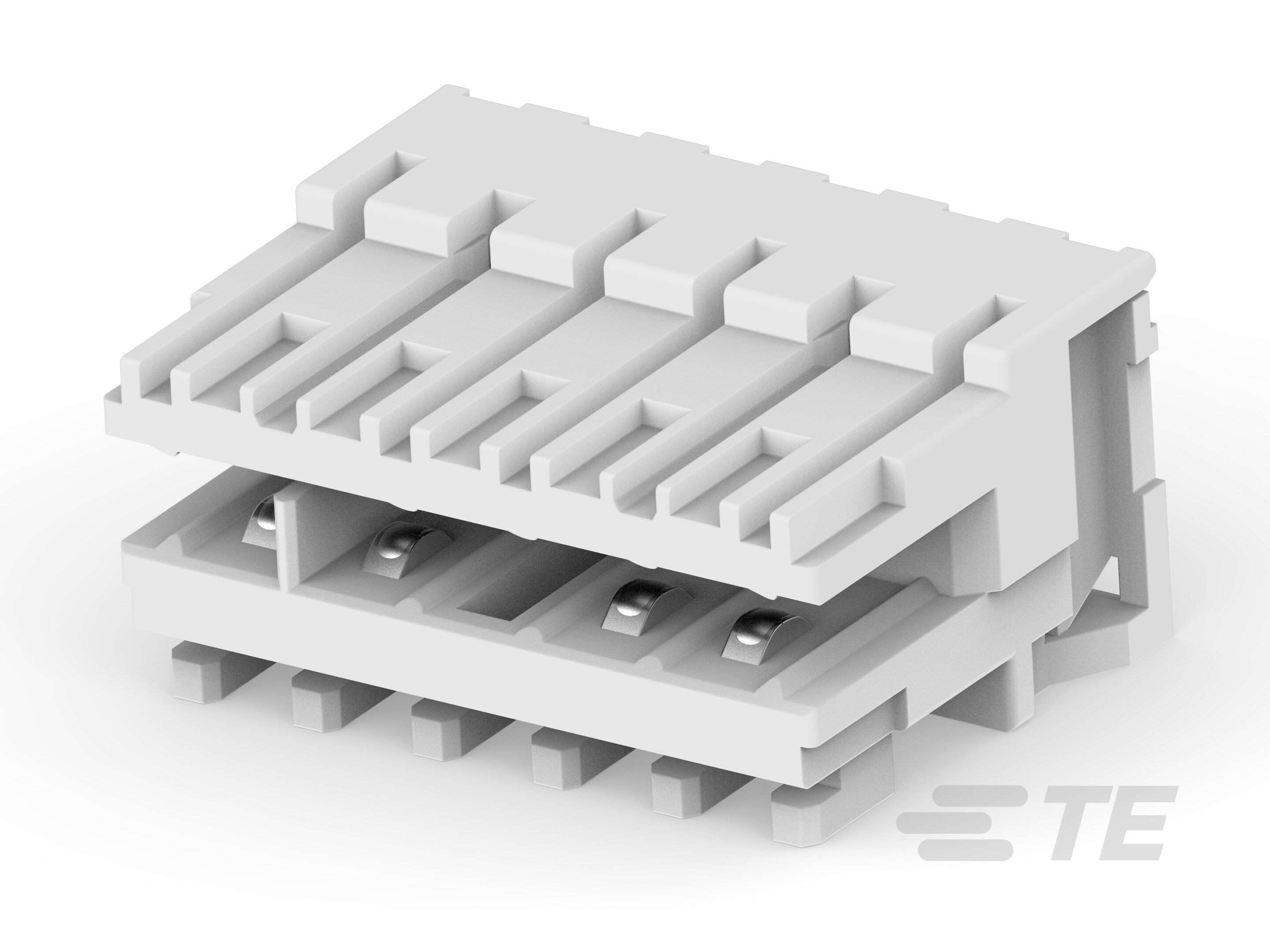

TE Connectivity AMP Connectors 9-1534798-5	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle	5	Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC
TE Connectivity AMP Connectors 6-1534798-8	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle	8	Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC

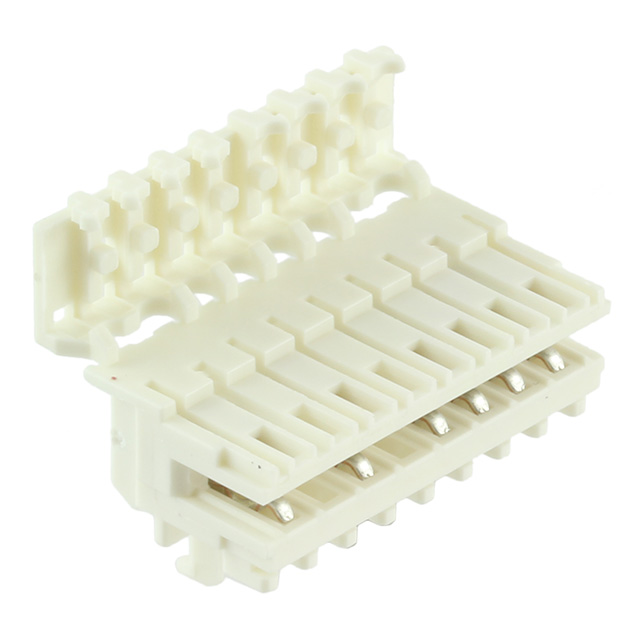

TE Connectivity AMP Connectors 5-1534798-8	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle	8	Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC
TE Connectivity AMP Connectors 1-1534798-3	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle		Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC

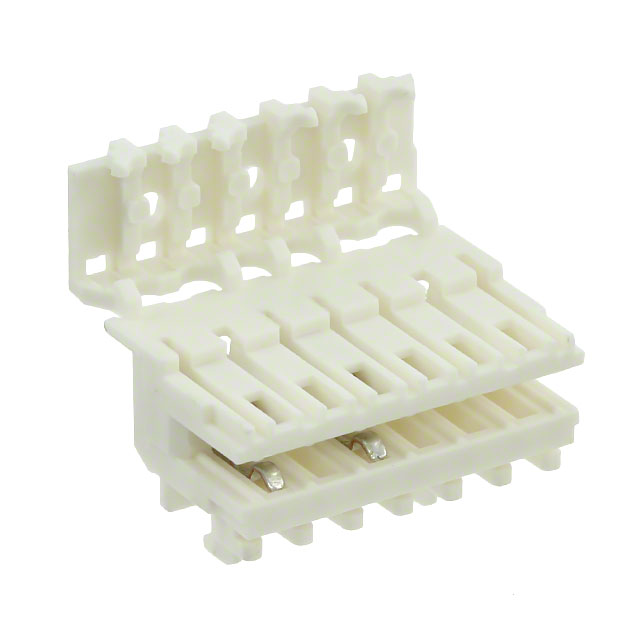

TE Connectivity AMP Connectors 4-1534798-6	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle	6	Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC

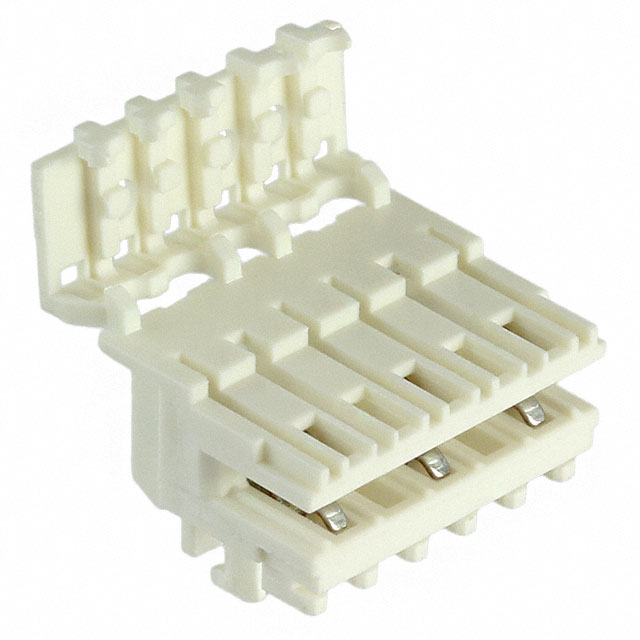

TE Connectivity AMP Connectors 3-1534798-5	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle	5	Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC

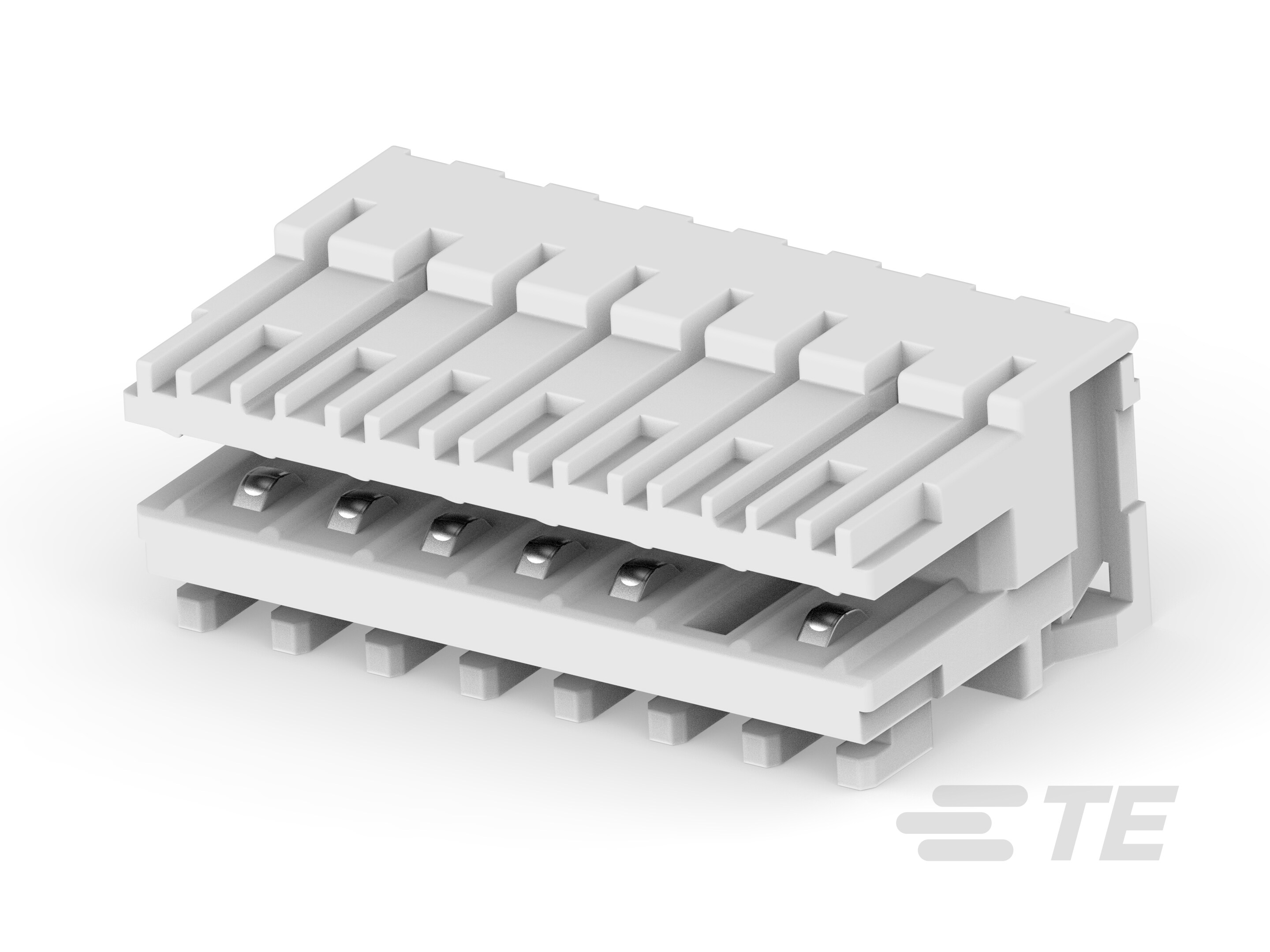

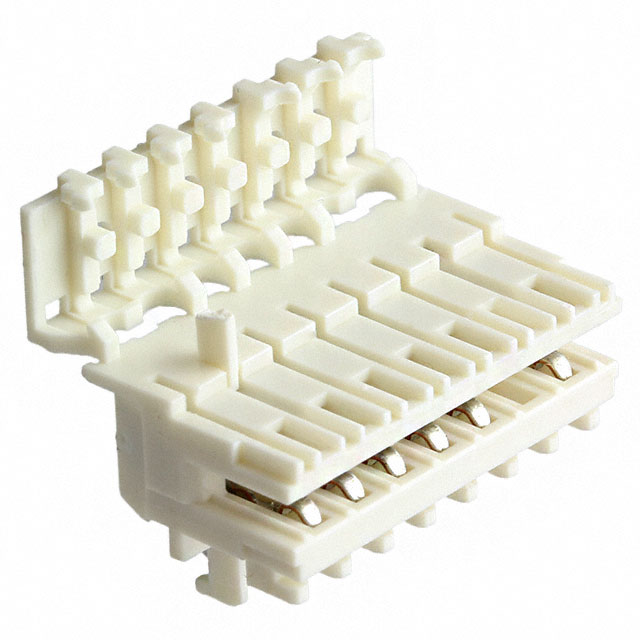

TE Connectivity AMP Connectors 4-1534798-7	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle	7	Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC

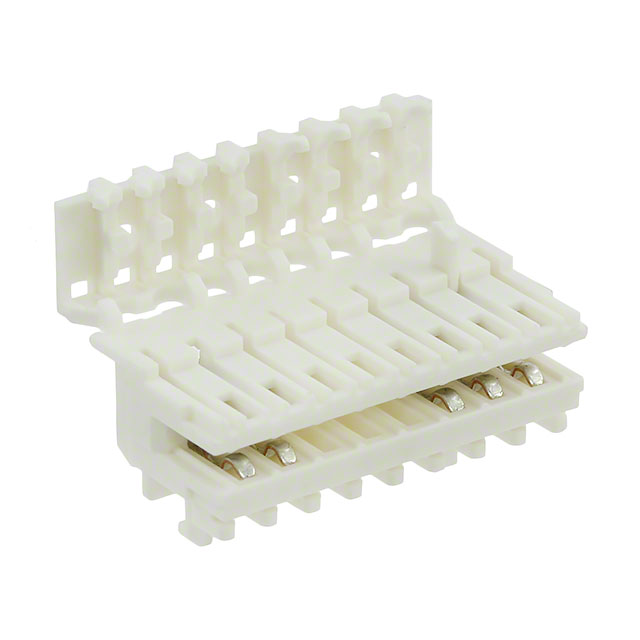

TE Connectivity AMP Connectors 3-1534798-8	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle	8	Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC

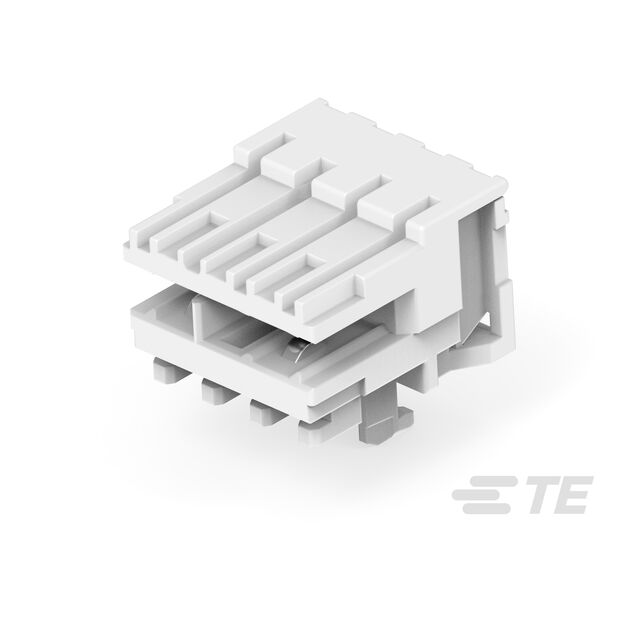

TE Connectivity AMP Connectors 9-1534798-3	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle		Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC
TE Connectivity AMP Connectors 6-1534798-3	Receptacle	1	Female Blade Socket	Mates to PCB	Discrete	Tin	Free Hanging (In-Line) Right Angle		Natural	24 AWG	22 AWG	2.5 mm	0.098 in	IDC
