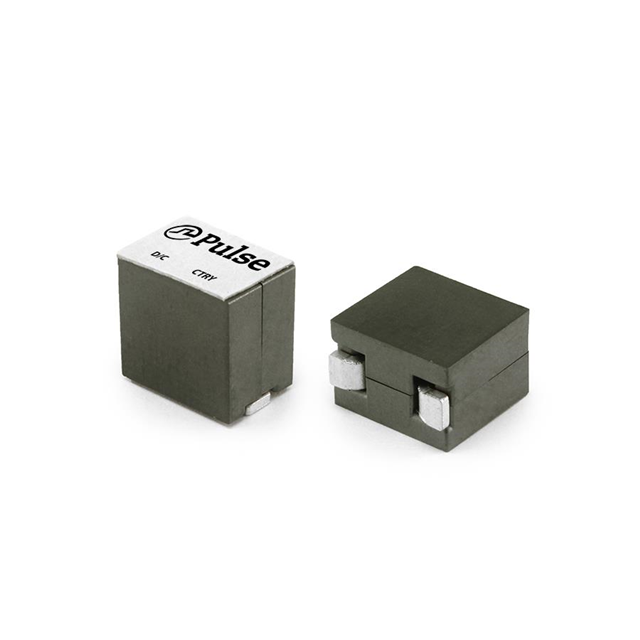

PG1712 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD 175NH 44A 9.3MM SMT DCR=.0.17MOHM +/-5%
| Part | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Shielding | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Package / Case | Current Rating (Amps) | Inductance | Inductance Frequency - Test | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 44 A | 10.8 mm | 8.2 mm | 0.425 in | 0.323 in | Unshielded | 0.17 mOhm | 130 °C | -40 C | 0.323 in | 8.2 mm | Surface Mount | Nonstandard | 50 A | 330 nH | 100 kHz | 10 % |
