PA18CAD04 Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K

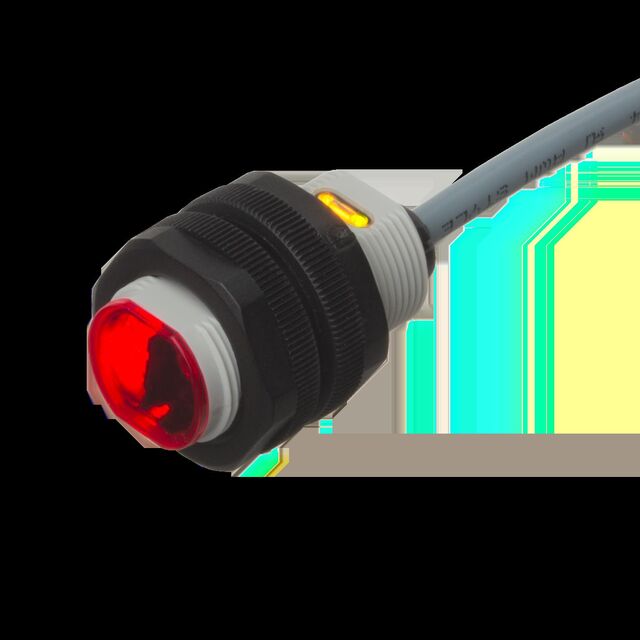

SENSOR REFLECTIVE 400MM PNP
| Part | Light Source | Sensing Distance | Sensing Distance | Output Configuration | Sensing Method | Ingress Protection | Connection Method | Response Time | Adjustment Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | Red (625nm) | 40 cm | 15.748 in | PNP | Reflective | IP67 IP69K | Cable | 1 ms | Adjustable Potentiometer | -25 °C | 60 °C | 10 VDC | 30 VDC | 78.74 " | 2 m |
