761K Series

Catalog

DC POWER CONNECTOR, HIGH TEMP, LOCKING, PLUG, 3 A, 12 MM, CABLE MOUNT, SOLDER

Part	Includes	Body Material	Contact Material - Plating	Housing Material	Contact Material	Body Color	Shielding	Voltage - Rated	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Gender	Ingress Protection	Connector Type	Current Rating (Amps)	Features	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Insulation Color	Termination	Mounting Type

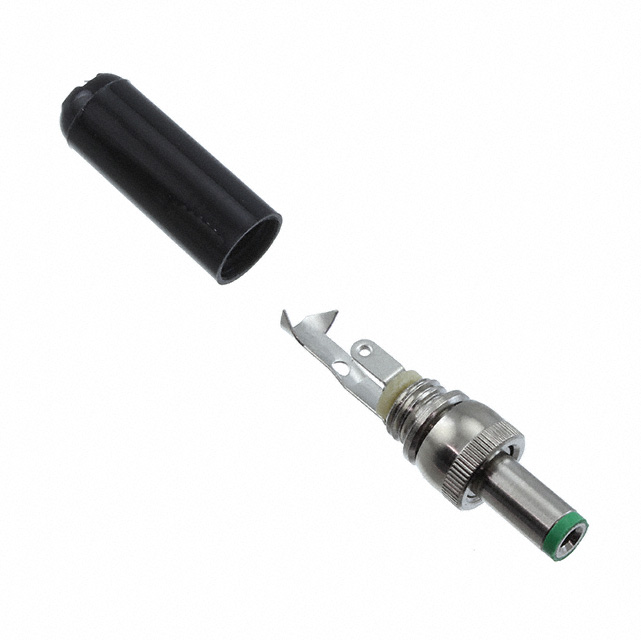

SWITCHCRAFT/CONXALL 761KH
SWITCHCRAFT/CONXALL 761KS17	1 Connector 1 Handle	Copper Alloy	Tin	Thermoplastic	Copper Alloy	Black Silver	Unshielded	30 V	2	2	2.5 mm 5.5 mm	0.098 in 0.217 in	Female	IP68	Plug	5 A	Cable Clamp Thread Lock	0.217 in	2.5 mm	5.5 mm	0.098 in	Black	Solder Eyelet(s)	Free Hanging (In-Line)

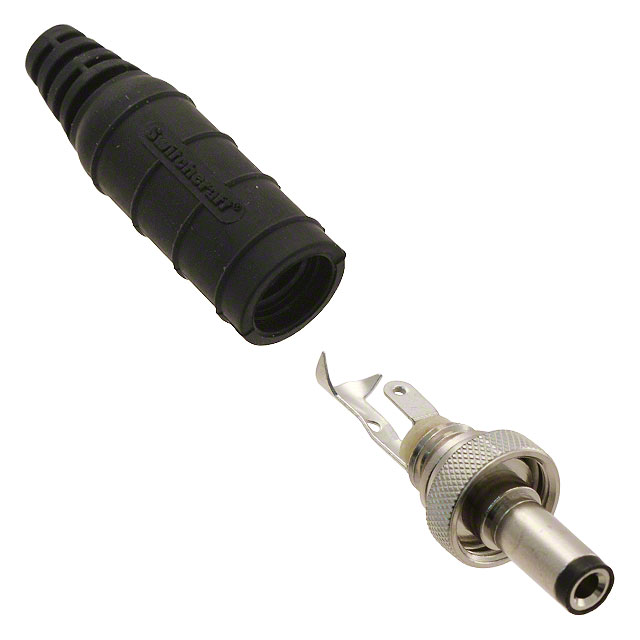

SWITCHCRAFT/CONXALL 761KS15	1 Connector 1 Handle	Copper Alloy	Tin	Thermoplastic	Copper Alloy	Black Silver	Unshielded	30 V	2	2	2.5 mm 5.5 mm	0.098 in 0.217 in	Female	IP68	Plug	5 A	Cable Clamp Thread Lock	0.217 in	2.5 mm	5.5 mm	0.098 in	Black	Solder Eyelet(s)	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 761KS12	1 Connector 1 Handle	Copper Alloy	Tin	Thermoplastic	Copper Alloy	Black Silver	Unshielded	30 V	2	2	2.5 mm 5.5 mm	0.098 in 0.217 in	Female	IP68	Plug	5 A	Cable Clamp Thread Lock	0.217 in	2.5 mm	5.5 mm	0.098 in	Black	Solder Eyelet(s)	Free Hanging (In-Line)
