770970 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

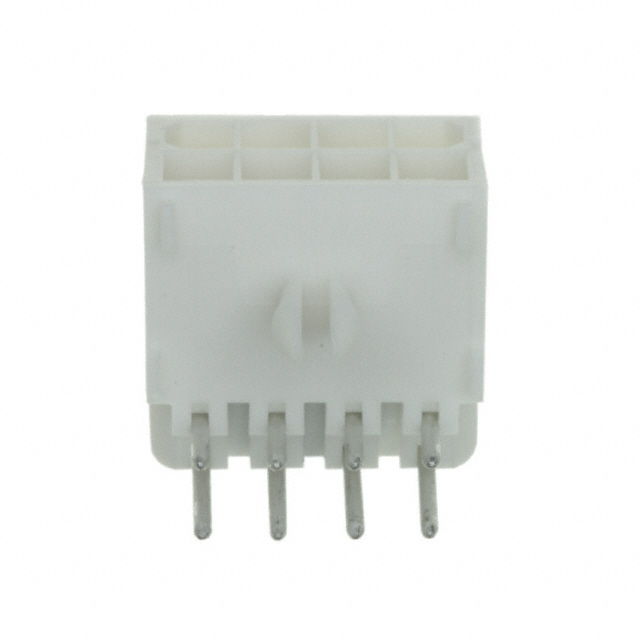

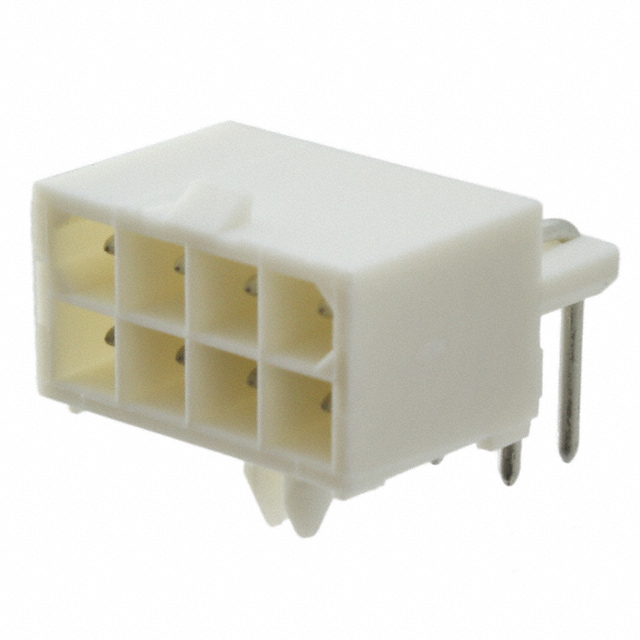

CONN HEADER R/A 8POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Type | Mounting Type | Number of Positions | Insulation Material | Contact Length - Post | Contact Length - Post | Contact Material | Contact Shape | Number of Rows [custom] | Features | Shrouding | Number of Positions Loaded | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Contact Finish - Mating | Connector Type | Fastening Type | Current Rating (Amps) | Termination | Voltage Rating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 150 Áin | 3.81 Ám | Tin-Lead | 85 °C | -20 ░C | UL94 V-0 | White | 0.163 in | 4.14 mm | Male Pin | Right Angle Through Hole | 8 | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | Brass | Circular | 2 | Board Lock | Shrouded - 4 Wall | All | 4.14 mm | 0.163 in | Board to Cable/Wire | Tin-Lead | Header | Locking Ramp | Varies by Wire Gauge | Solder | 600 VAC | 9.8 mm | 0.386 in |
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 30 Áin | 0.76 Ám | Tin-Lead | 105 ░C | -20 ░C | UL94 V-0 | White | 0.163 in | 4.14 mm | Male Pin | Right Angle Through Hole | 8 | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | Brass | Circular | 2 | Board Lock | Shrouded - 4 Wall | All | 4.14 mm | 0.163 in | Board to Cable/Wire | Gold | Header | Locking Ramp | Varies by Wire Gauge | Solder | 600 VAC | 9.8 mm | 0.386 in |
