ICD26S13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

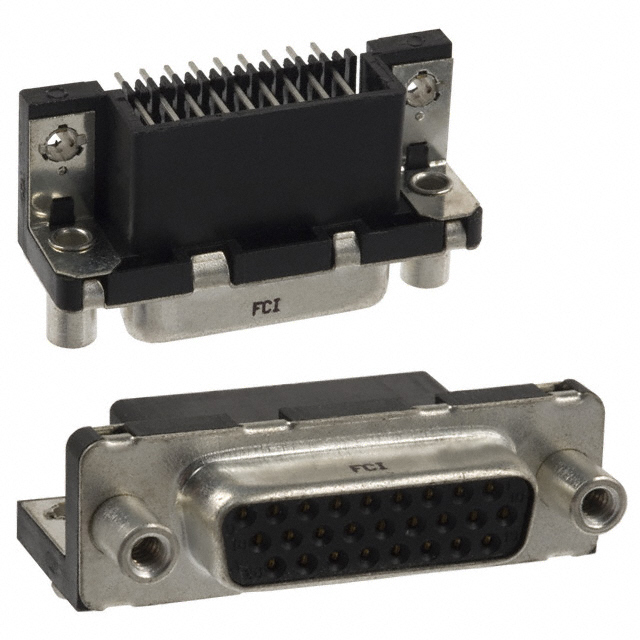

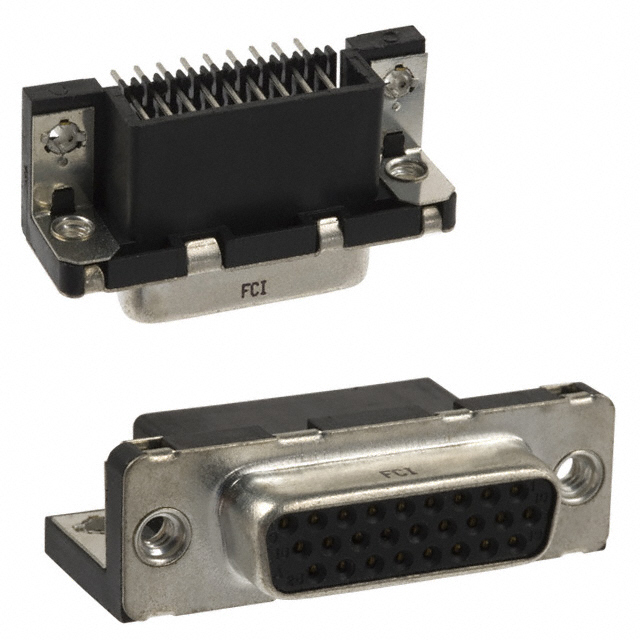

CONN D-SUB HD RCPT 26P R/A SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Color | Flange Feature | Features | Connector Style | Current Rating (Amps) | Number of Positions | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Termination | Shell Material, Finish | Material Flammability Rating | Contact Finish | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Number of Rows [custom] | Backset Spacing | Backset Spacing | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | -55 C | 125 °C | Polyester | 300 VDC | Black | 4-40 Mating Side Female Screwlock | Board Lock Mounting Brackets | D-Sub High Density | 3 A | 26 | Signal | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Solder | Nickel Plated Steel | UL94 V-0 | Gold | Right Angle Through Hole | 2 | DA A | 3 | 8.89 mm | 0.35 in | ||
 Amphenol ICC (FCI) | Copper Alloy | -55 C | 125 °C | Polyester | 300 VDC | Black | Housing/Shell (M3) | Board Lock Mounting Brackets | D-Sub High Density | 3 A | 26 | Signal | Receptacle Female Sockets | Solder | Nickel Plated Steel | UL94 V-0 | Gold | Right Angle Through Hole | 2 | DA A | 3 | 8.89 mm | 0.35 in | Flash | |||
 Amphenol ICC (FCI) | Copper Alloy | -55 C | 125 °C | Polyester | 300 VDC | Black | 4-40 Mating Side Female Screwlock | Board Lock Mounting Brackets | D-Sub High Density | 3 A | 26 | Signal | Receptacle Female Sockets | Solder | Nickel Plated Steel | UL94 V-0 | Gold | Right Angle Through Hole | 2 | DA A | 3 | 8.89 mm | 0.35 in | Flash | |||
 Amphenol ICC (FCI) | Copper Alloy | -55 C | 125 °C | Polyester | 300 VDC | Black | Housing/Shell | Board Lock Mounting Brackets | D-Sub High Density | 3 A | 26 | Signal | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Solder | Nickel Plated Steel | UL94 V-0 | Gold | Right Angle Through Hole | 2 | DA A | 3 | 8.89 mm | 0.35 in | 4-40 | |
Amphenol ICC (FCI) | Copper Alloy | -55 C | 125 °C | Thermoplastic | 300 VDC | Housing/Shell | Board Lock Mounting Brackets | D-Sub High Density | 2.5 A | 26 | Signal | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Solder | Nickel Plated Steel | UL94 V-0 | Gold | Right Angle Through Hole | 2 | DA A | 3 | 8.89 mm | 0.35 in | 4-40 | ||
Amphenol ICC (FCI) | Copper Alloy | -55 C | 125 °C | Polyester | 300 VDC | Black | Housing/Shell (M3) | Board Lock Mounting Brackets | D-Sub High Density | 3 A | 26 | Signal | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Solder | Nickel Plated Steel | UL94 V-0 | Gold | Right Angle Through Hole | 2 | DA A | 3 | 8.89 mm | 0.35 in |
